74
4
1
2
17
15
10
6
5
9
7
8
5
13
11
12
B_03932
3
14
16
A
B
OPERATING MANUAL
VERSION 02/2013 ORDER NUMBER DOC 2333548

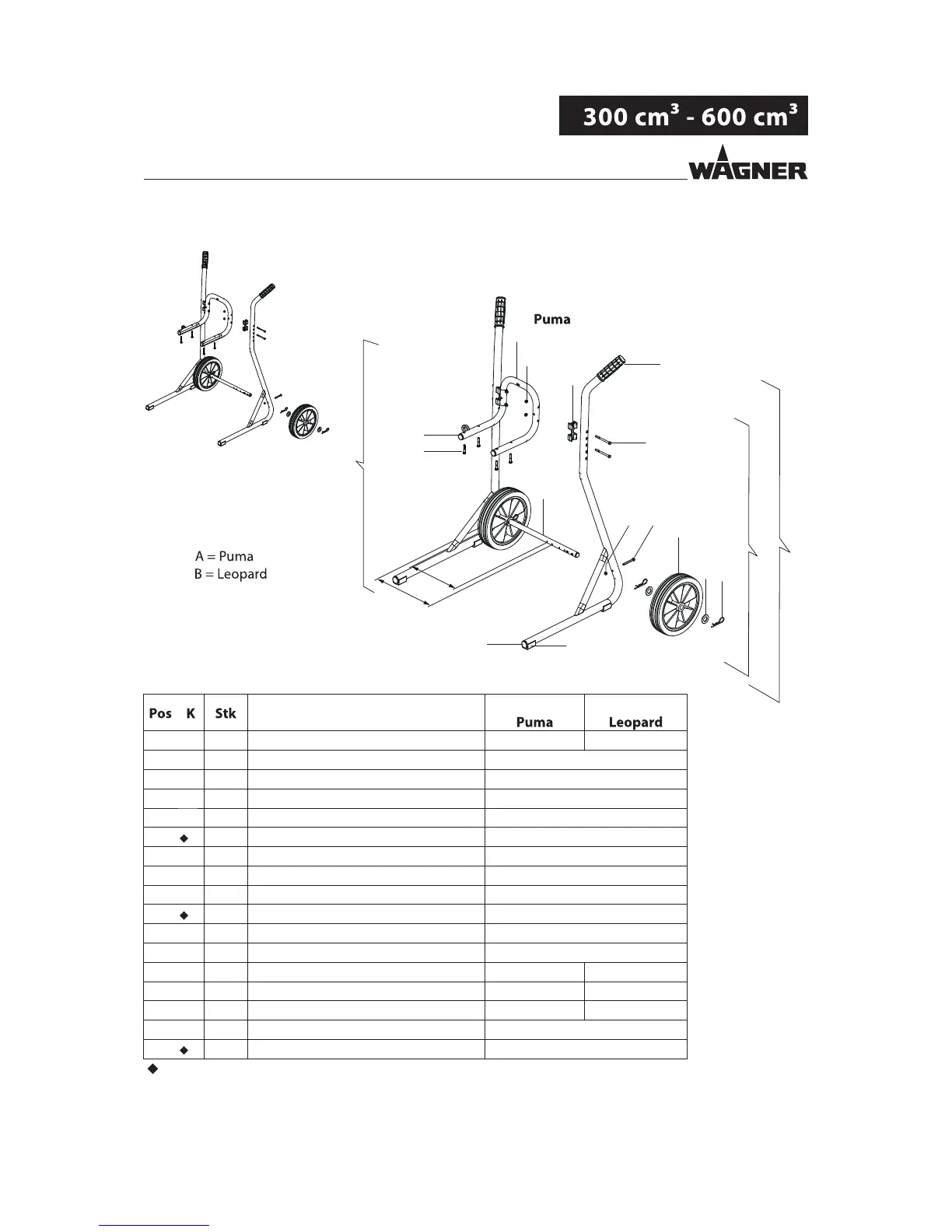

11.7 TROLLEY
Distance
Designation
Order No. for Order No. for
1 1 Trolley, complete 2325901 2325916
2 1 Stand, left, 4"-6" (welded) --
3 1 Stand, right, 4"-6" (welded) --
4 4 Hexagon screw DIN931 M6x75 9907140
5 6 Self-locking hexagon nut, M6 9910204
6
2 Wheel, D250 2304440
7 4 Washer 340372
8 4 Cotter pin 9995302
9 1 Wheel axle 4"-6" --
10
2 Connecting part 4"-6" 367943
11 2 Tube plug, ribbed --
12 2 Saddle feet for round tubes --
13 2 Plug -- --
14 4 Hexagon bolt 9900218 9900126
15 1 Wall mount 2332143 2332145
16 2 Hexagon screw without shaft M6x55 3061695
17
2 Handle 9998747
= Wearing part
Leopard
