OPERATING MANUAL
VERSION 02/2013 ORDER NUMBER DOC 2333548

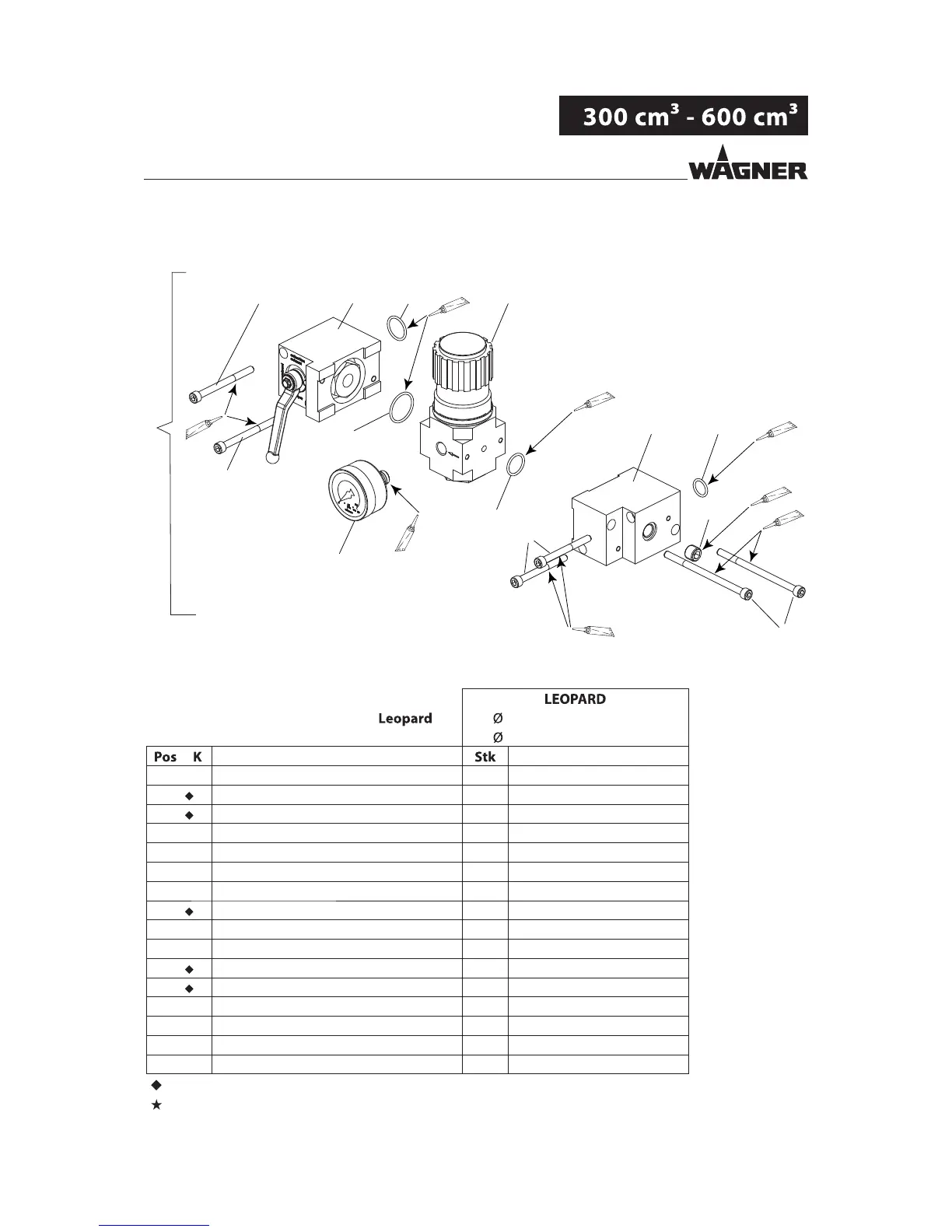

11.3.3 LEOPARD AIR MOTOR REGULATOR
Air motor regulator spare parts list 150 mm / stroke 150 mm
6 inches / stroke 6 inches
Designation Order No.
1 Pressure regulator unit, 6", complete 1 2328607
2 Pressure regulator valve 6" 1 2309973
3 Pressure gauge 0-10 bar (d50) 1 9998725
4 Distribution piece, 6" 1 2309783
5 Hexagon socket head screw 2 3050699
6 Hexagon socket head screw 2 9907024
7 Hexagon socket head screw 2 9906020
8 O-ring 1 9974166
9 O-ring 1 9971018
10 O-ring 1 3105540
11
O-ring 1 9971137
12 Edge ball valve, 6" 1 2310636
13 Screw plug 1 9904407
14 Loctite 542 1 9992831
15 Molykote DX grease 1 9992616
16 Grease beacon 1 9998808
= Wearing part
= Included in service set
