SizePipe connections:
OD15HT-water air vent from CAC416
DN150LT-water inlet451
DN150LT-water outlet452
OD15LT-water air vent from air cooler454
DN150LT-water from stand-by pump457
LT-water air vent483

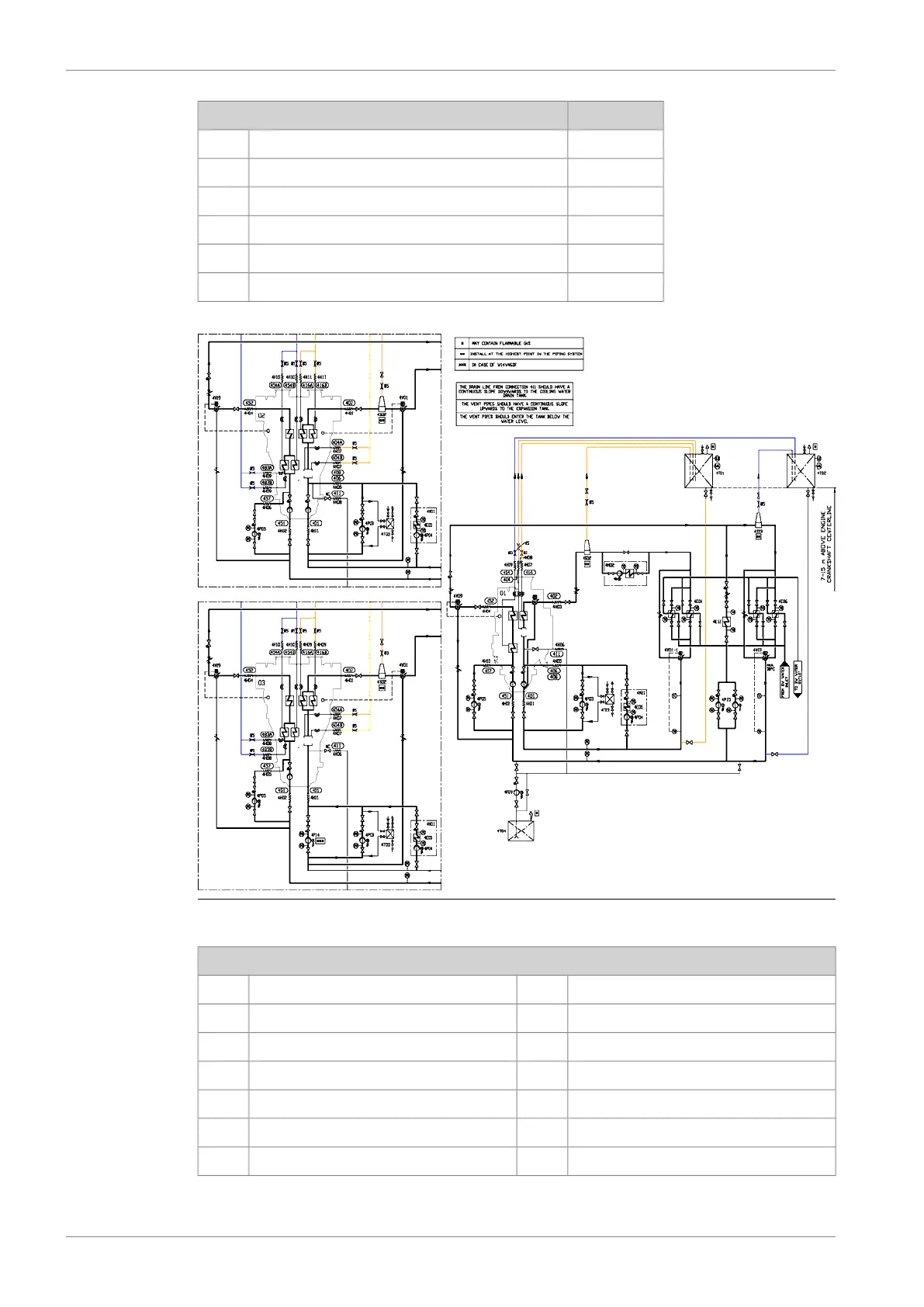

Fig 9-7 Cooling water system, single main engine separeted LT/HT (DAAF418509)
System components:
Air dearator (HT)4S02Raw water cooler (HT)4E04
Air dearator (LT)4S03Heater (preheater)4E05
Expansion tank (HT)4T01Raw water cooler (LT)4E06
Expansion tank (LT)4T02Cooler (Installation parts)4E12
Additive dosing tank4T03Preheating unit4N01
Drain tank4T04Evaporator unit4N02
Temperature control valve (HT)4V01Stand-by pump (HT)4P03
9-10 DBAD209883
Wärtsilä 46DF Product Guide9. Cooling Water System
