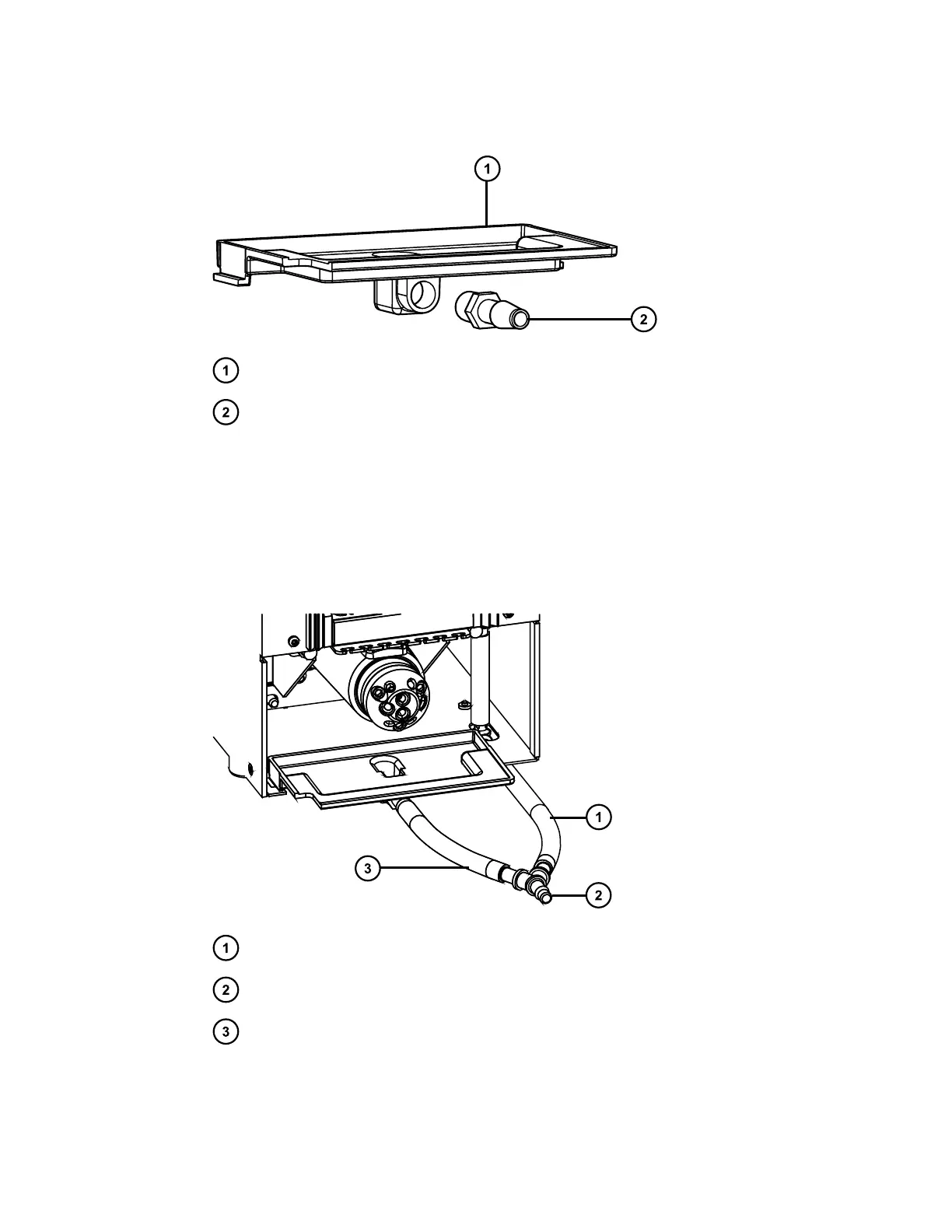

Figure 2–10: Drip tray assembly
Drip tray
Barbed fitting
2. Install the drip tray into the compartment base, below the valve (if present), so that proper
gravity-fed drainage is enabled from the bottom of the compartment.
3. Ensure that sufficient clearance exists between the drip-tray fitting and the laboratory
benchtop, to allow connection of the drain tubing.
4. Locate the condensation drain fitting, below the bottom of the compartment.
Figure 2–11: Drain setup for 30-cm CHC column compartment using Y-connector
Condensation drain tubing
Y-connector for consolidating both condensation and drip tray flows
Drip tray drain tubing
5. Make the tubing connections to the Y-connector for the condensation drain and the drip
tray as follows.
