1.1 Major components
The following representations show the major components of a 30-cm CH or 30-cm CHC module
fitted with the optional column-selection valve kit.

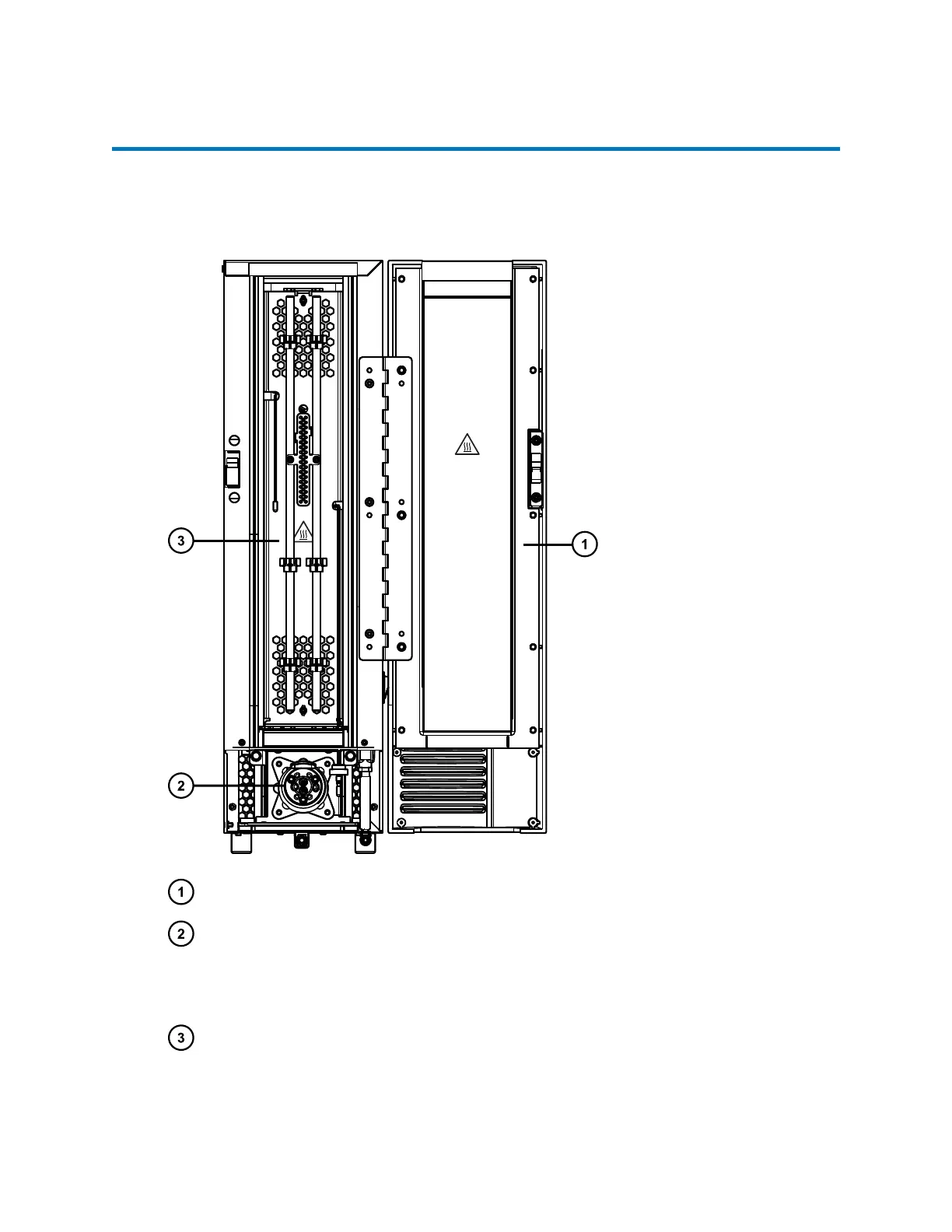

Figure 1–2: Front view with door open
Column-compartment door
Optional 3-position column-selection valve
Note: A bio-compatible column-selection valve is available for 30-cm CH and 30-cm CHC
modules installed in Bio systems.
Column-compartment interior
