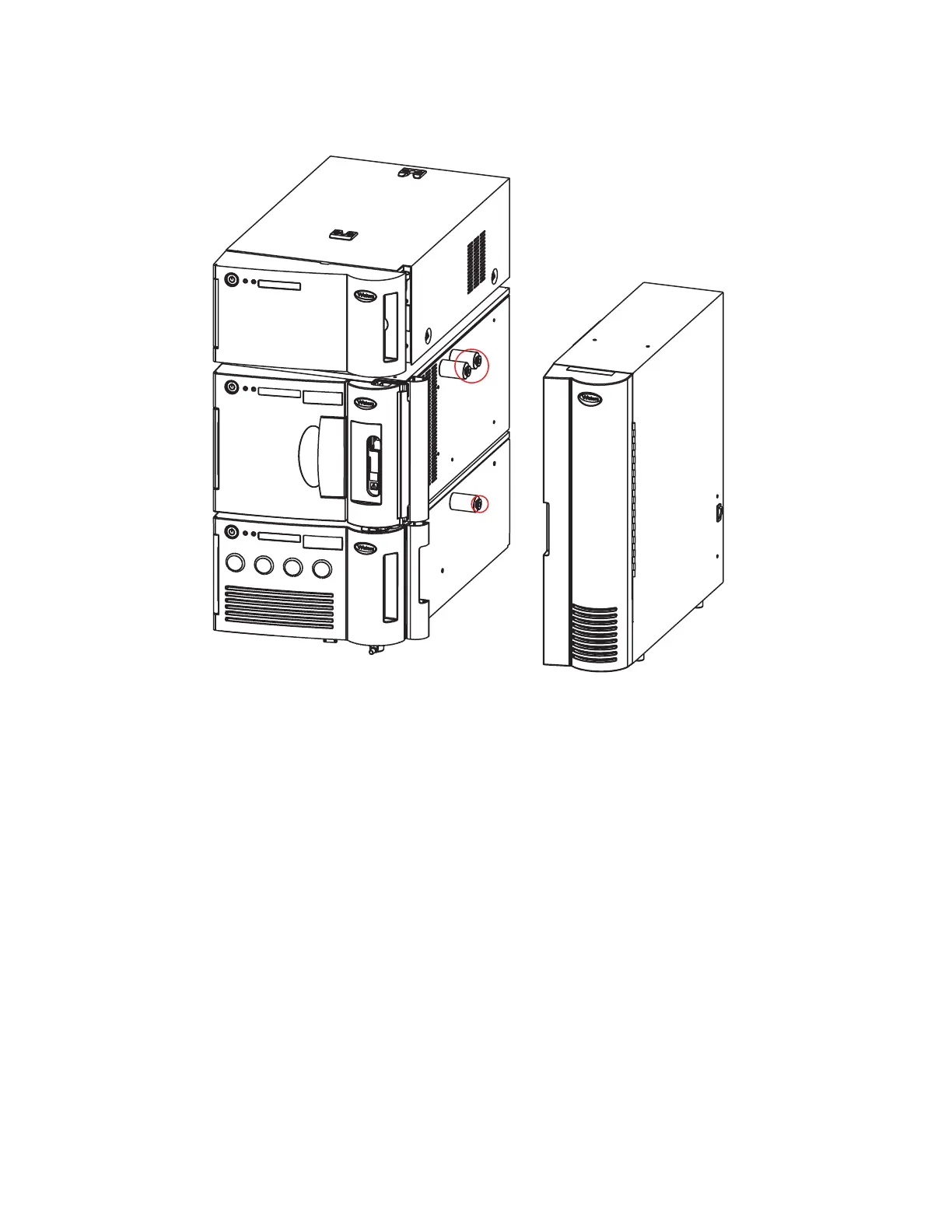

Figure 2–6: Corresponding three, standoffs on system stack
2. Carefully lower the 30-cm CH or 30-cm CHC module with adaptor bracket onto the
standoffs until the bracket is fully engaged in all three slots.
3. Verify that the 30-cm CH or 30-cm CHC module is firmly secured to the system stack and
resting on the bench or table surface next to the stack.
Tip: To remove the module, lift it slightly, releasing it from the standoffs, and then move it
away from the system stack.
2.1.4
Installing the drip tray and waste tubing for a 30-cm CH module
A drip tray is provided to collect any leakage from the column compartment.
Tools and materials
• 7/16-inch open-end wrench
• Tubing cutter
• Drip tray
December 5, 2017, 715004751 Rev. C
Page 26
