Column
Column outlet
2. Align a second clip with the area just above the compression-screw head at the bottom of
the column.
3. Using your fingers, press the top and bottom of the column into the clips until the column
locks into place.
2.5.5
Routing column-compartment tubing
Tubing retainers are provided along the top and the bottom of the column compartment, to hold
the tubing in place. The use of these retainers is highly recommended, particularly for
configurations equipped with a column-selection valve.

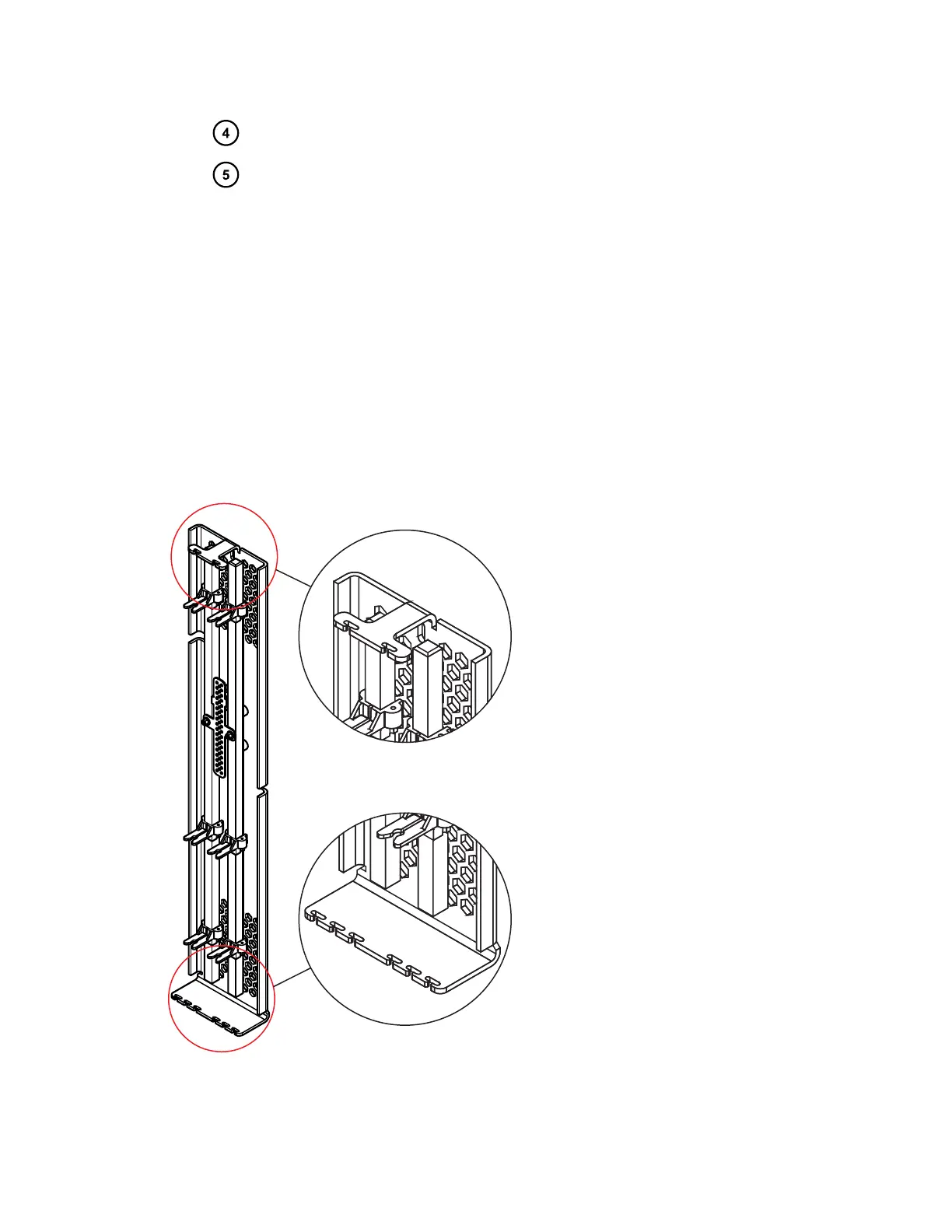

Figure 2–24: Top and bottom tubing retainers
The column compartment functions properly only when the door is properly closed. The sides and
top edges of the door gasket and hinge assembly are designed to allow the passage of tubing
December 5, 2017, 715004751 Rev. C
Page 52
