Passive preheater
Column inlet
Sample-manager injection valve outlet to union tubing

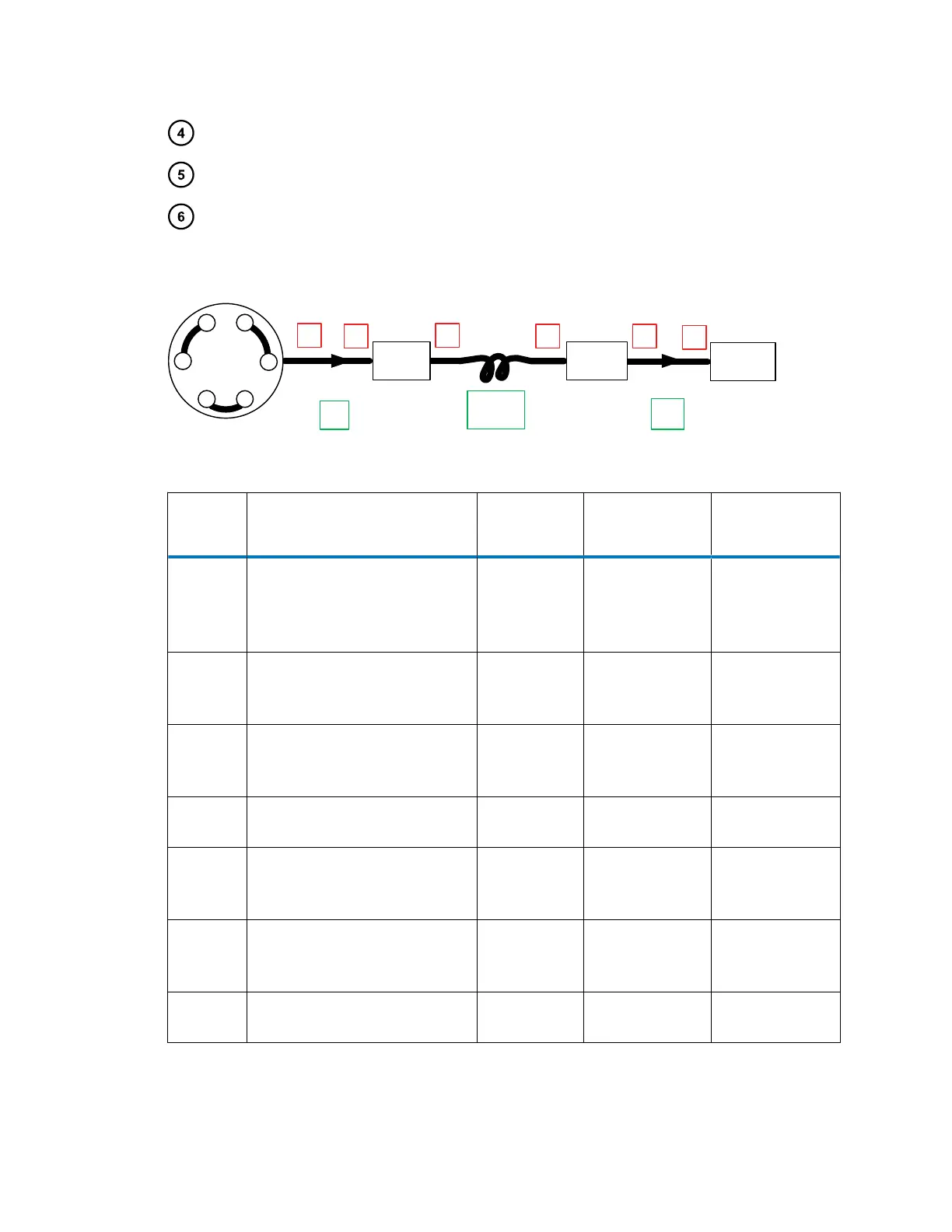

Figure 2–20: Connection diagram for standard configuration with passive preheater
F1
PPH
Union
F1
F1
F2
T1
F3
F3
T2
Column
Detector
1
2
3
54
6
Injection
valve
Sample manager
Table 2–1: Legend
Identifier Description Length ACQUITY Arc
material
ACQUITY Arc
Bio material
T1 Pre-configured tubing assembly
that connects the sample
manager's injector outlet to the
union
25.4 cm (10
inch)
SST MP35N
T2 Pre-configured tubing assembly
that connects the column outlet
to the detector inlet
61 cm (24
inch)
PEEK PEEK
Union Union connection between
sample manager and passive
preheater
N/A SST Titanium
PPH Passive preheater 82.3 cm (32
inch)
SST MP35N
F1 Stainless steel (gold-plated)
fitting with short flats and 2-
piece stainless steel ferrule
N/A SST (gold-plated
screw)
SST (gold-plated
screw)
F2 Dual-threaded, finger-tight
fitting with cap nut
N/A SST cap and
screw, PEEK
ferrule
SST cap and
screw, PEEK
ferrule
F3 10-32 PEEK fitting with PEEK
ferrule
N/A PEEK and SST
locking ring
PEEK and SST
locking ring
