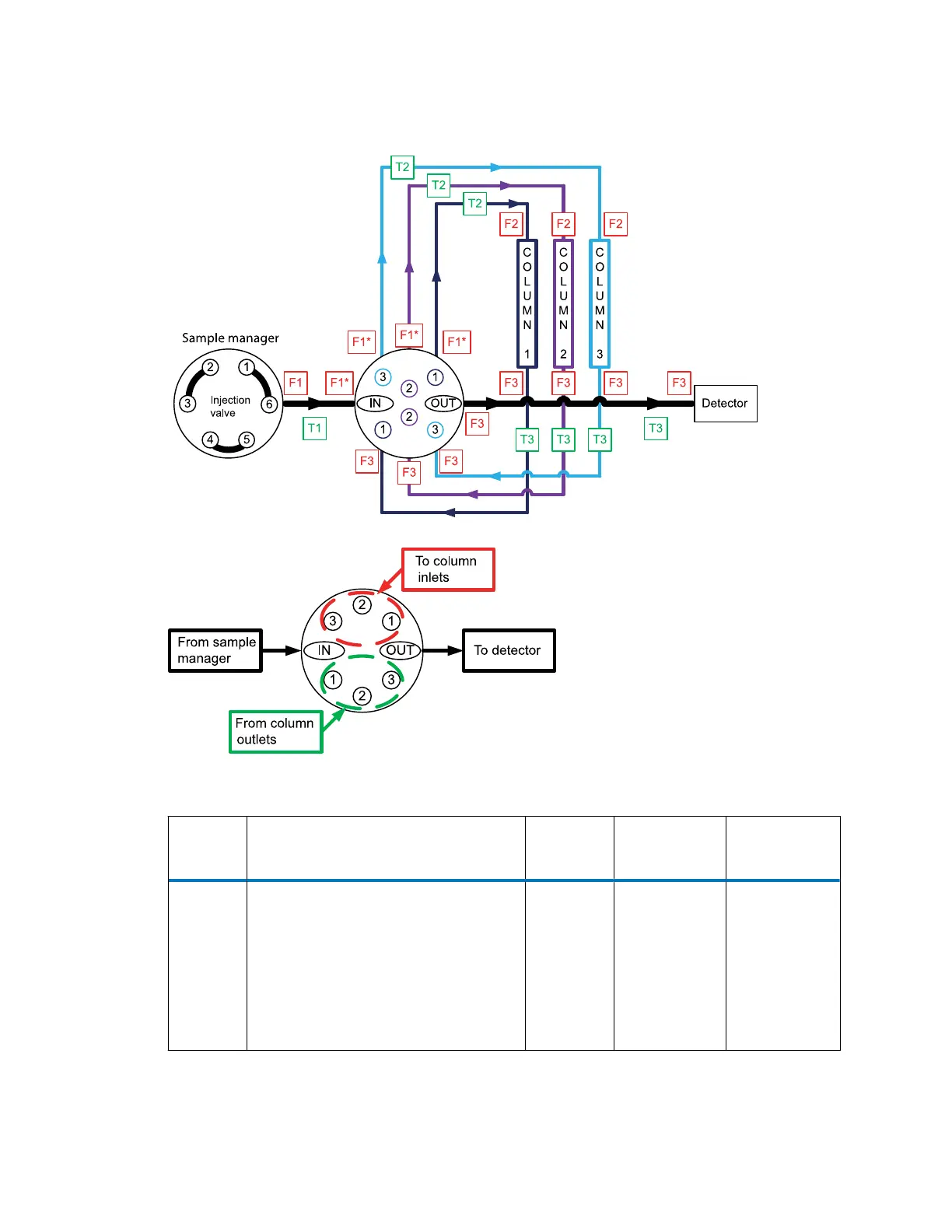

Figure 2–22: Connection diagram for a configuration with column-selection valve
Table 2–2: Legend
Identifier Description Length ACQUITY
Arc material
ACQUITY Arc
Bio material
T1 Pre-configured tubing assembly that
connects the sample manager's
injection outlet to the inlet of the
column-selection valve.
Important: Connect the large screw
on the valve-inlet tube to the column-
switching side of the valve.
71.1 cm
(28 inches)
SST MP35N
