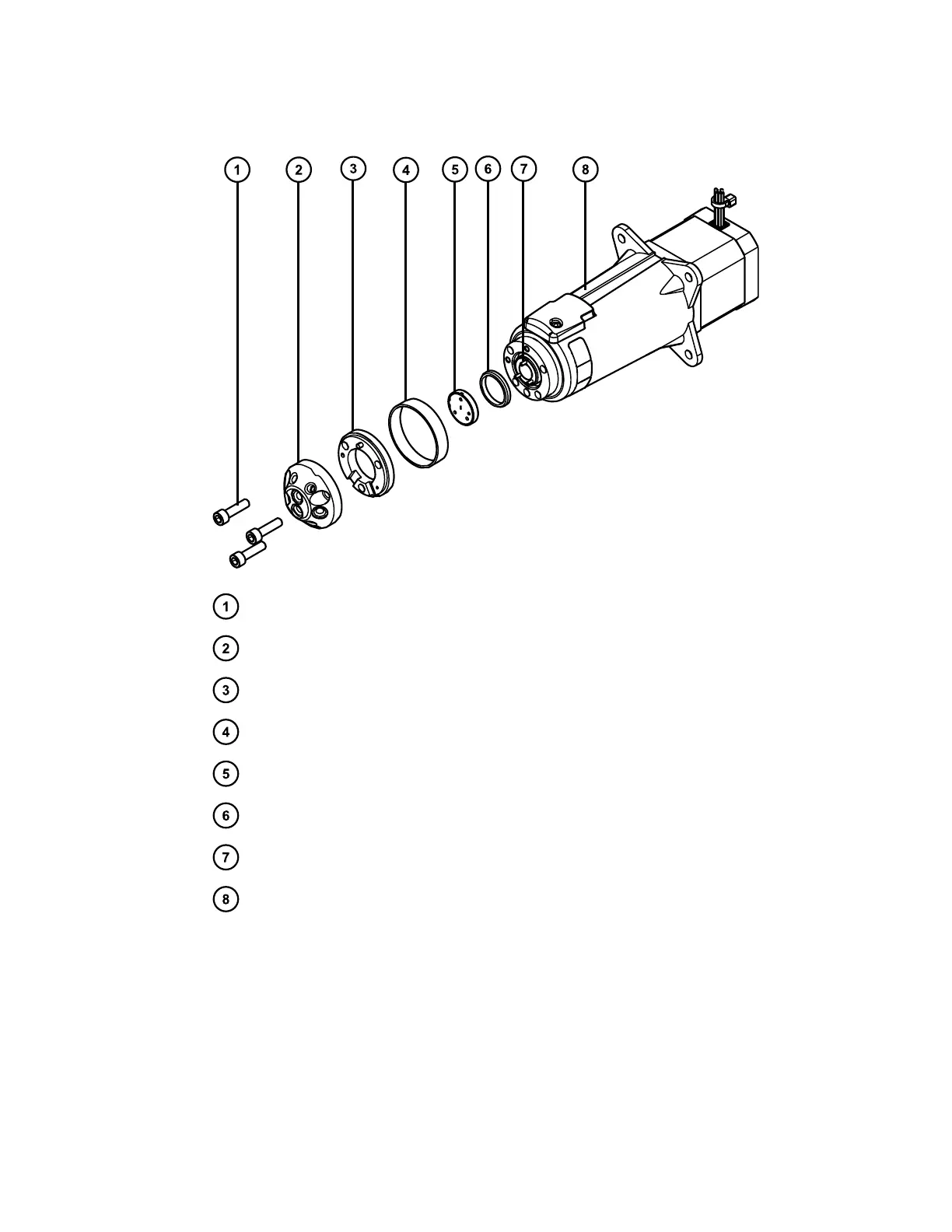

Figure 3–8: Motorized valve assembly (exploded view)
Stator socket-head screws (3)
Stator
Stator ring
Identifier ring
Rotor seal
Isolation seal
Shaft assembly
Body
2. Remove the stator, stator ring, and identifier ring from the valve body.
3. Pull the rotor-seal assembly off the three pins on the shaft assembly.
4. Mount the replacement seal onto the shaft assembly with the smooth side toward the body
(grooves facing the stator), as shown in the figure below.
December 5, 2017, 715004751 Rev. C
Page 61
