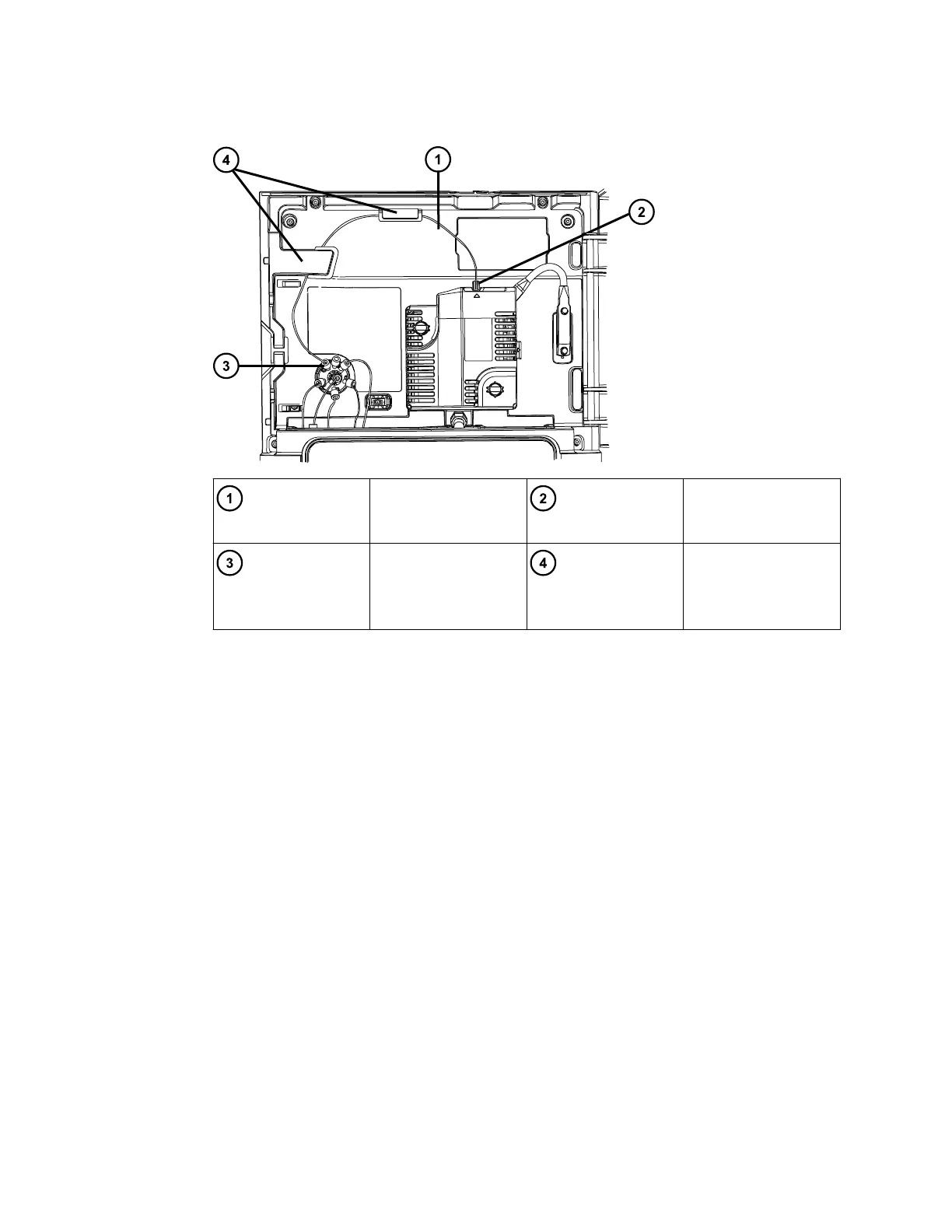

Figure 3–18: Replacing the probe capillary assembly
Probe capillary
assembly
Probe capillary
connection at source
Probe capillary
connection at divert
valve
Capillary retaining
clips
3. Loosen and remove the end of the probe capillary assembly connected to the divert valve.
4. Remove the capillary tubing from the retaining clips.
5. Loosen and remove the end of the probe capillary connected to the top of the source
enclosure.
6. Remove and dispose of the probe capillary assembly.
7. Using the replacement probe capillary assembly, carefully insert the capillary end into the
inlet on top of the source enclosure and tighten the fitting until it clicks.
August 20, 2021, 715005003 Ver. 04 (Previously released as Revision C)
Page 53
