Watson-Marlow 630 U - Page 36

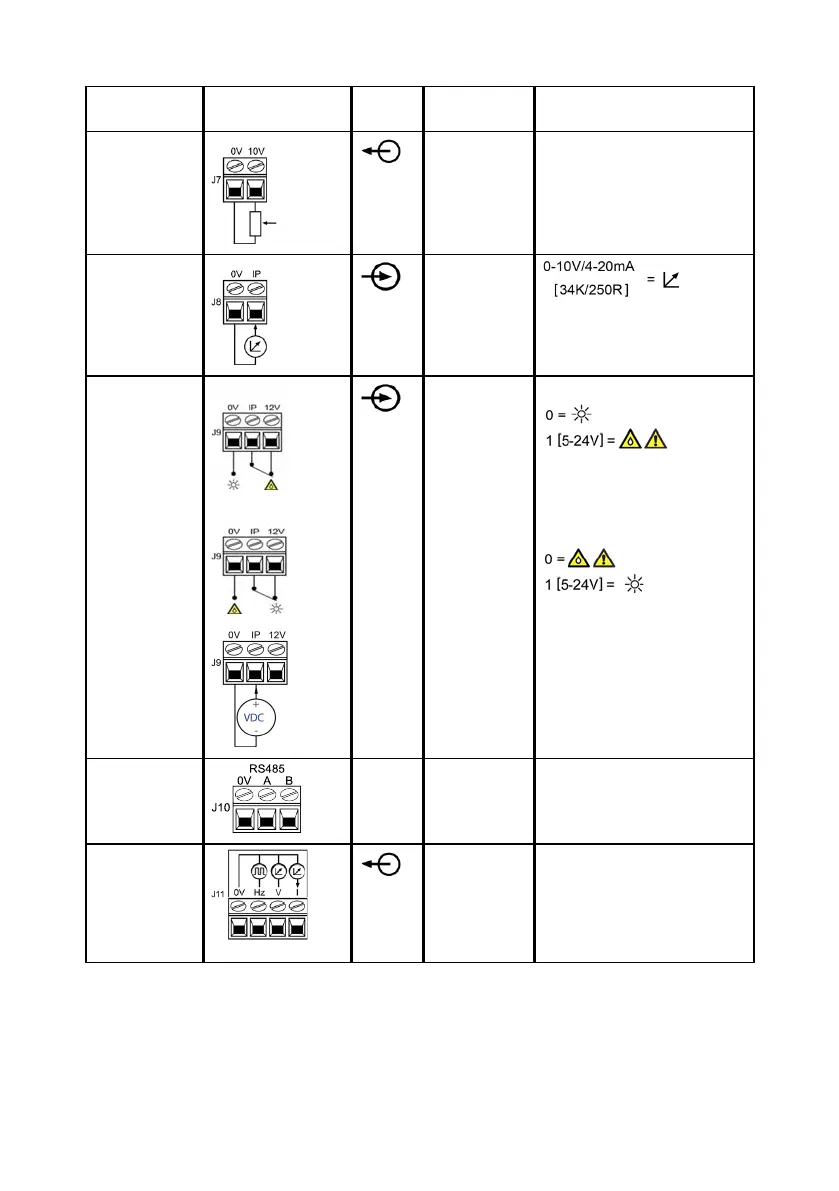

Connector No. Function Input or
output
Configurable
Signal response
J7
REMOTE POT
No 10V 10mA Max
J8
ANALOGUE 2
Yes
J9
LEAK DETECT HIGH
LEAK DETECT
LEAK DETECT LOW
LEAK DETECT
LEAK DETECT
Yes
Leak = high
Leak = low
J10
RS485
0V
A B
J10
J11
TACHO O/P
No Hz=5V TTL
V=0-10V
I=4-20mA
36 m-630un-en-08
