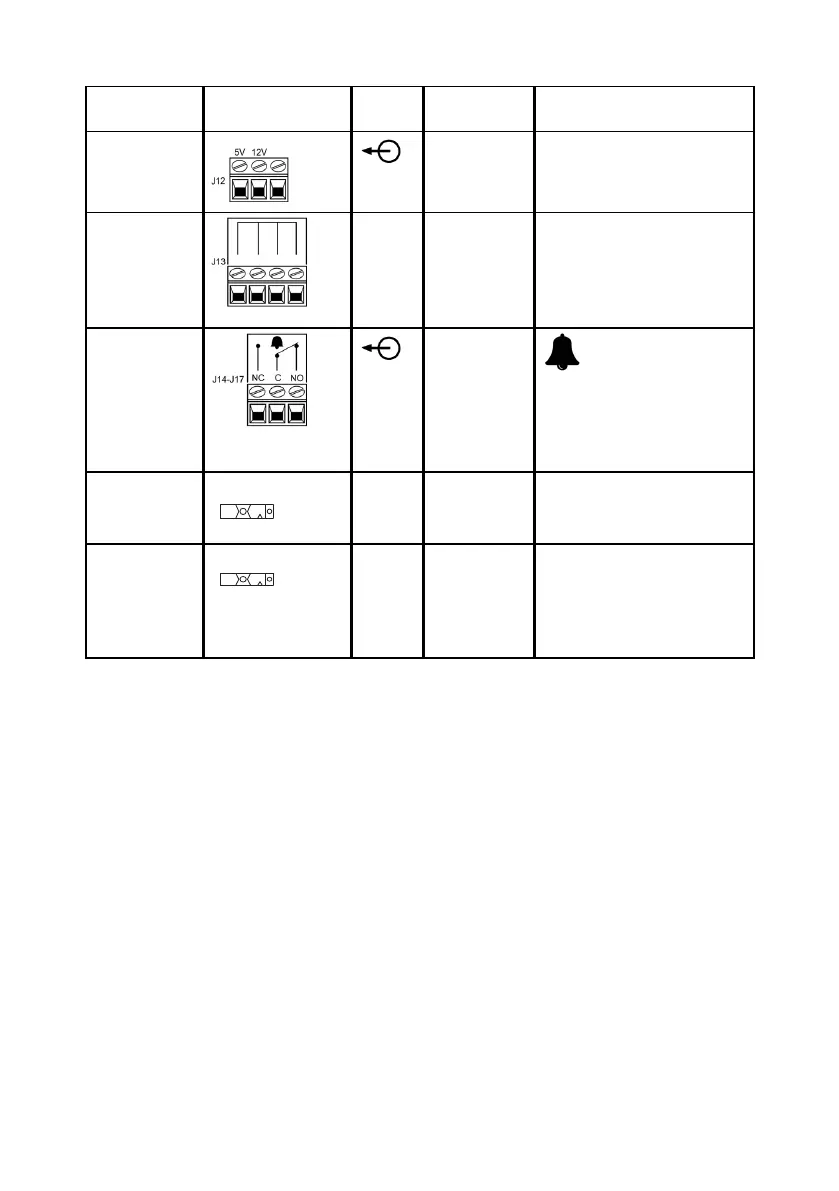

Connector No. Function Input or
output
Configurable
Signal response
J12
No Sum of all 12V currents = 10mA
DC Max
J13
J14,15,16,17
Yes
LOW=N/C
HIGH=N/O
24V DC MAX
SW1
Switches in or out a 124R
termination resistor - May be
required for long cable lengths
SW2
Switches in or out a filter
capacitor for optional use when
internal terminal is selected.
May be of use if data errors
occur with long lines.
m-630un-en-08 37
