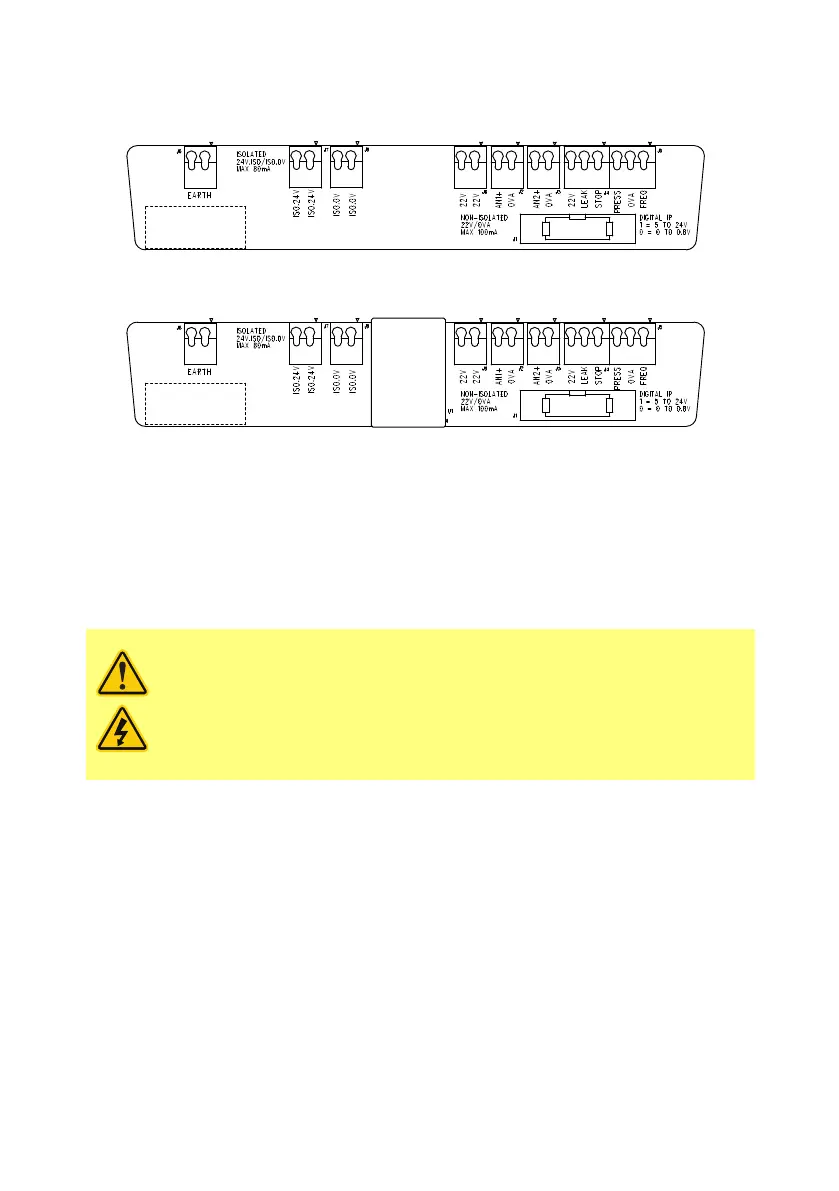

Adapter PCB
1. Without isolated power supply option (NModule) 2. With isolated power supply option (FModule)
Note: Disconnect the adapter module by use of the ribbon eject levers. It is recommended to leave the
9W connector permanently attached to the pump.
Recommended control cable: metric = 0.05sqmm - 1.31sqmm solid and stranded. USA = 30AWG -
16AWG solid stranded. Cable: circular. Max/min outside diameter to ensure a seal when passed through
the standard gland: 9.5mm-5mm. The cable section must be circular to ensure a seal.
Never apply mains power to the terminals within the N module. Apply the
correct signals to the terminals. Limit signals to the maximum values shown.
Do not apply voltage across other terminals. Permanent damage, not covered
by warranty, may result. The maximum rating on the relay contacts of this
pump is 30VDC; maximum load 30W.
Note: Also suitable for low power: ie, 1mA at 5VDC minimum.
58 m-630un-en-08
