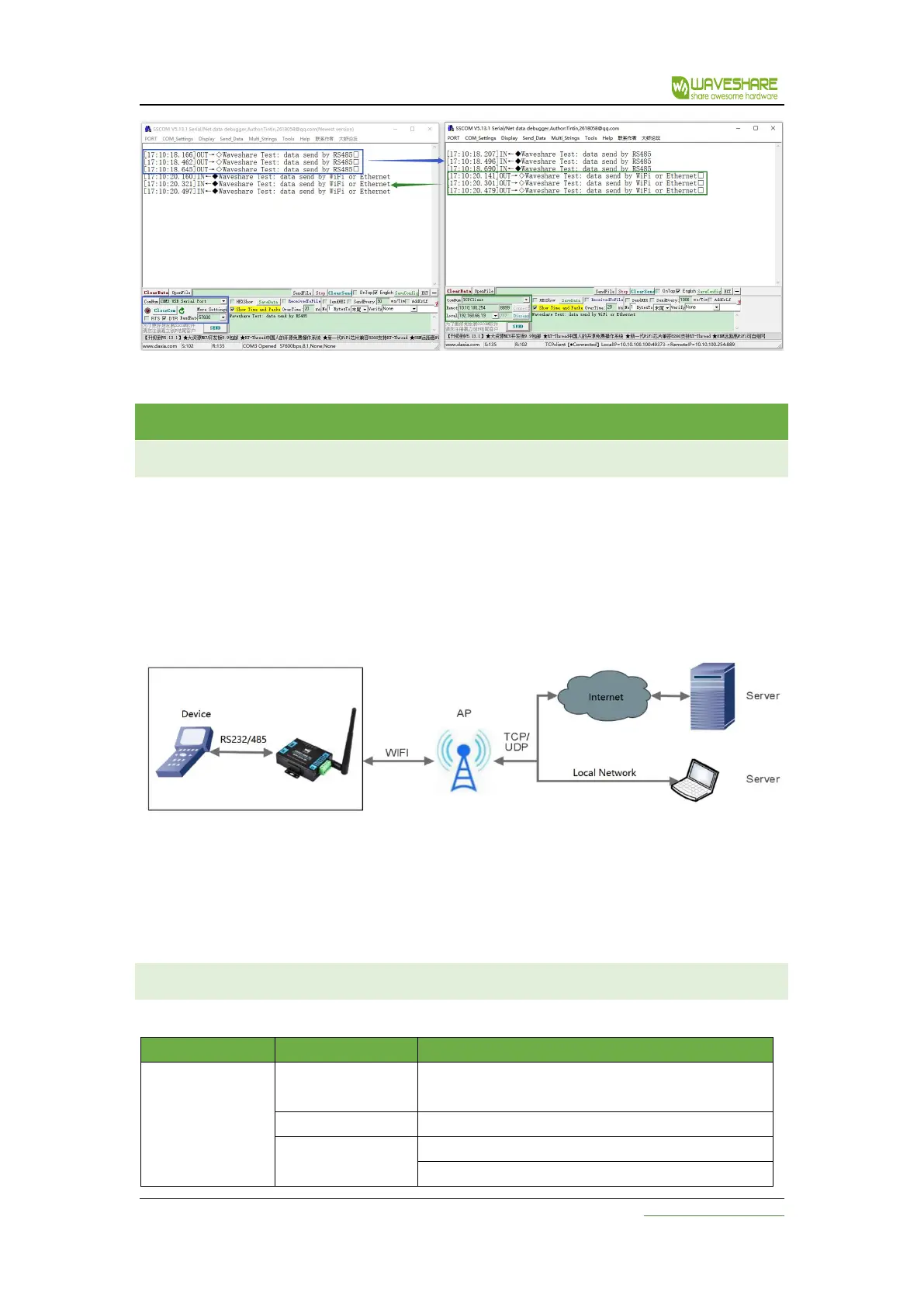

Figure Serial port/network transmission test
3. OVERVIEW
3.1 INTRODUCTION
The RS232/485 TO WIFI POE ETH (B) serial server supports UART-to-Wi-Fi, allowing you to
convert a serial port (RS232 or RS485) into a TCP/IP network port. This enables bidirectional
transparent data transmission between the serial interface (RS232 or RS485) and Wi-Fi. This enables
serial devices to immediately have TCP/IP network interface functions, connect to the network for
data communication, greatly expanding the communication distance of serial devices, as shown in the
following figure:
Figure Basic functions of serial server
Users do not need to worry about specific details. The module completes protocol conversion
internally, and can achieve bidirectional data transmission between the serial port and WIFI through
simple settings.
3.2 ELECTRICAL PARAMETER
Table Electrical Parameters
Name
Item
Index
Wireless
standards
802.11b/g/n
Frequency range
2.412
GHz
-2.484
GHz
Transmitting
power
802.11b:+19dBm(Max.@11Mbps)
802.11g:+18dBm(Max.@54Mbps)

Waveshare RS232/485 TO WIFI POE ETH (B) Specifications

General

Model	RS232/485 TO WIFI POE ETH (B)
Serial Interface	RS232/RS485
WiFi Standard	802.11 b/g/n
Ethernet Speed	10/100Mbps
Network Interface	Ethernet
Power Supply	PoE
Operating Temperature	-40°C to 85°C
Humidity	5% ~ 95%
