RS232/485 TO WIFI POE ETH (B) User Manual
www.waveshare.com
22
4.1.7 ETHERNET FUNCTION SETTINGS
This page is used to set the Ethernet port of the module, which can be enabled or disabled.
Moreover, it can be used as a WAN port, so that the module can be used as a secondary router, which
is convenient for users to network. The specific settings page is as follows:

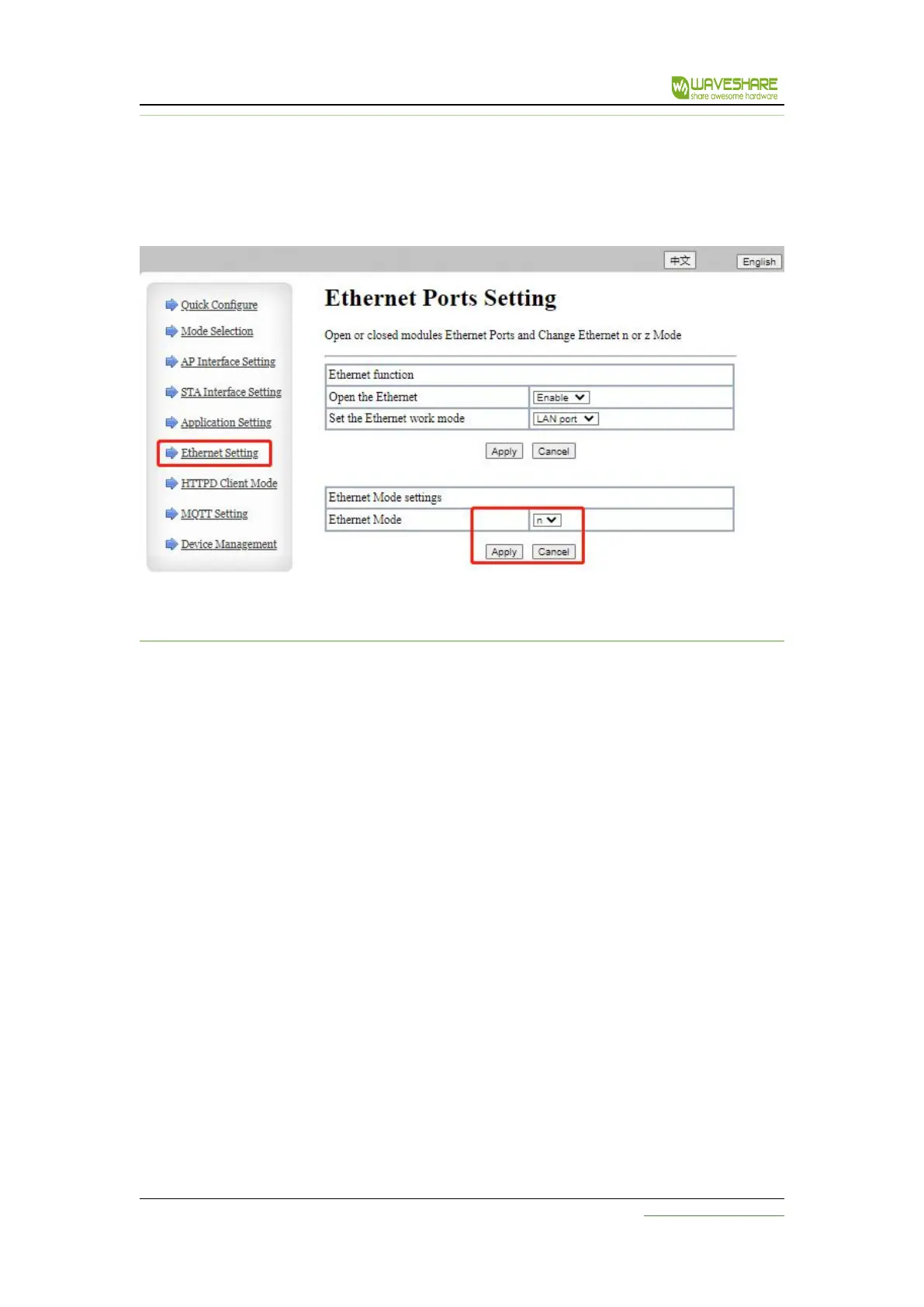

Figure Ethernet function settings page
4.1.8 HTTPDCLIENT MODE PAGE
This webpage sets the contents of HTTP protocol header in HTTPDClient mode, including: server
address, server port, request type, protocol header path, protocol header Connection and protocol
header User-Agent. The size of the transmitted data is 1000 bytes. For details about data transmission
method, you can refer to “HTTPDClient” chapter in this user manual.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Waveshare RS232/485 TO WIFI POE ETH (B) and is the answer not in the manual?

Waveshare RS232/485 TO WIFI POE ETH (B) Specifications

General IconGeneral
ModelRS232/485 TO WIFI POE ETH (B)
Serial InterfaceRS232/RS485
WiFi Standard802.11 b/g/n
Ethernet Speed10/100Mbps
Network InterfaceEthernet
Power SupplyPoE
Operating Temperature-40°C to 85°C
Humidity5% ~ 95%
