RS485 interface: RS485 interface, which is A, B and G from right to left according to the logo.
Power interface (terminal): 5.08*2P terminal power interface. The product power input has TVS
and anti-reverse connection protection, and supports wide voltage range: 6~36V power supply.
Power interface (DC jack): DC 5.5 jack, supporting wide voltage range: 6~36V power supply.
RJ45 network port: RS232/485 TO WIFI POE ETH(B) supports PoE Ethernet power supply.
The connection of the network port, the network port of the module is 10M/100M adaptive,
supporting AUTOMDI/MDIX, which means that you can use the direct network cable to directly
connect with the computer for testing. The RS232/485 TO WIFI POE ETH (B) serial server disables the
network port by default, and can be enabled by AT command or webpage setting if it is necessary to
use the network port.

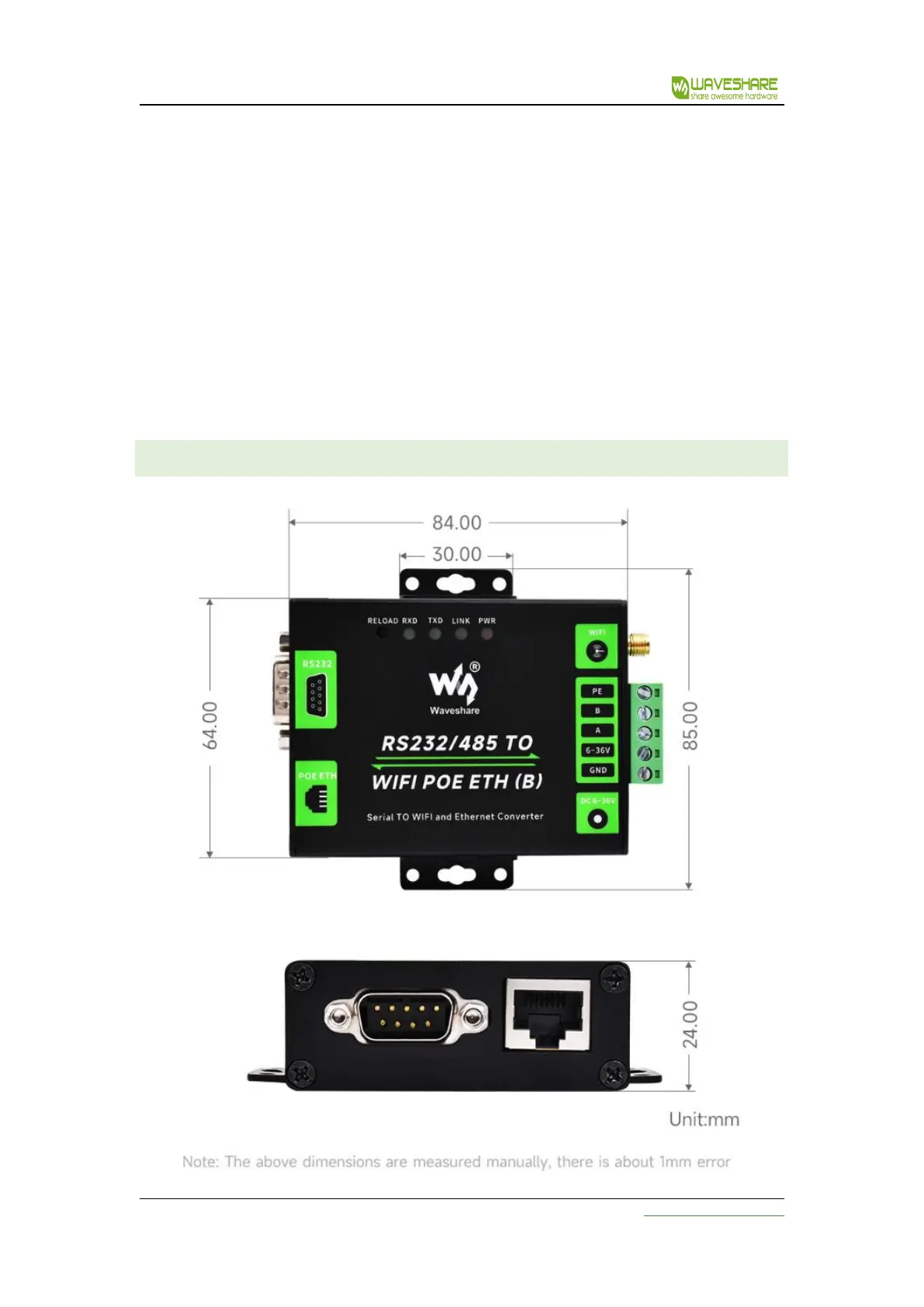

3.6 OUTLINE DIMENSIONS
