Waveshare RS232/485 TO WIFI POE ETH (B) User Manual

RS232/485 TO WIFI POE ETH (B) User Manual
www.waveshare.com
31

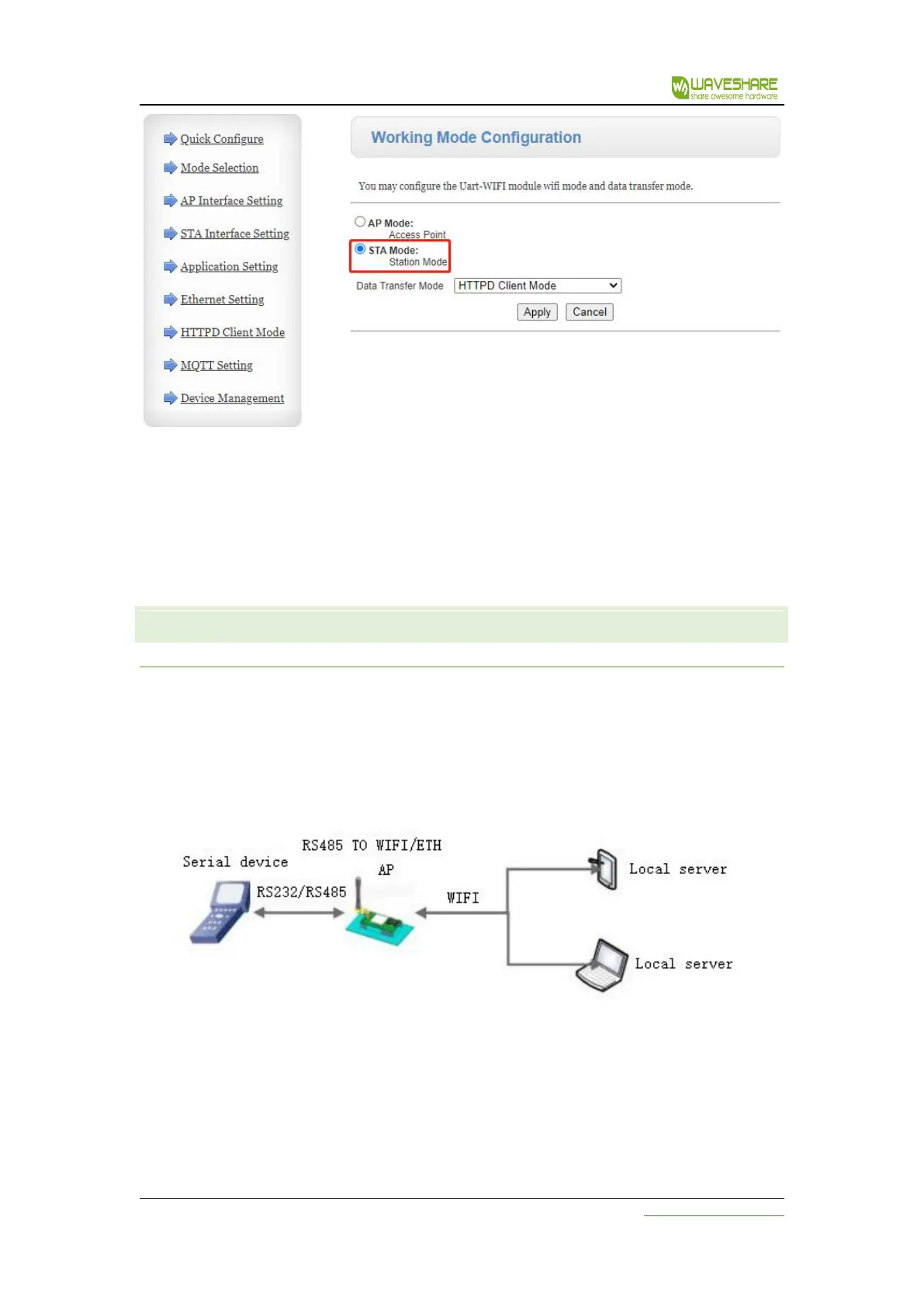

Figure Webpage Mode Setting WIFI Mode
After clicking OK, enter the module management page and restart to complete the work mode
settings.
The module enables the AP+STA function, which can be set through the AT command
(AT+FAPSTA) or customized to the factory default.
5.2 WIRELESS NETWORKING APPLICATIONS
5.2.1 WIRELESS NETWORKING APPLICATIONS (AP)
The WIFI serial server is used as an AP, and other WIFI serial servers and computers can be
connected to this WIFI serial server as STA. At the same time, it can also be connected through the
UART interface to the user device, as shown in the following figure:
Figure Access Point (AP)
The WIFI serial server operates in AP mode, and the above application can be set using the
following AT command:
(1) Set the WIFI serial port server to AP mode

Waveshare RS232/485 TO WIFI POE ETH (B) Specifications

General

Model	RS232/485 TO WIFI POE ETH (B)
Serial Interface	RS232/RS485
WiFi Standard	802.11 b/g/n
Ethernet Speed	10/100Mbps
Network Interface	Ethernet
Power Supply	PoE
Operating Temperature	-40°C to 85°C
Humidity	5% ~ 95%
