RS232/485 TO WIFI POE ETH (B) User Manual

www.waveshare.com

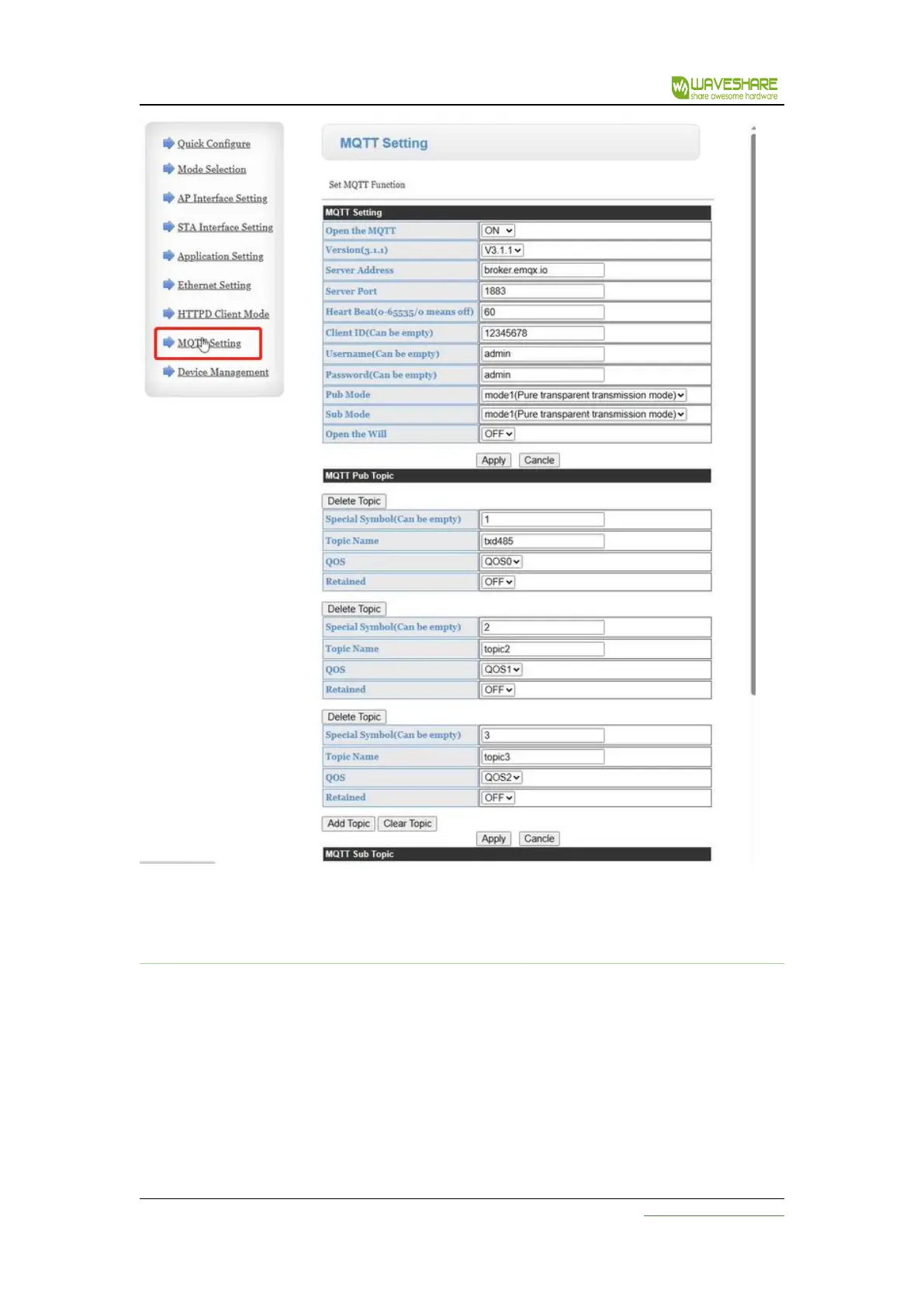

Figure Webpage MQTT function settings

4.1.10 MODULE MANAGEMENT PAGE

Module management includes username/password settings, factory reset, and software upgrade

functions.
