Additionally, the WiFi of the serial server will be connected to the WiFi of the computer. If the
desktop does not have its own serial port and WIFI, it can be replaced by USB TO RS232/485/422/TTL

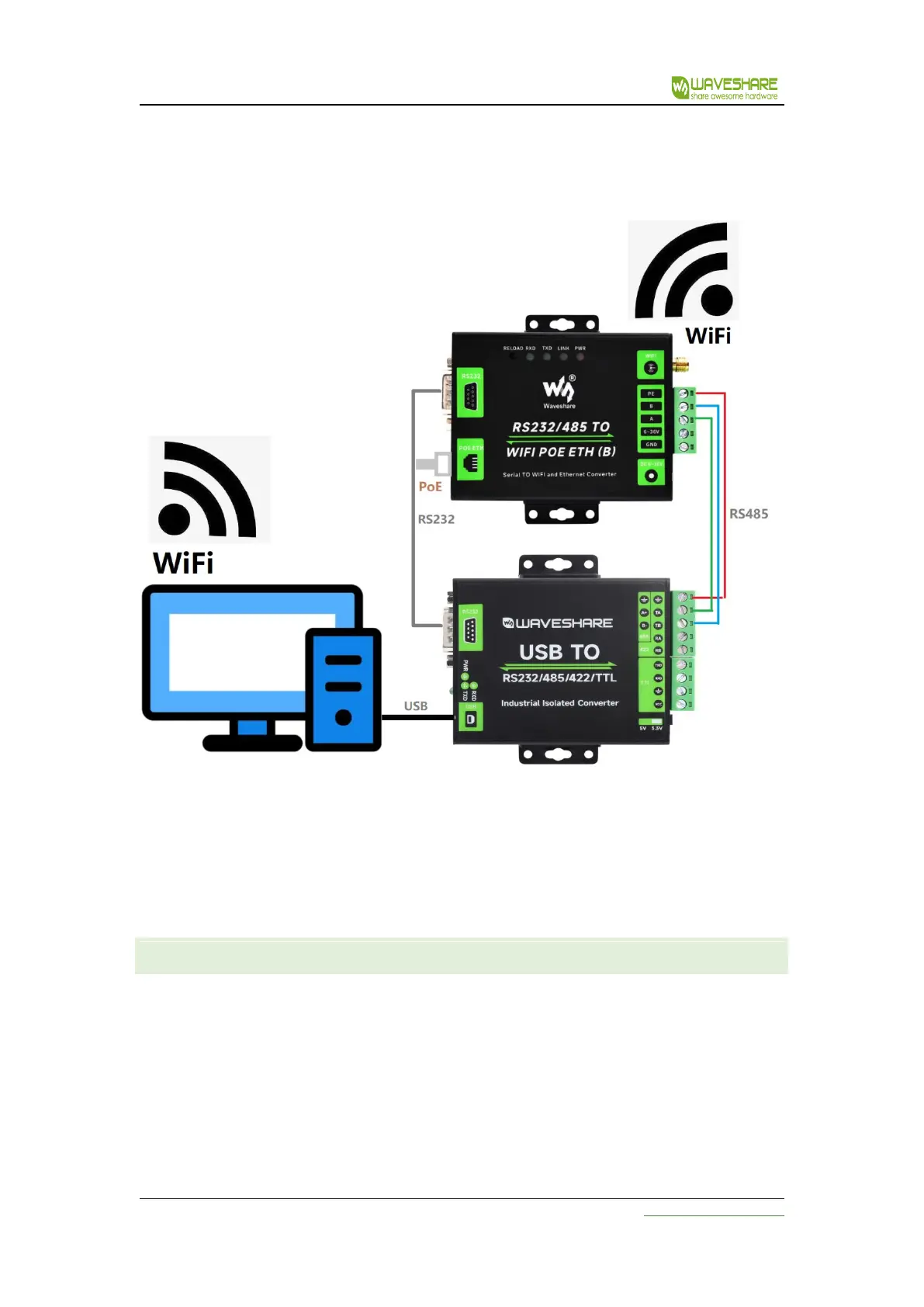

and wireless network card. Hardware connection diagram as shown below:
Figure Hardware Connection
According to the above figure, simply connect the antenna, power supply, and RS232 or RS485
cable to the serial server interface according to the label instructions.
2.2 NETWORK CONNECTIONS
Let's take WIFI connection as an example to introduce the network connection process.
Open the wireless network connection and search for the network. As shown in the figure below,
"Waveshareuxxxx" (xxxx is the last four digits of the MAC address) is the default network name (SSID)
for the serial server.
