Waveshare RS232/485 TO WIFI POE ETH (B) User Manual

RS232/485 TO WIFI POE ETH (B) User Manual
www.waveshare.com
13
indicator will turn off, and then the Link LED will begin flashing again. This will indicate that the
device's settings have been restored to their factory configuration.

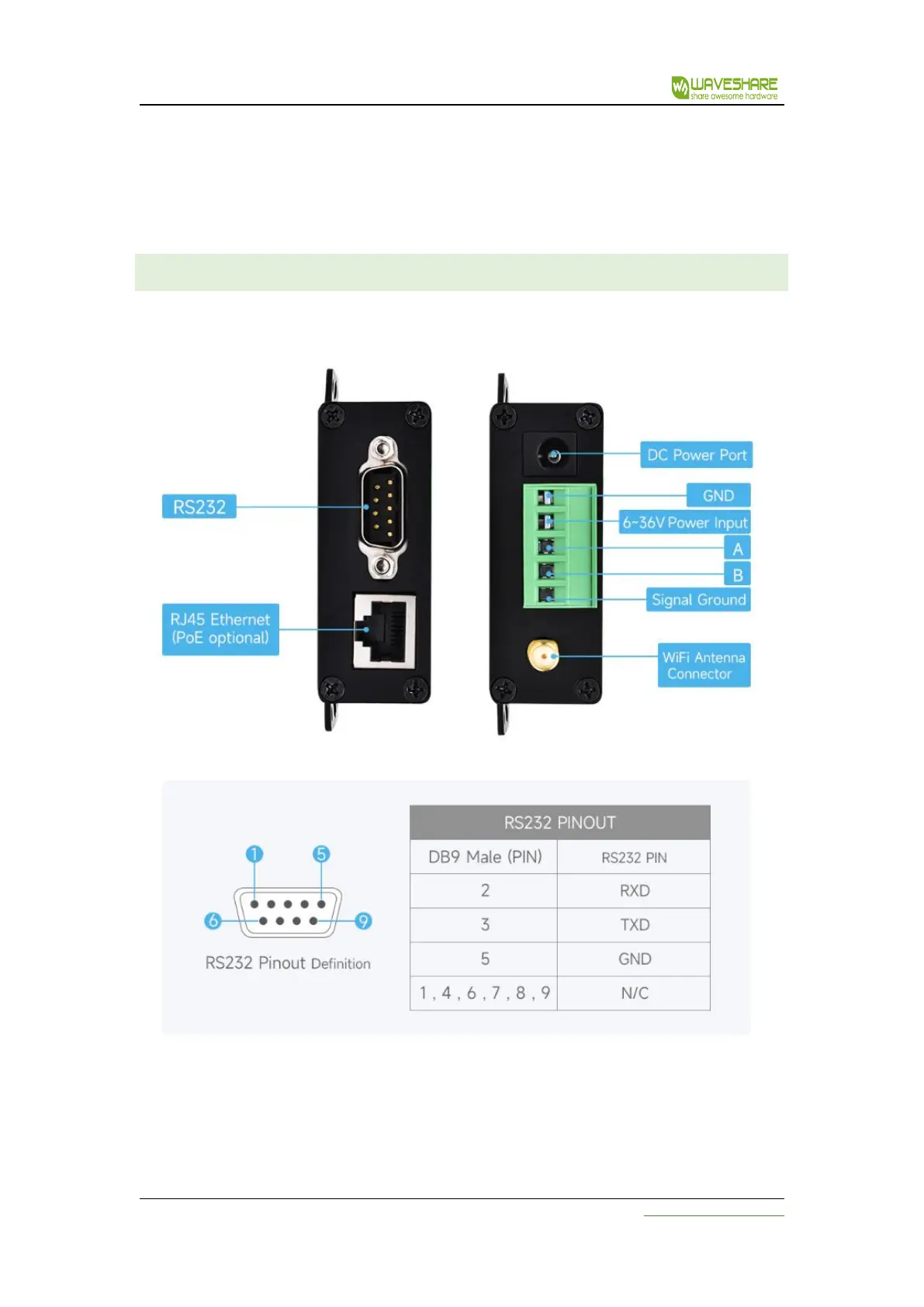

3.5 INTERFACE DESCRIPTION
The hardware interfaces are as follows:

Antenna connector: 3dbi antenna.
 Ethernet port: RJ45 interface.

RS232 interface: DB9 male interface. See the above figure for the cable sequence.

Waveshare RS232/485 TO WIFI POE ETH (B) Specifications

General

Model	RS232/485 TO WIFI POE ETH (B)
Serial Interface	RS232/RS485
WiFi Standard	802.11 b/g/n
Ethernet Speed	10/100Mbps
Network Interface	Ethernet
Power Supply	PoE
Operating Temperature	-40°C to 85°C
Humidity	5% ~ 95%
