8 BlueCool S-Series

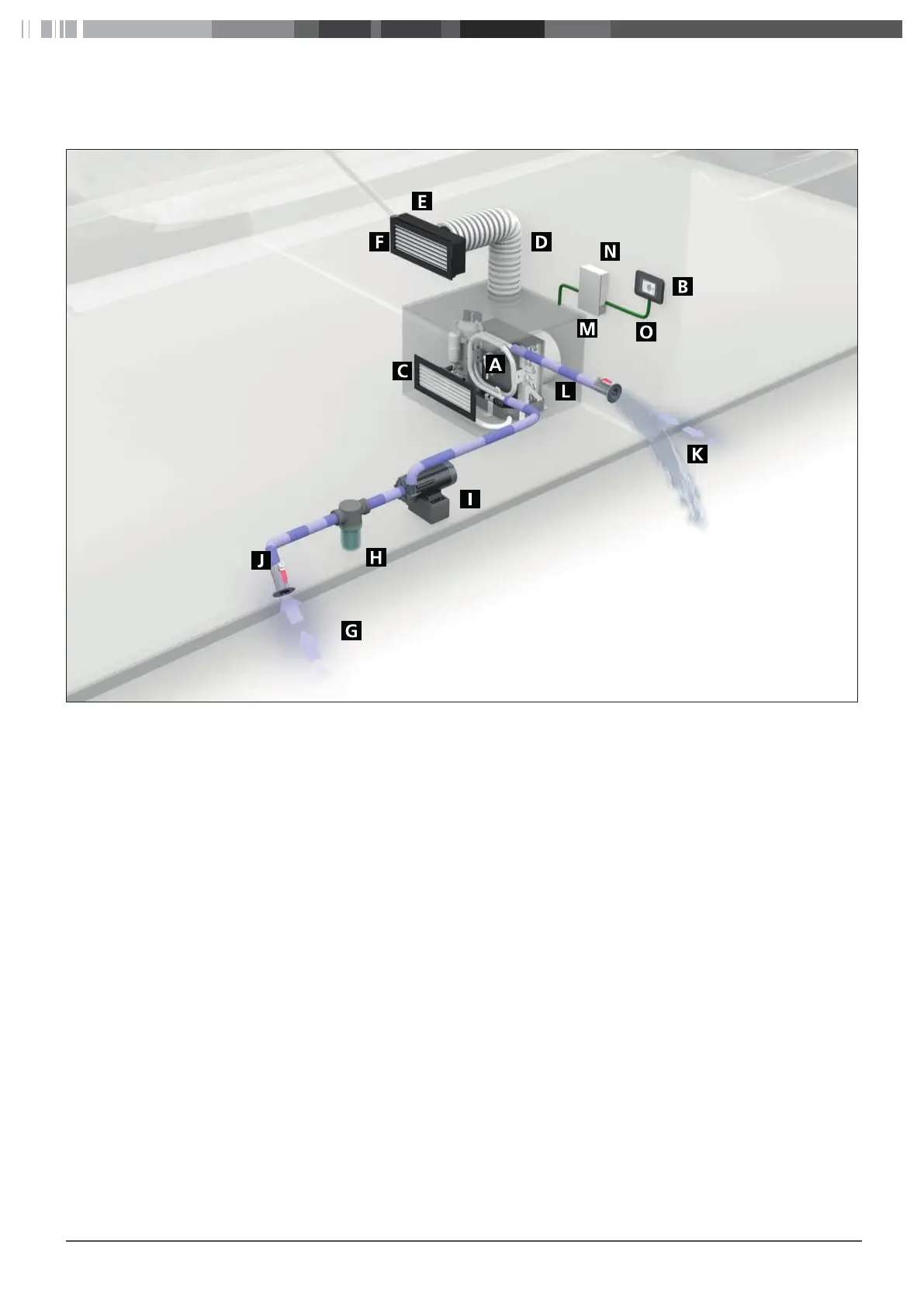

5.3 Installation example
The illustration below shows an example of a typical installation of a BlueCool S-Series air-conditioning system.
Fig.5 Installation example
A BlueCool S-Series air conditioning unit
B Control element (BlueCool MyTouch)
C Air inlet grille
D Flexible air duct
E Transition box
F Supply air grille
G Sea water inlet
H Sea water strainer
I Sea water pump
J Sea valve
K Sea water outlet
L Sea water hose
M Electrical box
N Power supply
O Cable for control element
