32 BlueCool S-Series
13.2 Dimensions and minimum distances
Type S6 - S20
Note
For dimensions by type see table „13 Technical Data“ on page 30.
If the cover plate cannot be removed, a distance of >100mm should be maintained above the system to allow the air fil-
ter to be removed and cleaned.

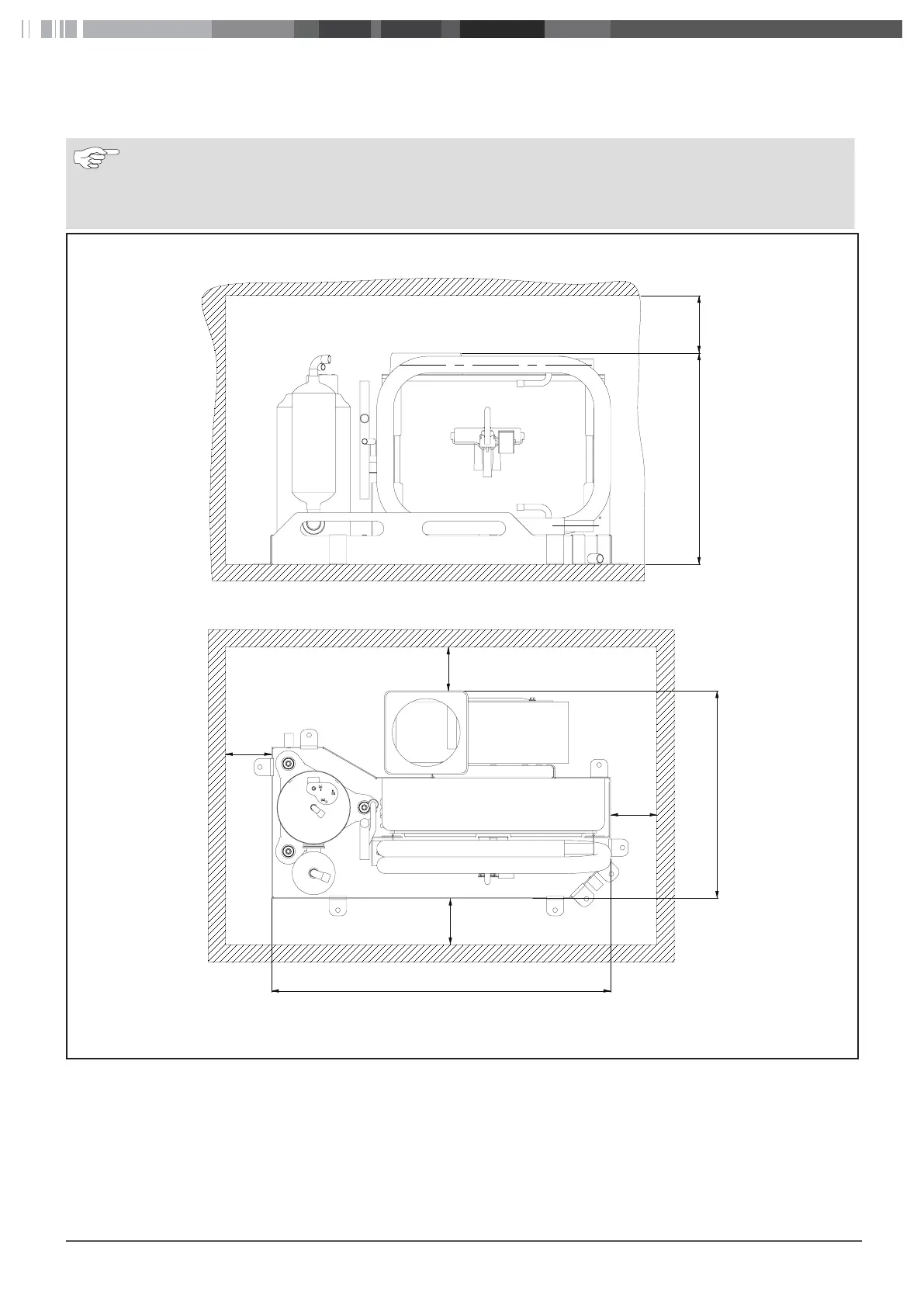

Fig.19
H
>50
(100)
D
L
>40
(100)
>50
(100)
>40
(100)
>20
(150)
Dimensions and minimum distances Type S6 - S20 (mm)
LxDxH: See table „13 Technical Data“ on page 30.
> xx : Minimum distance (mm)
> (xx): Recommended distance (mm)
