7 Operation
7.1 Description
The BlueCool MyTouch is the standard control element for the
BlueCool S-Series and enables easy operation and setting of the
connected system. The screen is designed as a touch screen. Sys-
tem operation is described in the following.
Caution
Damage to BlueCool MyTouch
■
The screen should not come in contact with any
other electrical devices as electrostatic discharge
could cause malfunctions.
■
Do not use pointed or sharp objects to operate the
screen and do not exert excessive pressure with
your fingers.
Notes
■
It is recommended to operate the screen with your
fingers.
The touch sensitivity of the screen is optimised to
direct contact with the fingers. The screen may not
respond to touch if gloves are worn.
■
Tapping outside the touch-sensitive area at the
edge of the screen may not be recognised.
7.2 Home screen and symbols

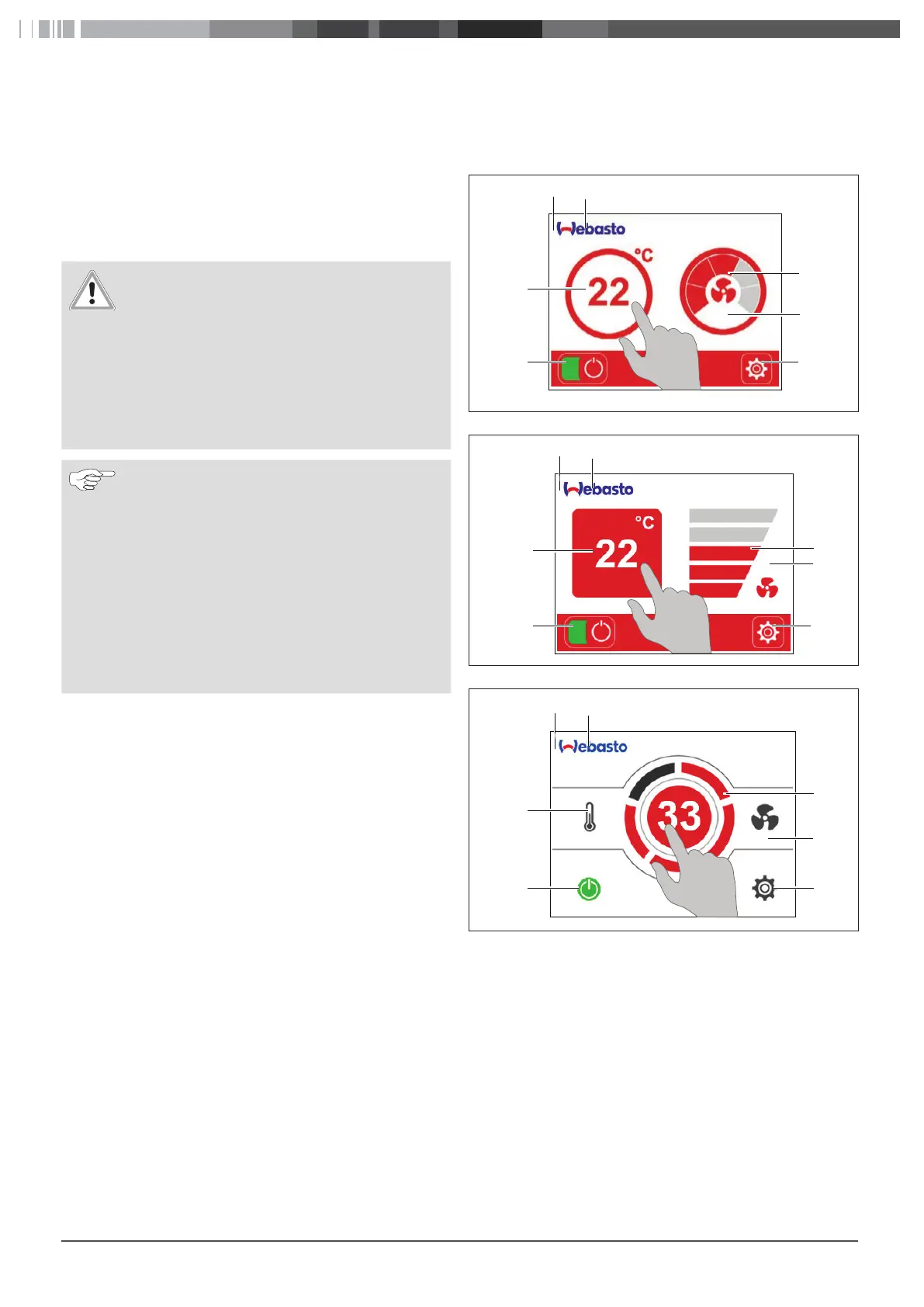

There is a choice of 3 different designs of the Home screen with
temperature and fan setting. The functions are the same.
To change the design (in Passenger menu) see “7.4 Setting level 1
(Passenger menu)” on page 19.
Fig.12
A
1
3
4
6
7
5
2
Design 1
Fig.13
1
3
4
6
7
5
2
A
Design 2
Fig.14
1
3
4
6
7
5
2
A
Design 3
The illustrations show examples of design 1 to 3.
1 Home screen
2 Select Crew menu (and Parameter menu)
3 Temperature setting
4 ON/OFF
5 Fan display
6 Display of automatic air handler control
7 Settings (Passenger menu)
