18 BlueCool S-Series

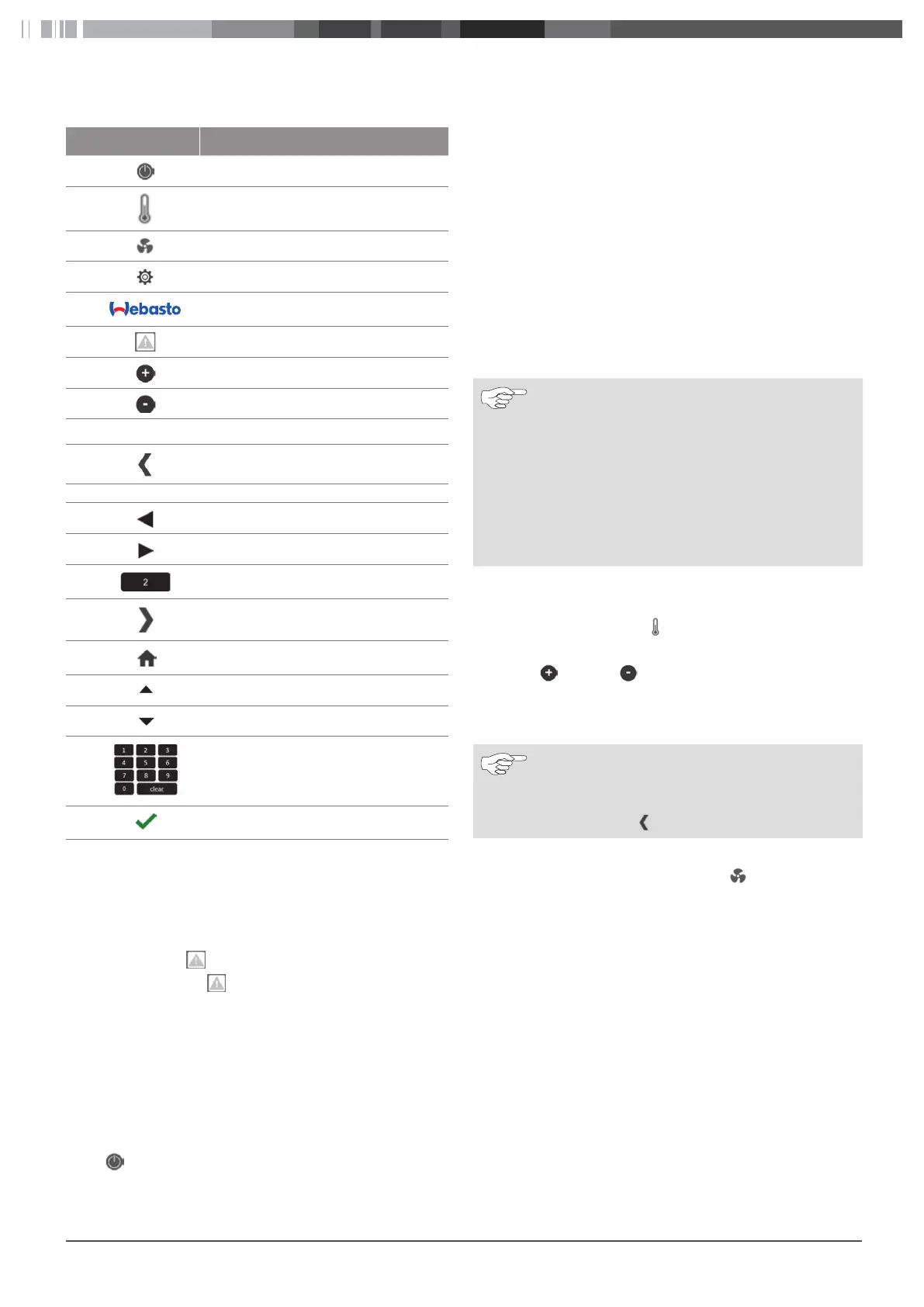

The symbols on the Home screen provide information on the sys-
tem status. The symbols are explained in the table below:
Symbol Meaning
1 On/Off
2
Temperature
3
Fan
4
Settings
5
Crew menu
6
Notification
7
Increase values
8
Decrease values
9
Automatic fan control
10
previous
11 22 Setpoint temperature
12
previous
13
Forward
14
Parameter value
15
Select
16
Home screen
17
Scroll up
18
Scroll down
21
Keypad
22
Display selection
Fig.15 Meaning of symbols
7.2.1 Standby
The screen will go to Standby mode after 5 minutes if no entries
are made on the screen. Tap anywhere on the screen to call up
the Home screen.
7.2.2 Notification
The notification symbol appears on the bottom status line to
draw your attention to the current status of the system. Tap on
the symbol to show the corresponding status message.
7.2.3 ON/OFF
■
When the screen is switched off:
Tap the screen.
The screen switches on.
■
When the screen is switched on:
Tap .
The colour of the ON/OFF symbol indicates the operating status
(green = switched on, grey = switched off).
7.2.4 Operation
After switching on, the control system starts up the self-contained
air-conditioning unit in steps and then assumes normal operation.
The control element now shows the current temperature where
the temperature sensor of the self-contained air-conditioning unit
is installed. Depending on the installation location, this may also
be the temperature of another cabin for example.
After approx. 20 seconds, the base colour of the control element
changes to indicate the operating mode (cooling or heating) in
which the self-contained air-conditioning unit was started. Blue in-
dicates cooling mode, red heating mode. The selection is depend-
ent on the set setpoint temperature and the room temperature
measured by the cabin temperature sensor. The system will as-
sume standby mode if the cabin temperature and the setpoint
temperature are the same.
Note
■
The system only cools under the following condi-
tions: cabin temperature > 15 °C.Setpoint tempe-
rature<cabin temperature.
■
The system only heats under the following condi-
tions: cabin temperature < 29 °C.Setpoint tempe-
rature > cabin temperature.
7.2.5 Setting setpoint temperature
To set the required cabin temperature:
Tap on the temperature or on the Home screen.
The setpoint temperature appears to the right.
Tap Plus or Minus to increase or decrease the setpoint
temperature.
The Settings menu is automatically exited after 30 seconds and
the value last set is adopted.
Note
Alternatively:
Save and exit menu immediately:
Tap Previous .
7.2.6 Setting fan speed
To set the required fan speed tap on Fan on the Home
screen.
With automatic fan control mode selected, the symbol A appears
on the Home screen. The control system of the fan automatically
adapts the fan speed.
