Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
37
Audi A1
A = 180°, 18mm dia.
B = 800
C = 90°, 18mm dia.
D
= 90°, 18mm dia.
E = 960
Cutting
hoses to
length

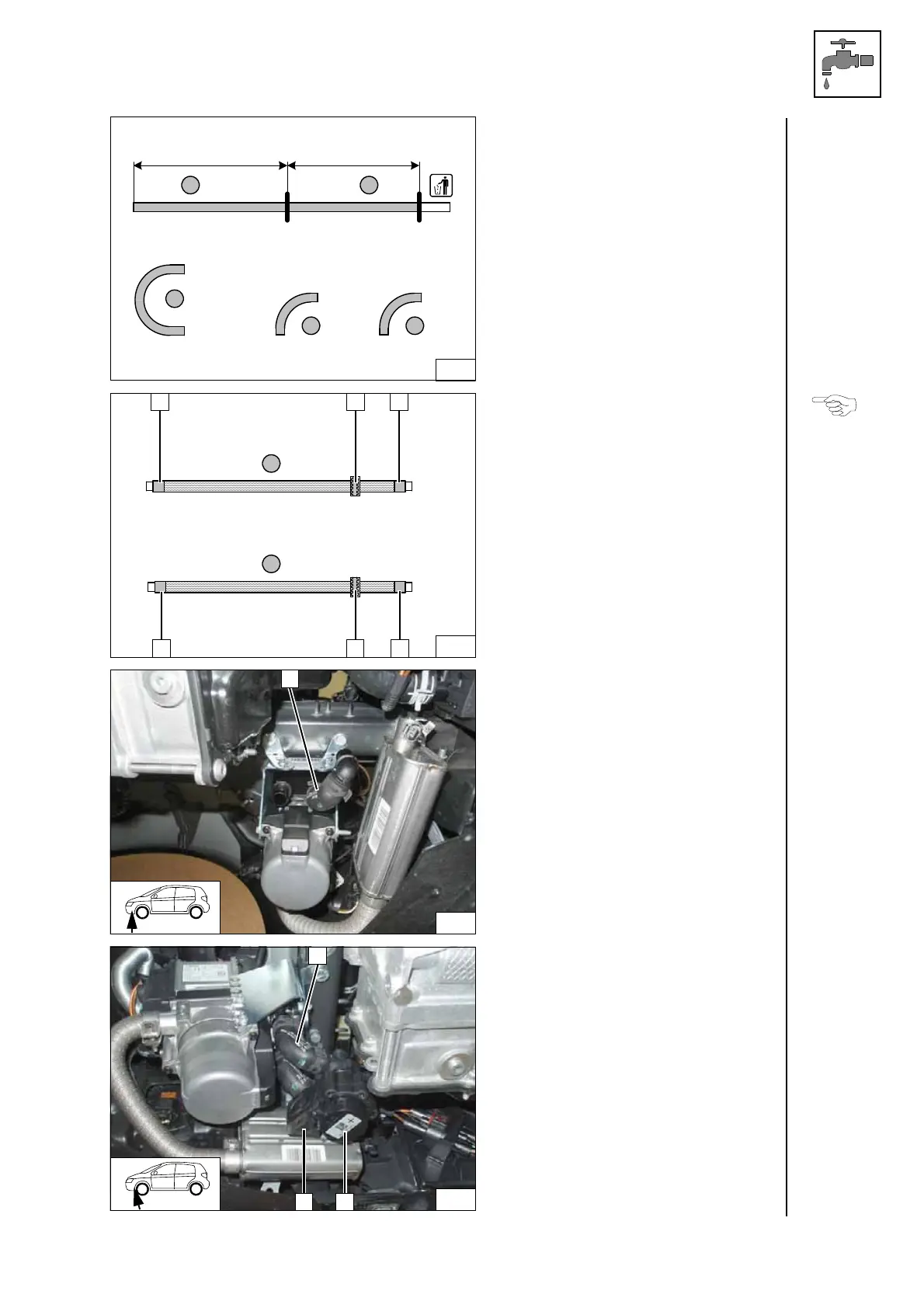

Slide on braided protection hoses and cut
to length.
1 Cut heat shrink plastic tubing to size,
50mm long [4x]
2 Black (sw) rubber isolator [2x]
Installing
braided pro-
tection hoses
Connect-
ing hose D
1
Circulating pump
2 Circulating pump mount
Connect-
ing circulat-
ing pump
C
B E
D
A
111
B
E
1
1 1
112
1 2
2
113
D
114
C
12
