Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
38
Audi A1

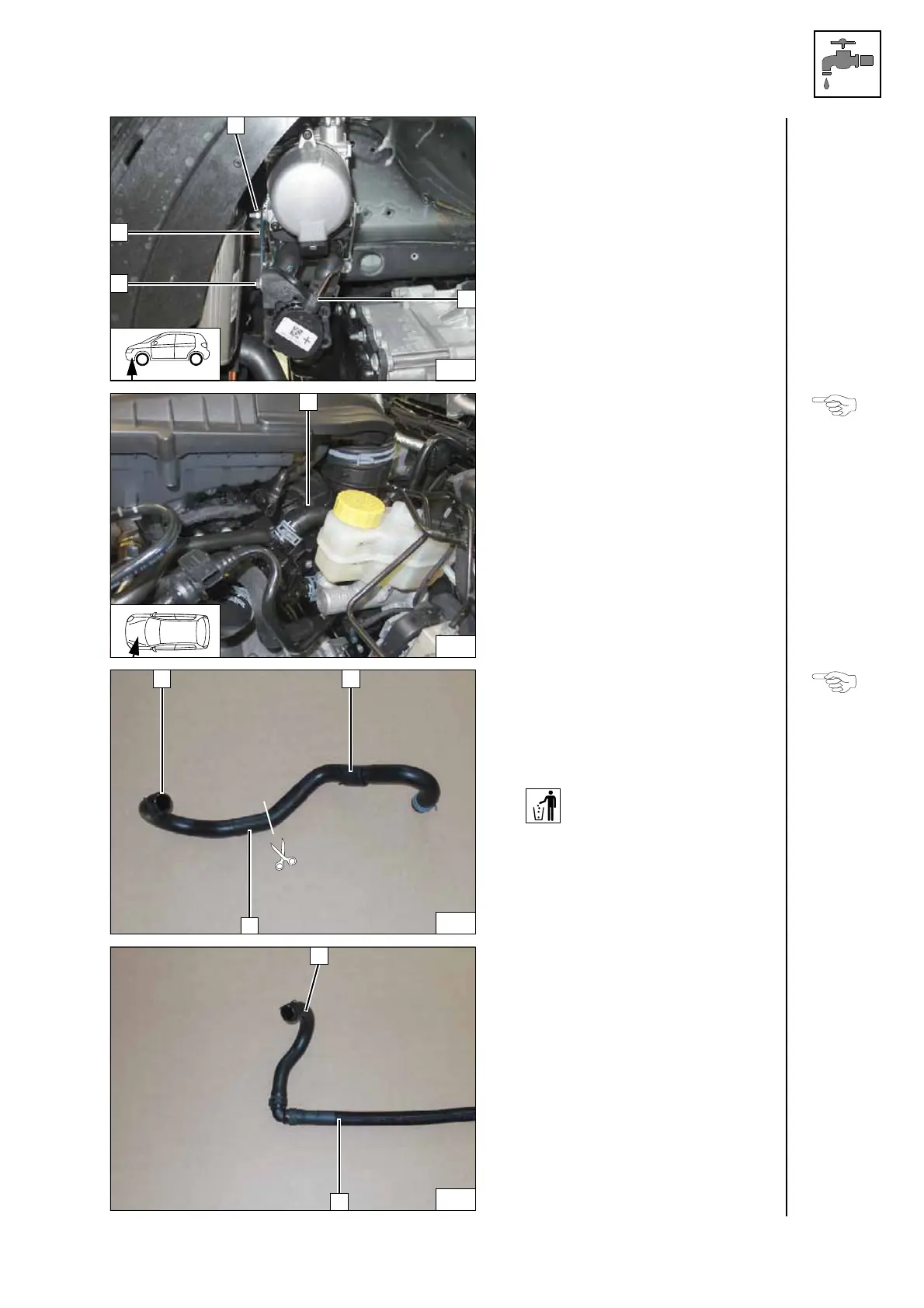

1 Flanged nut on stud bolt of heater
2 Wiring harness of circulating pump
3 M6x25 bolt, flanged nut
4 Perforated bracket C
Installing
circulating
pump
Remove hose 1 from engine outlet/heat
exchanger inlet. Spring clips will be re-
used.
Removing
hose
Cut off hose of engine outlet/heat ex-
changer inlet
1 at the marking.
1 Heat exchanger inlet hose section
2 Remove heat shrink plastic tubing
and discard
X =
Cutting
point
1
Heat exchanger inlet hose section
Premounting
hose E
115
1
3
4
2
116
1
117
1 X
2
118
E
1
