Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
40

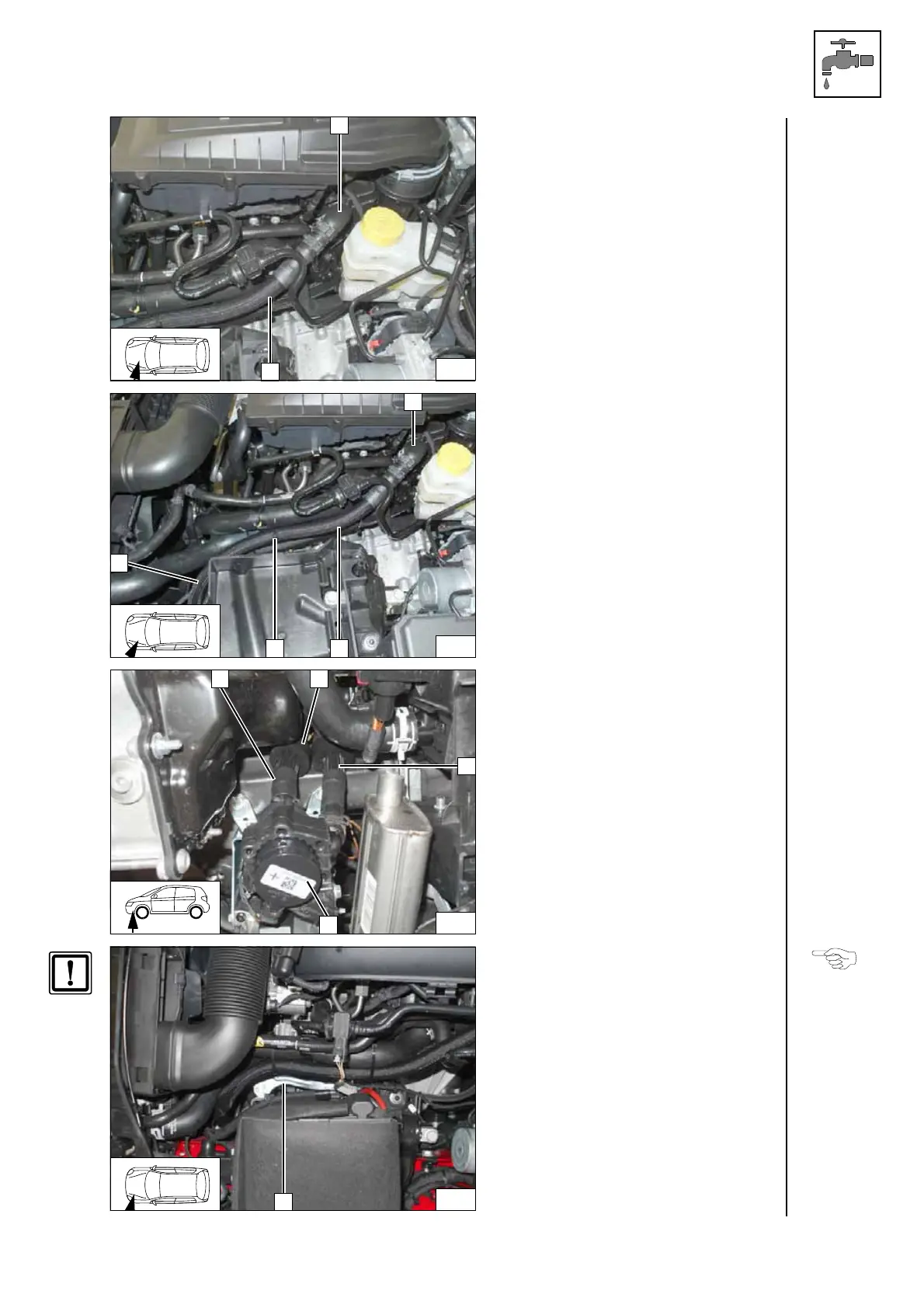

Audi A1
Connect-
ing engine
outlet
1 Cable tie
Routing in
engine
compart-
ment
1 Black (sw) rubber isolator
2 Circulating pump
Connect-
ing circulat-
ing pump
Ensure freedom of movement of shift sys-
tem
1 in case of manual transmission.
Shift gears to check this.
Routing in
engine
compart-
ment
123
A
B
124
A
B
B
1
125
2
B 1
E
126
1
