Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
43
Audi A1
A = 800
B = 90°, 18mm dia.
C = 90°, 18mm dia.
D = 960

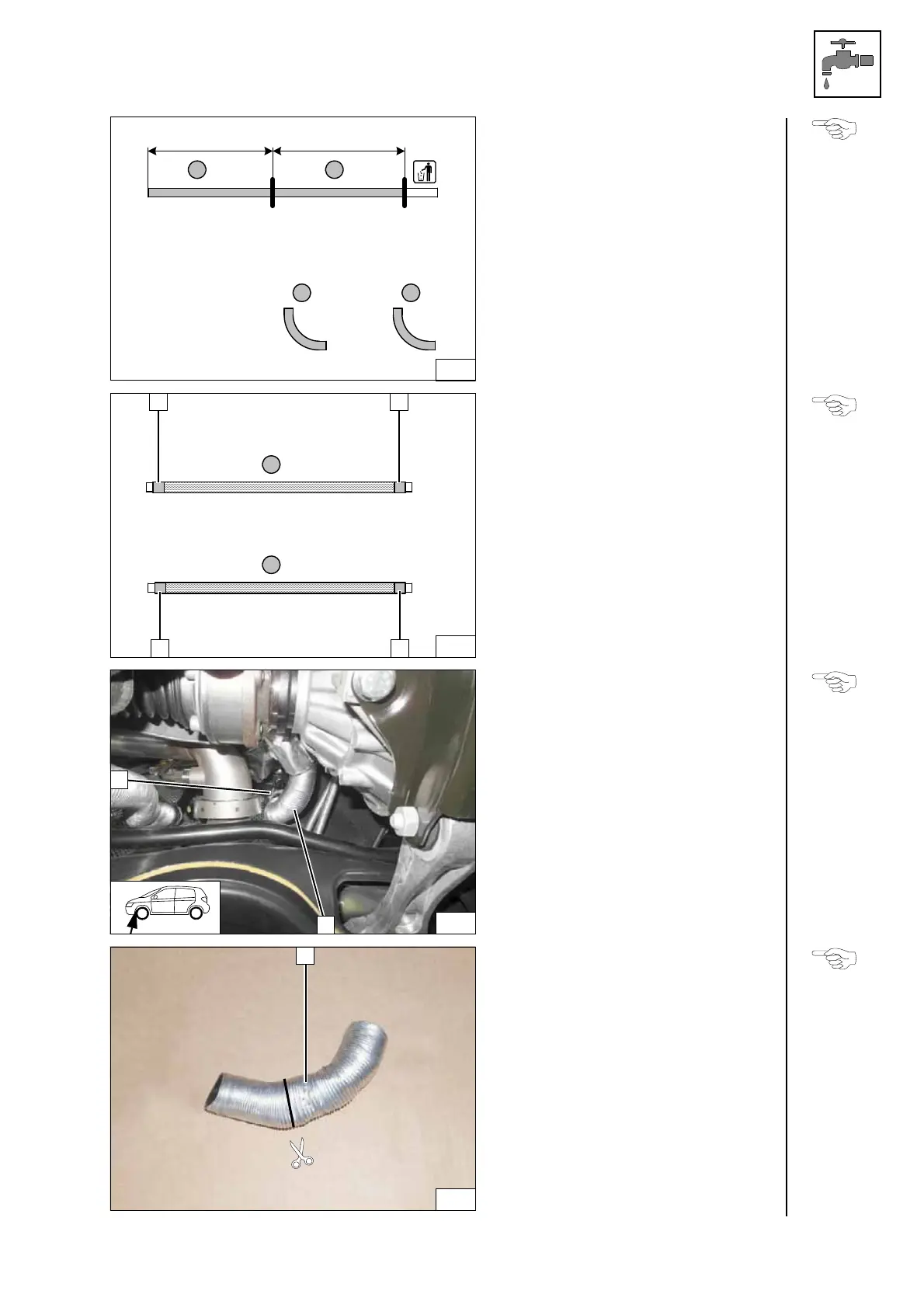

Cutting
hoses to
length
Slide on braided protection hoses and cut
to length.
1 Cut heat shrink plastic tubing to size,
50mm long [4x]
Installing
braided pro-
tection hoses
Remove hose of engine outlet / heat ex-
changer inlet
1 with engine outlet coupling
piece. Spring clip
2 will be reused.
Cutting
point
Pull off heat protection hose 1 and cut at
the marking.
Cutting
point
D
A
CB
129
A
D
1
1 1
130
1
131
1
2
132
1
