Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
44
Audi A1

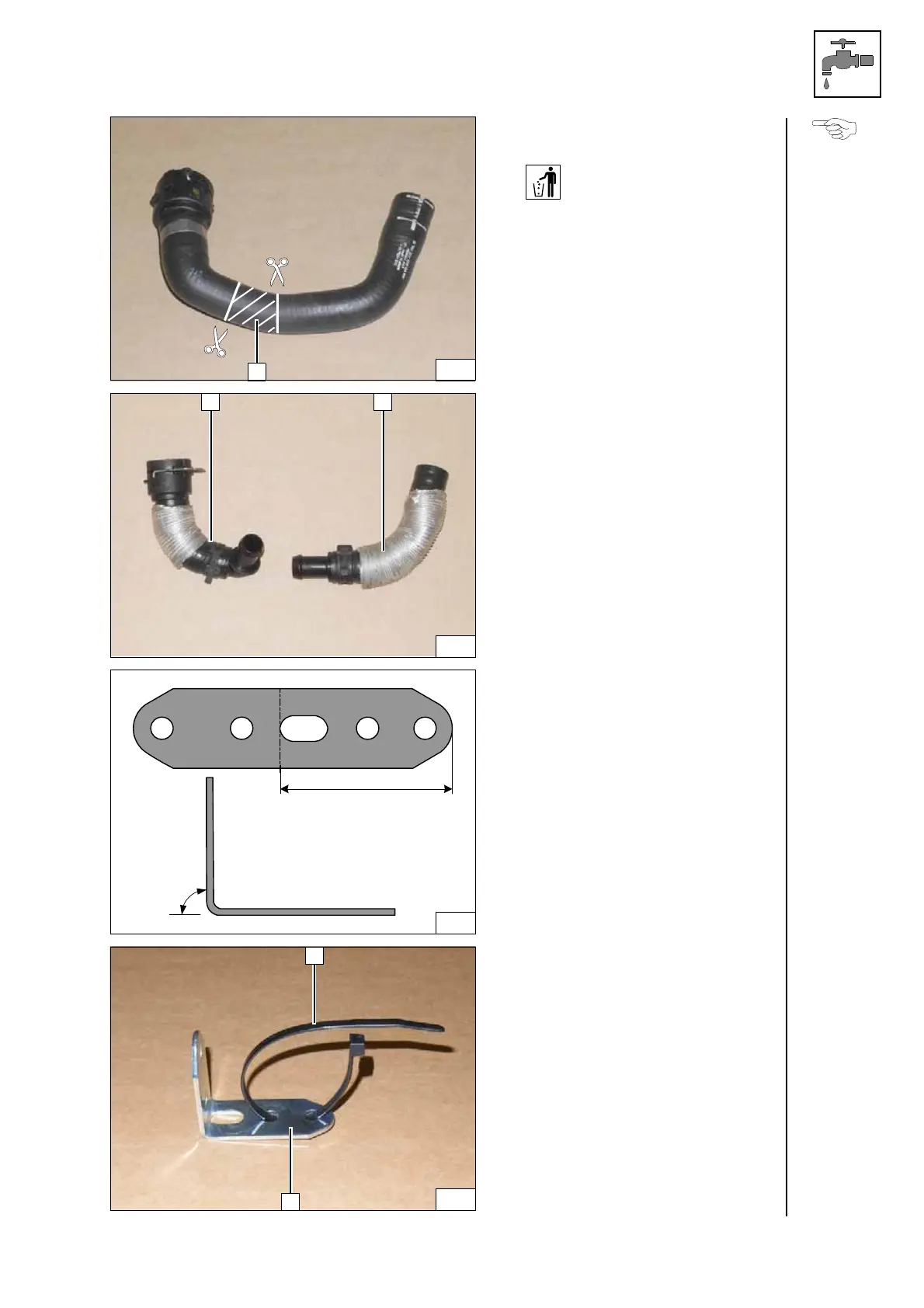

Cut off hose on engine outlet/heat ex-
changer inlet at markings.
X =
Cutting
point
1 Engine outlet hose section
2 Heat exchanger inlet hose section
Preparing
hoses
Preparing
perforated
bracket D
1
Cable tie through both holes, do not
tighten
2 Perforated bracket D
Preparing
perforated
bracket D
133
X
134
1 2
55
90°
135
136
1
2
