Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
53
Audi A1

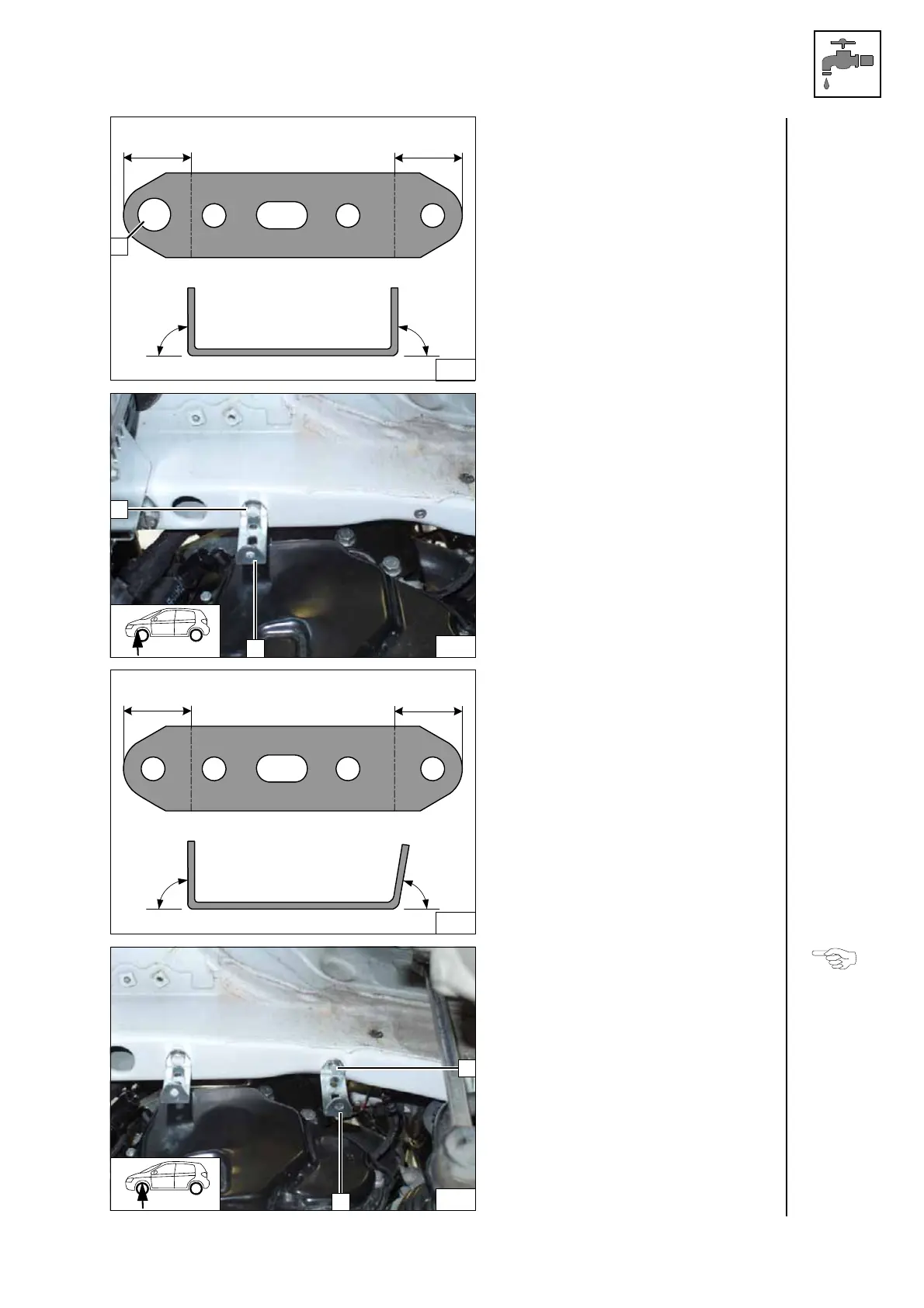

1 Drill out hole to 8.5 mm dia.
Preparing
perforated
bracket D
1 Perforated bracket D
2 M8x20 bolt, spring lockwasher
Installing
perforated
bracket D
Preparing
perforated
bracket E
Install perforated bracket E 2 with 80° an-
gle bracket on frame side member.
1 M6x20 bolt, spring lockwasher
Installing
perforated
bracket E
20
20
90°
90°
164
1
165
1
2
20
20
80°
90°
166
167
2
1
