Audi A1

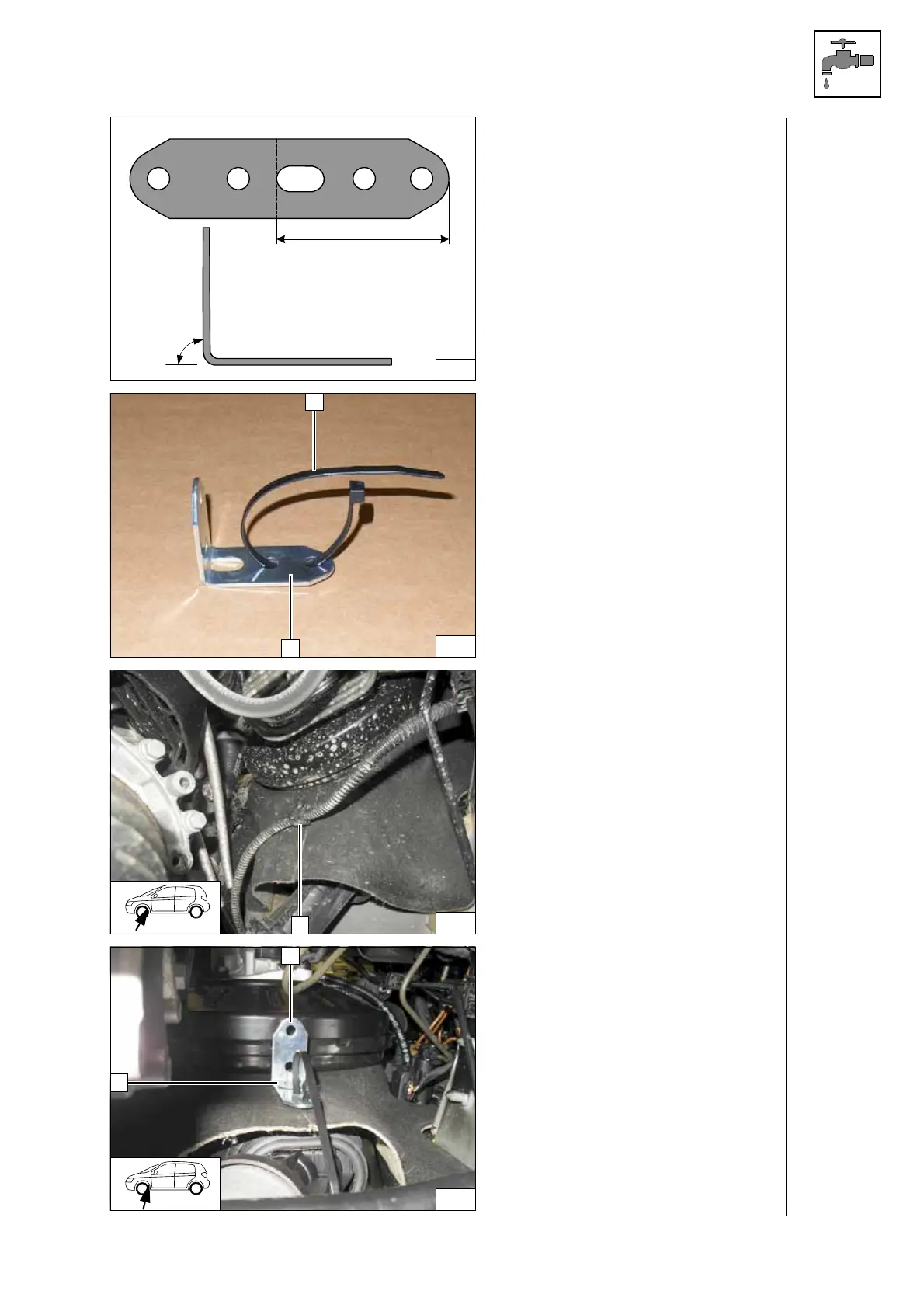

Preparing
perforated
bracket F
1 Cable tie through both holes, do not
tighten
2 Perforated bracket
Preparing
perforated
bracket F
1 Wiring harness bracket
Removing
wiring har-
ness brack-
et
1
Plate nut on original vehicle stud bolt
2 Perforated bracket F
Installing
perforated
bracket F
55
90°
168
169
1
2
170
1
171
1
2
