Webasto thermo top evo

Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
25
VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb
1 M6 flanged nut

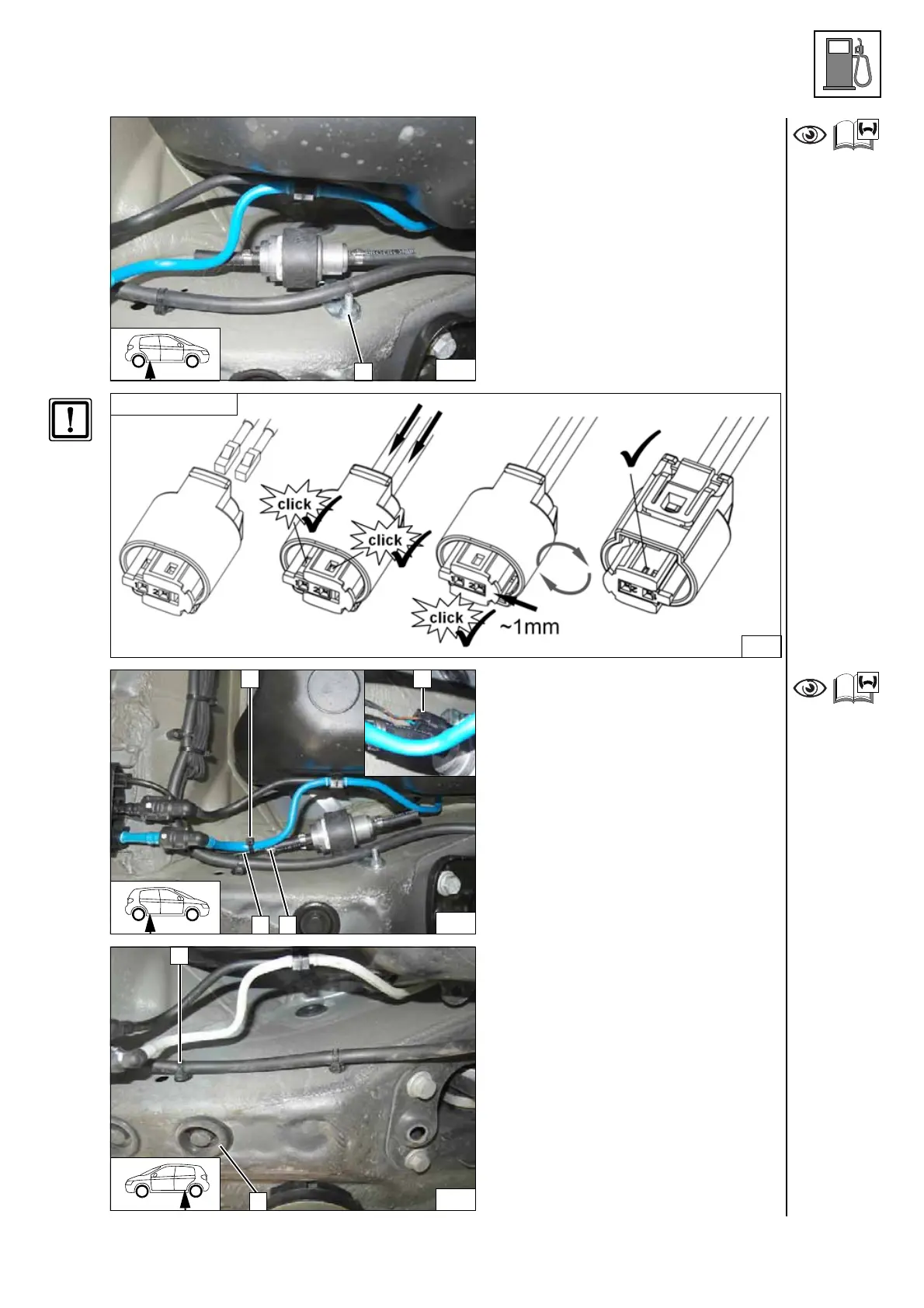

Installing me-
tering pump
Complet-
ing meter-
ing pump
connector
1 Cable tie
2 Metering pump wiring harness, con-
nector X7 mounted
3 10 mm dia. clamp
4 Fuel line of heater
Connect-
ing meter-
ing pump
Version 2
1 Detach retaining clip from hole (if
present)
2 Remove cover cap (will be remounted
later)
Preparing
installation
location of
metering
pump
56
1
Pin assignment is not relevant.
Connector X7
57
58
1
4
2
3
1
2
59
