Webasto thermo top evo

Ident. No.: 1325133C_EN Status: 09.06.2017 © Webasto Thermo & Comfort SE
26
VW Golf VII / Golf VII Sportsvan / Passat and Skoda Superb

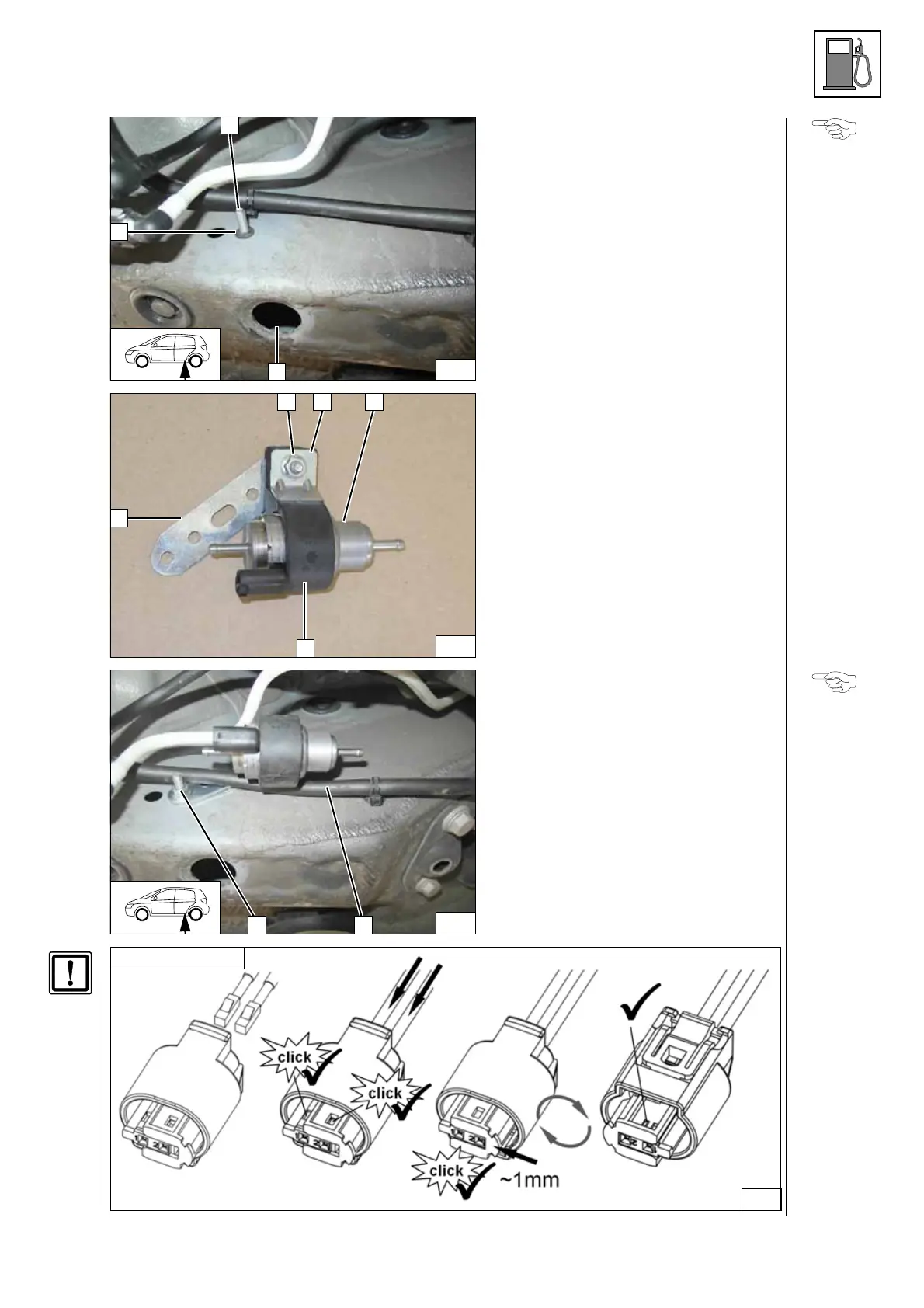

Insert M6x20 bolt 1 through opening 2 into
hole.
3 Lock washer
Preparing
installation
location of
metering
pump
1 M6x25 bolt, flanged nut
2 Support angle bracket
3 Metering pump
4 Metering pump mount
5 Perforated bracket
Premount-
ing meter-
ing pump
Route original vehicle wiring harness 1 as
shown.
2 M6 flanged nut
Installing
metering
pump
Complet-
ing meter-
ing pump
connector
60
1
2
5
61
21 3
5
4
62
2 1
Pin assignment is not relevant.
Connector X7
63
