TRC66-86 *** 16
2.2 Transport
Short distances on the job site can be covered by the
compactor under its own power in accordance with
paragraph 2.6.1.
For transporting the compactor over long distances,
the machine can be lifted on an appropriate transport
vehicle (truck, trailer) by means of a crane. In addition,
the compactor can be driven on a trailer suited for this
purpose.
Caution!
Do not exceed the maximum gradeability of
the machine when driving the compactor on
a trailer.

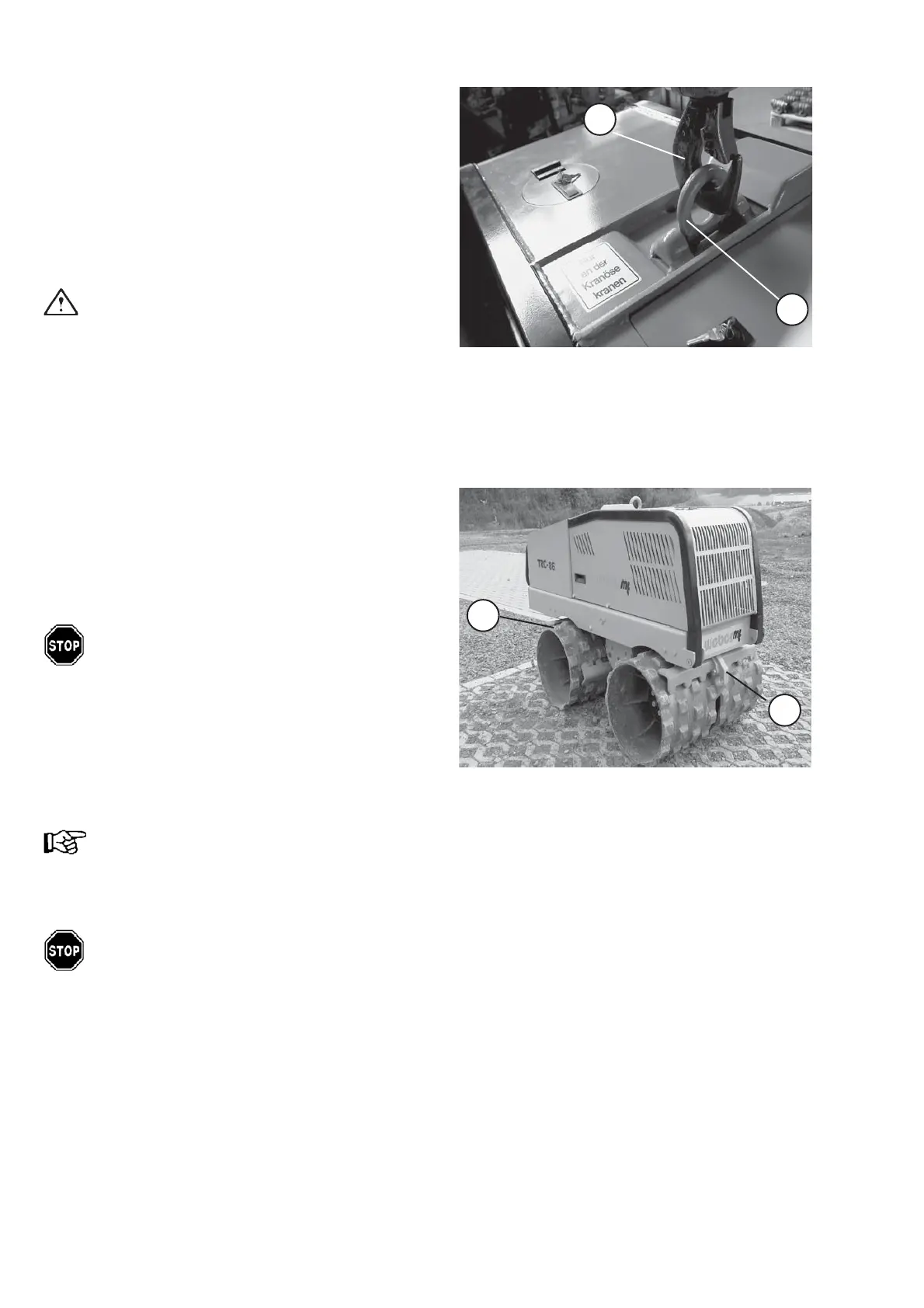

2.2.1 Loading by Crane
- Put the compactor out of operation, as
described in paragraph 2.9.
- Hang the crane hook (1/1) in the lifting lug
(1/2).
Danger!
Use a lifting tackle and a crane of a
sufficient lifting capacity only.
- Lift the compactor onto the transport vehicle.
- Fix an appropriate lashing tackle to the lashing
points (2/1) and properly fasten the compactor on
the trailer.
Caution!
Refer also to the operation manual of the
trailer manufacturer!
Danger!
Never transport the compactor when
unsecured!
Figure 1
Figure 2
1
2
1
1
