2.5 Starting - Manual Operation
- Open the anti-vandalism flap (23/1).
- Move the drive levers (24/1) to the vertical position.
- Unlock the emergency stop switch (24/2).
- Turn the "working speed" switch (24/3) to the "START"
position.
- Turn the switch (24/4) to the position.
- Turn the switch (24/5) to the "automatic" position.
- Turn the ignition key (26/1) to the "1" position.
- Push the engine speed adjusting knob (25/2).
As soon as the ignition key is in the "1" position, the
following pilot lamps will flash:
Engine lamp (26/2)
Alternator charge warning light (26/3)
Low engine oil pressure indicator light (26/4)
Temperature pilot lamp (26/5)
Air filter service indicator light (26/6)
Pilot lamp, glow system (26/7)
Engine speed adjustment (26/8)
When the pilot lamp of the glow system has gone out (26/
7):
- Turn the ignition key (26/1) to the "II" position.
As soon as the engine starts:
- Release the ignition key (26/1).
All pilot lamps, except the engine lamp (26/2) and
the engine speed adjustment lamp, must go out.
If this does not happen, the engine must be turned
off immediately. Eliminate the source of the
malfunction before trying to start the engine again.
If the ignition key does not automatically return to
the "1" position, stop the machine immediately -
risk of starter damage because of starter running
during machine operation.
- Allow the engine to warm up for some minutes (according
to the ambiant temperature).

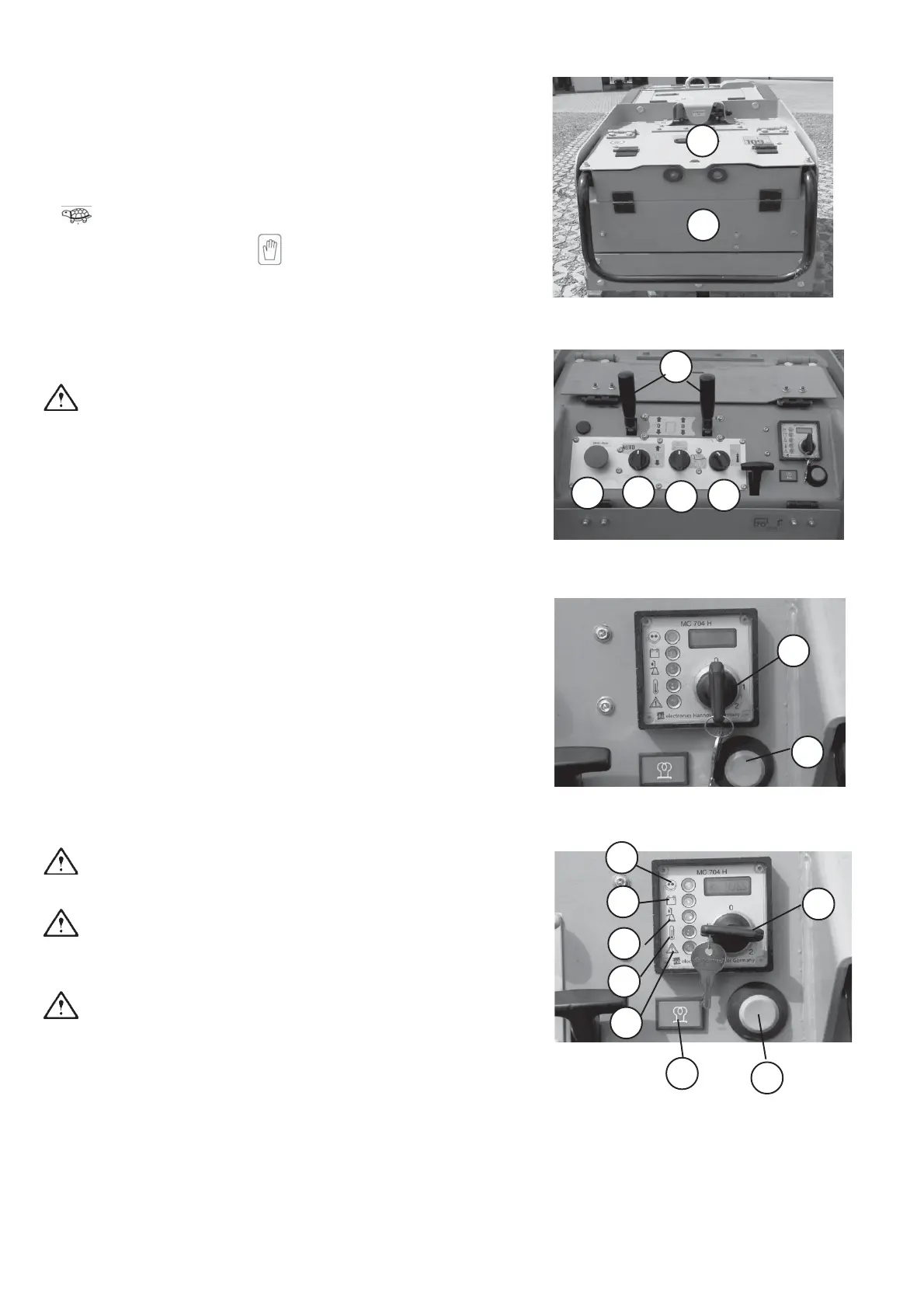

Figure 23
