Weber mt TRC 66 - Replacing the Hydraulic Oil Filter

TRC66-86 *** 39
Figure 13
Figure 14
Figure 15

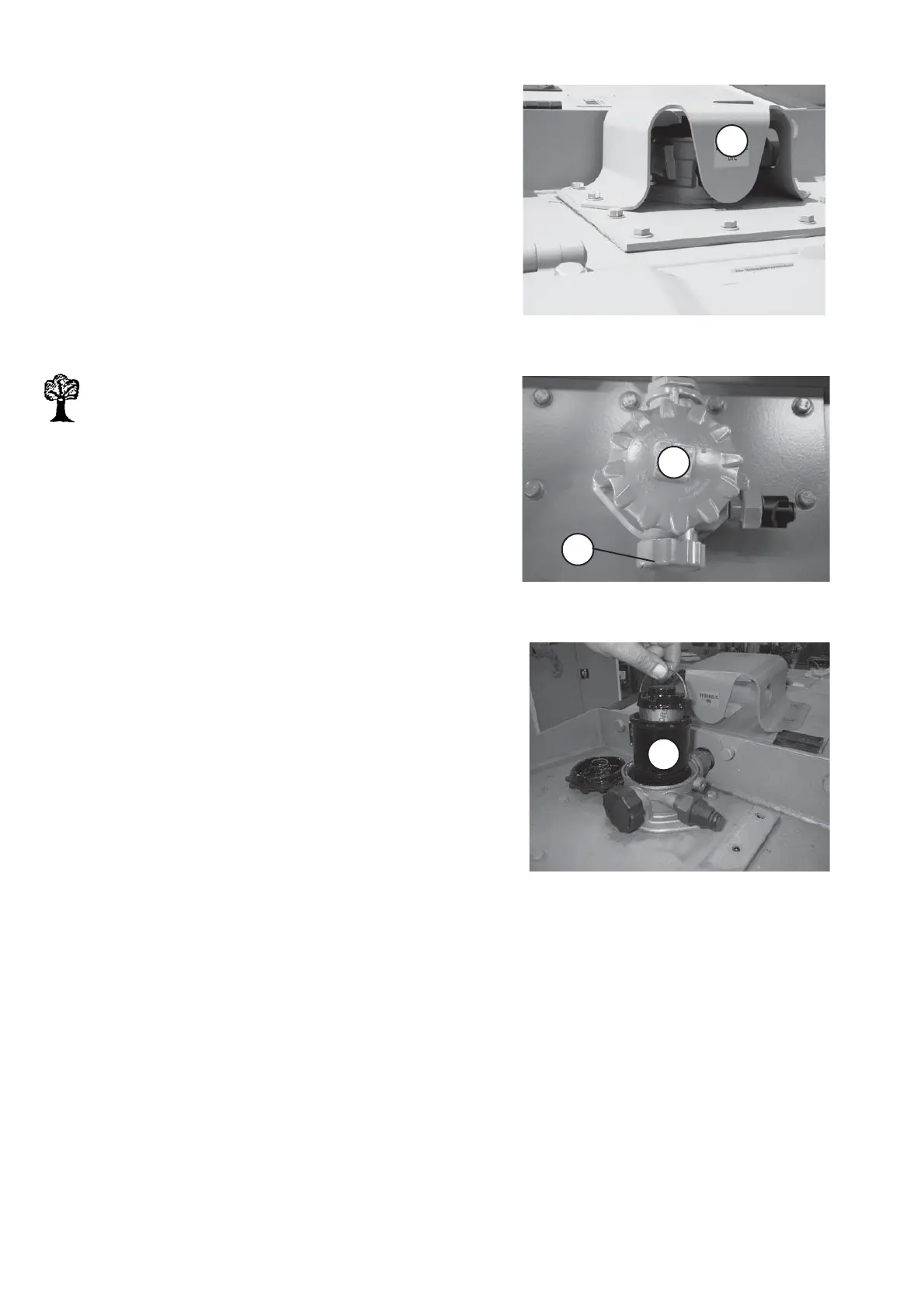

3.3.5 Replacing the Hydraulic Oil Filter
- Put the compactor out of operation as described in
paragraph 2.9.
- Undo the four screws and remove the protection hood
(13/1) of the hydraulic oil filter (14/1).
- Unscrew the cover (14/2) of the hydraulic oil filter (14/1).
- Take out the filter element (15/1) and replace it by a new
filter element.
- Screw the cover (14/2) down to the hydraulic oil filter.
- Screw the protection cover (13/1) down to the hydraulic
oil filter (14/1).
Danger to the environment !
Use a cloth to wipe up any spilled hydraulic oil.
Dispose of oil-soaked cloth in an environmentally-
friendly manner.
