TRC66-86 *** 46
4.3 Repair and Maintenance Work

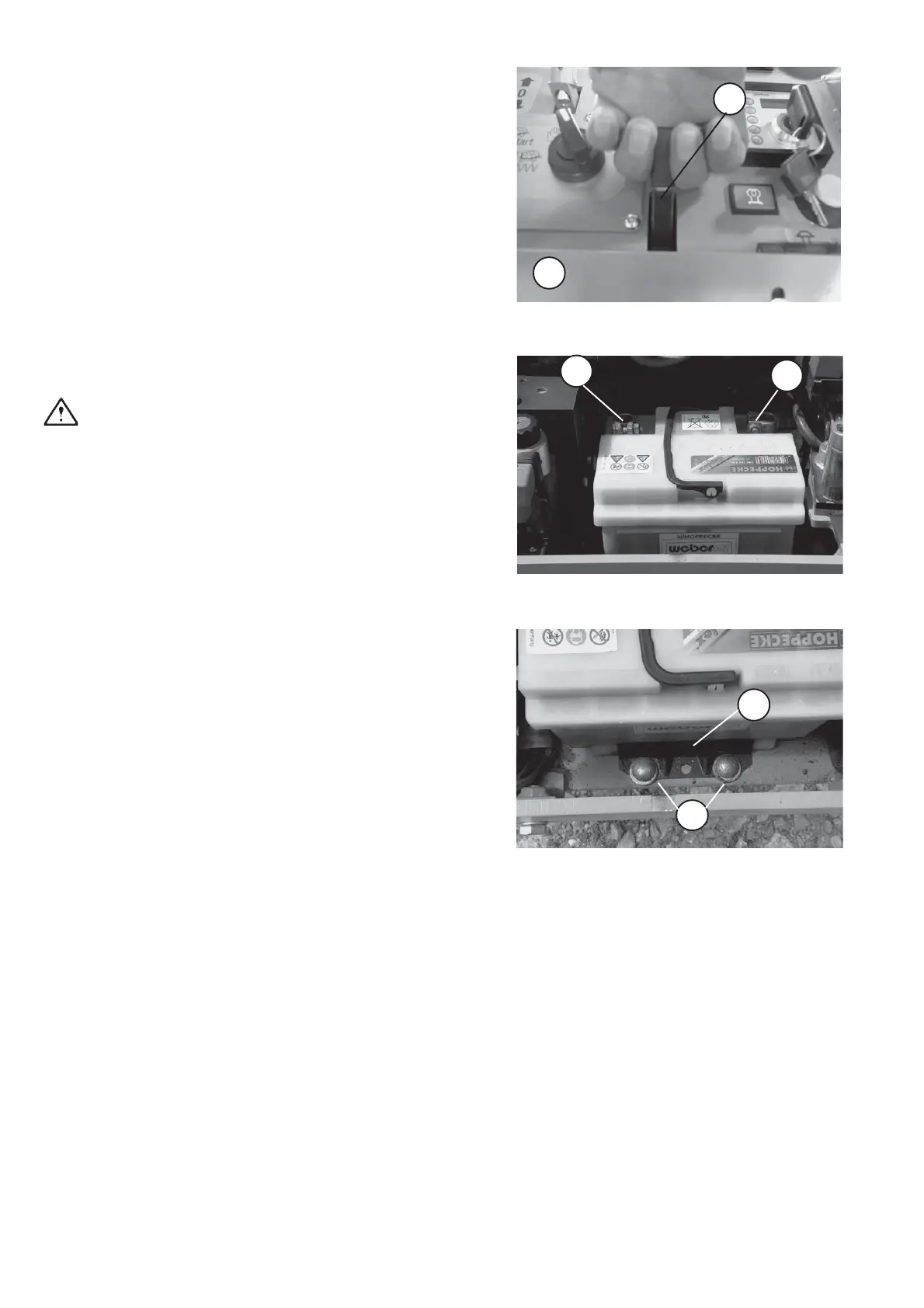

4.3.1 Replacing the Battery
- Put the compactor out of operation as described in
paragraph 2.9.
- Pull up the hood lock (1/2) and unlock the dashboard
(1/1).
- Pull up the dashboard (1/1) and turn it on the engine
console.
- Unscrew the clamps (2/1/2) from the battery terminals
and push the clamps aside
At first, unscrew the clamp (2/1) from the nega-
tive terminal.
- Undo the fastening screws (3/1) from the battery
holder (3/2) and remove the battery holder.
- Remove the battery.
- Proceed in inverse order to fit and install the new
battery.
Figure 1
Figure 2
Figure 3
1
2
1
2
1
2
