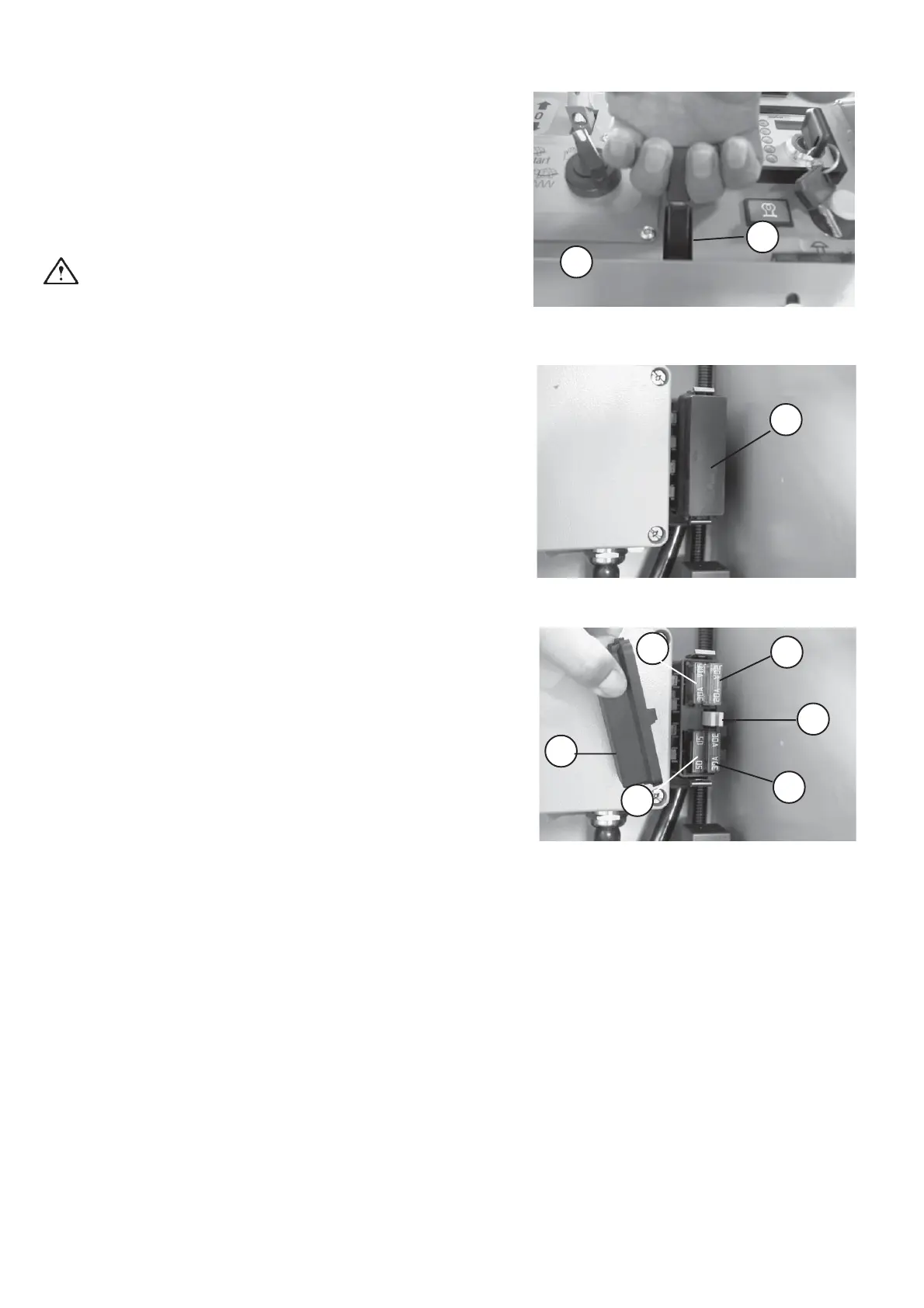

4.3.2 Checking/Replacing the Fuses
- Put the compactor out of operation as described in paragraph
2.8.
- Pull up the hood lock (4/2) and unlock the dashboard (4/1).
- Pull up the dashboard (4/1) and turn it on the engine console.
- Remove the cover (5/1 and 6/1) from the fuse box (6/2).
The fuses protect the following circuits:
6/3 20 Ampere ignition key
6/4 30 Ampere relay, engine speed adjustment
6/5 50 Ampere glow system
6/6 50 Ampere alternator
- Check the fuses.
- Replace the defective fuses.
