3.3.6 Changing the Hydraulic Oil
- Put the compactor out of operation as described in
paragraph 2.9.
- Open the engine hood as described in paragraph
3.3.1.
Caution!
Change the hydraulic oil at operating
temperature only.
- Open the cap (14/2) of the hydraulic tank .
- Have an appropriate drain pan at hand.
- Undo the cover of the drain valve (16/1).
- Screw the oil drain hose down to the drain valve
(16/2).
Caution!
As soon as the oil drain hose is screwed down
to the valve, the drain valve will open and oil
will escape.
Danger !
Danger of scalds because of hot oil.
When the used oil has been completely drained:
- Screw down the cover (16/1).
- Change the hydraulic oil (refer to paragraph 3.3.5).
Danger to the environment!
Dipsose of the used oil in an environmentally-
friendly manner.
- Add hydraulic oil through the hydraulic oil filter
(14/1) (refer to paragraph 3.4 for quantity and
specifications).
- Check the hyraulic oil level (refer to paragraph
2.4.4).
- Screw the cover down (14/2).
- Fit the protection cover (13/1) of the hydraulic oil
filter.

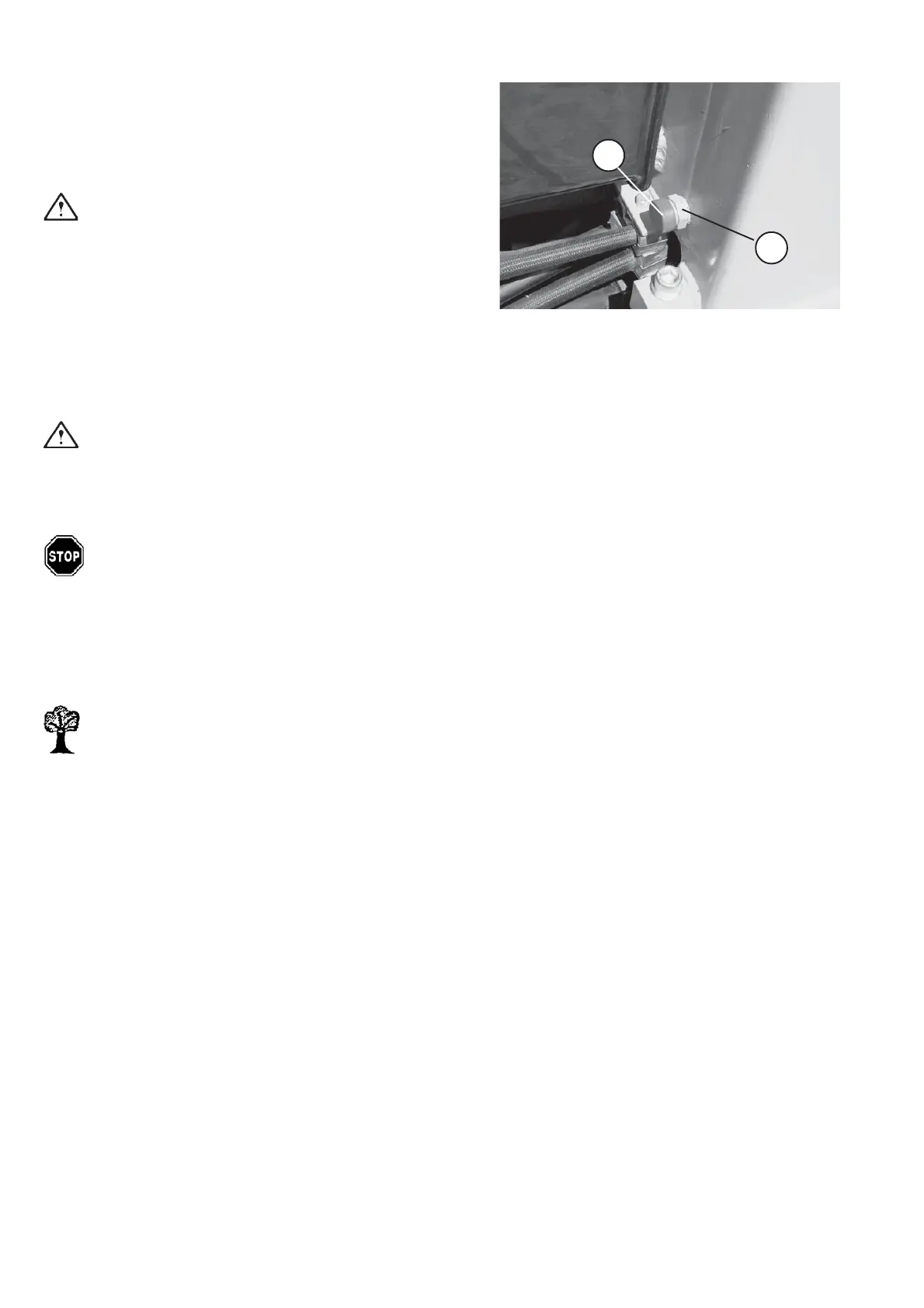

Figure 16
