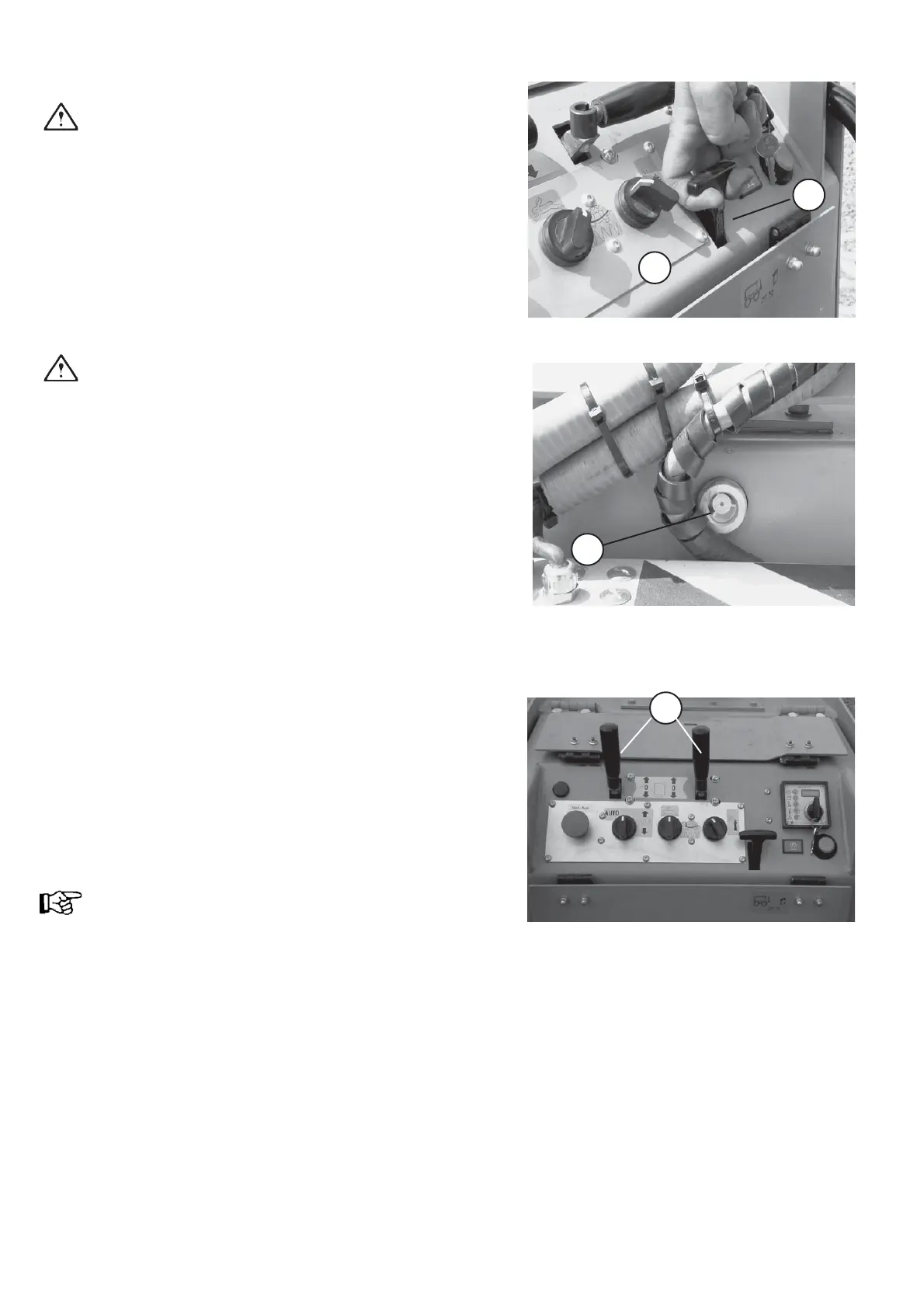

2.4.4 Checking the Hydraulic Oil Level
Caution!
Always check the hydraulic oil level with cold
hydraulic oil and the compactor in the horizontal
position.
- Unlock the dashboard (11/1) by pulling up the lock
(11/2).
- Fold up the dashboard (11/1) and turn it on the
engine console.
- Check the hydraulic oil level in the sight glass (12/1).
Caution!
The hydraulic oil level must be between the
center and the upper edge of the sight glass.
- If required, add hydraulic oil (refer to paragraph 3.4
for quantity and specifications).
- Check, and if required, eliminate any leaks identified.
2.4.5 Checking the Proper Function of
the Controls and Safety Devices
- Move the drive levers (13/1) to the vertical
position.
- Start the compactor (refer to paragraph 2.5).
- Actuate the drive levers (13/1) and check it for proper
functioning.
2.4.5.1 Checking the Service Brake and
the Parking Brake
- Start the compactor (refer to paragraph 2.5).
- Run the compactor (refer to paragraph 2.6).
- Let the compactor idle (release the drive levers (13/
1)).
Important!
The compactor is automatically braked by the
hydrostatic travel drive.
- Switch off the engine, the multiple disk brake acts as
a parking brake.
