Weber mt TRC 66 - Fitting the Remote Control Unit

TRC66-86 *** 22
2.4.7 Fitting the Radio Remote Control Unit

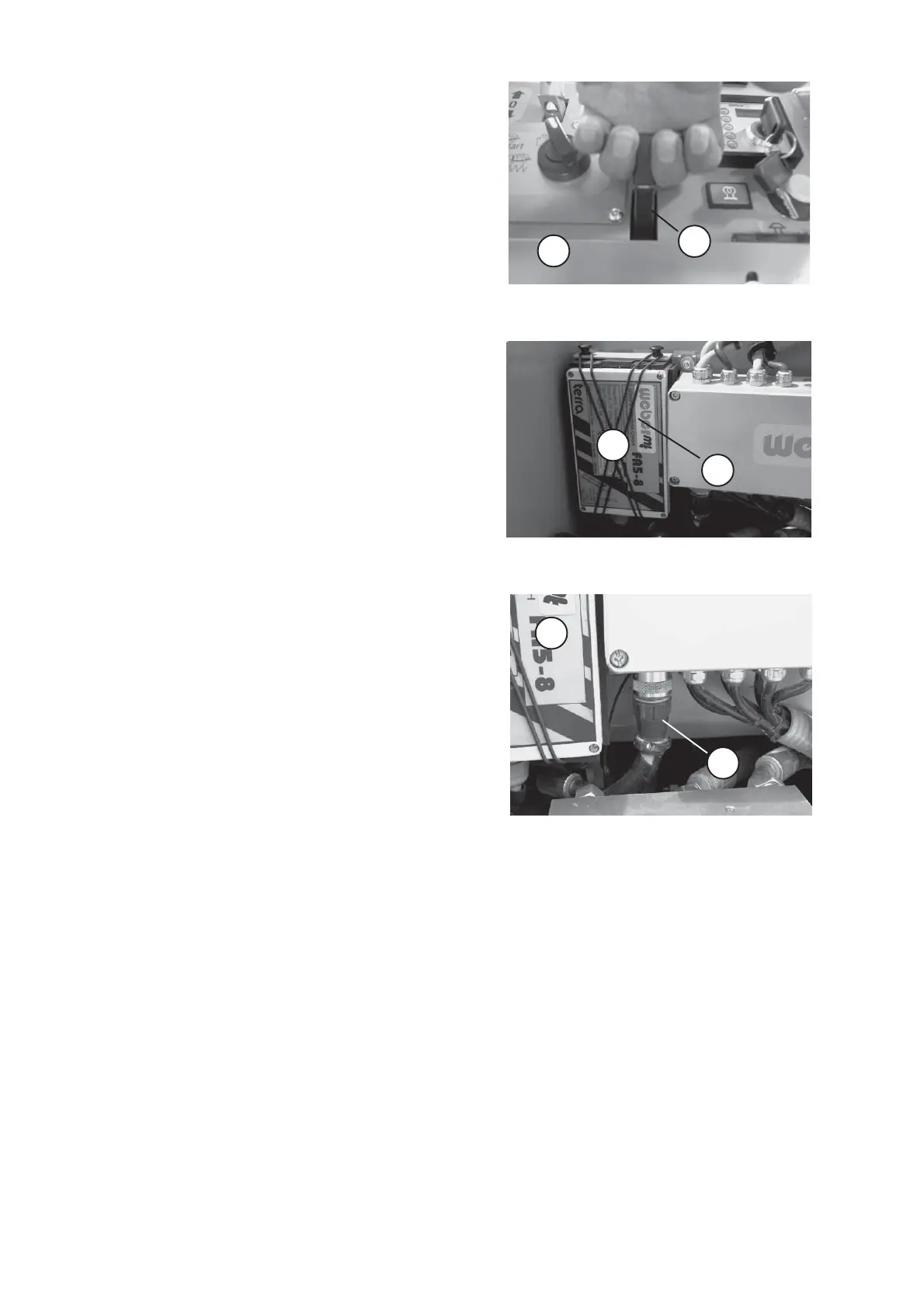

Figure 17
Figure 18
Figure 19
- Pull up the hood lock (17/1) to unlock the dashboard (17/2).
- Pull up the dashboard (17/2) and turn it on the engine
console.
- Fasten the receiver (18/1) by means of the rubber rings
(18/2) provided for this purpose.
- Connect the plug (19/2) of the receiver (19/1) to the
machine's electrical system as shown.
