WEG MVW3000 User Manual

5
DETAILED PARAMETER DESCRIPTION
Gain
P0252, P0254, P0256,
P0258, P0260 e P0262
AOx
P0251
P0253
P0255
P0257
P0259
P0261
Speed reference
Torque current
Power
Effective speed
PID process variable
Inverter temperature
Total reference
Output current
PID Reference
Trace channels
Active current
PLC
Output voltage

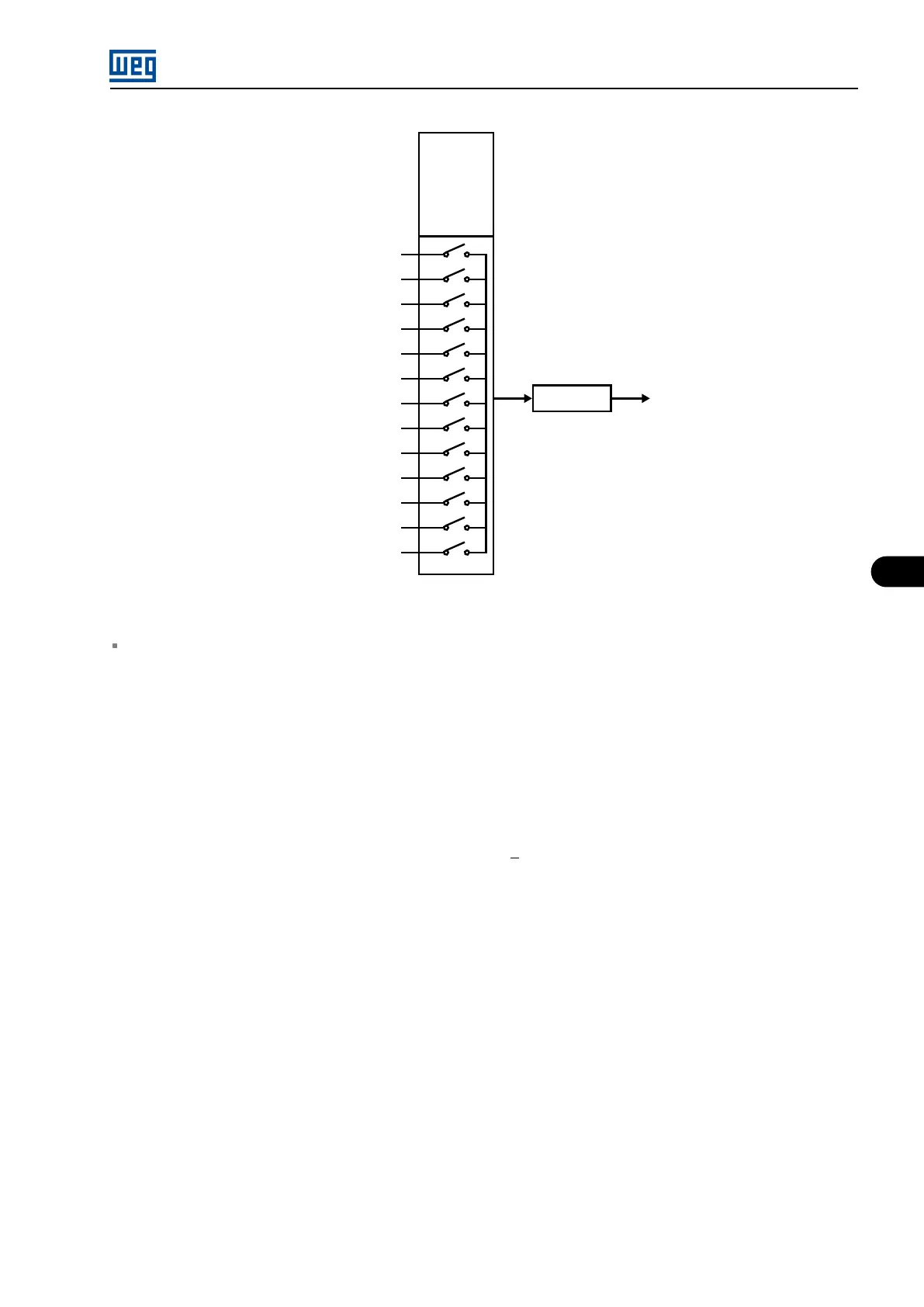

Figure 5.31: Block diagram of the analog outputs
Analog output indication scale:
– Full scale = 10 V: for outputs AO1, AO2 located on the MVC4 control board and AO3 and AO4 on the EBA
optional board.
– Full scale = 20 mA for outputs AO1’ and AO2’ located on the optional EBB board and AO5, AO6 located
on the MVC4 control board.
– Speed reference (P0001): full scale = P0134.
– Total reference: full scale = P0134.
– Actual speed (P0002): full scale = P0134.
– Output current: full scale = 1,5 x P0295.
– PID Process Variable: full scale = 1,0 x P0528.
– PID reference: full scale = 1,0 x P0528.
– Inverter temperature = 200 °C.
– Output power: full scale = 2.0 x P0295 x P0296 x
√
3.
MVW3000 | 5-53
