Installation and Operation Manual - SSW-05 Plus
12.3. Setting of the deceleration ramp:
This setting should be used only for deceleration of pumps in order to reduce hydraulic shocks.
This setting must be made in order to obtain the best pump performance.
12. SSW-05 PLUS SETTING:
12.1. Pedestal Voltage Setting:
Set the pedestal voltage to a value that the motor starts to run as soon as run command is given by
the SSW-05 Plus.
12.2. Setting of the acceleration ramp time:
Set the value so that the motor accelerates to the rated speed.
Note:
Please consider that in the cases where rated SSW-05 Plus current is equal to the rated
motor current, the SSW-05 Plus can be operated, at maximum, during 10 seconds at 3 x
I
N.
Trimpot for the
pedestal voltage
setting
Trimpot for
the acceleration
Ramp time
setting
The dot
indicates the
factory default

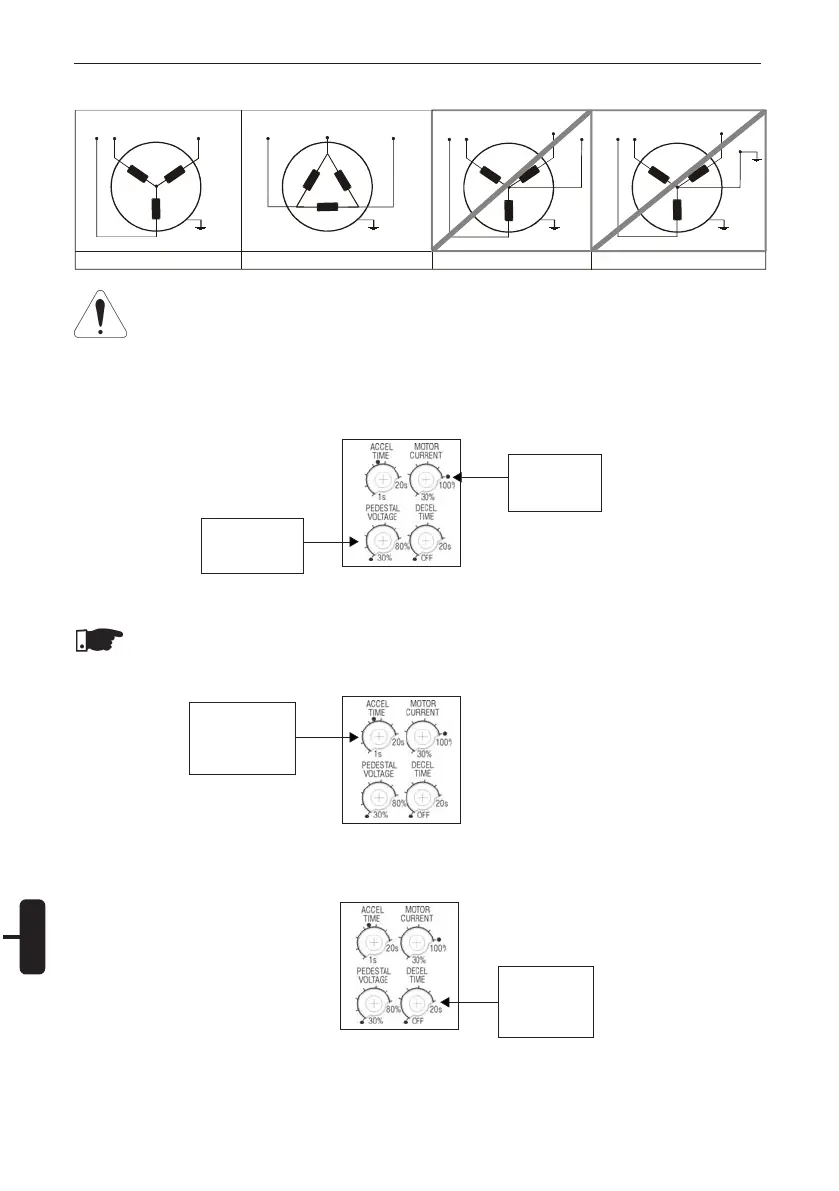

11.5. Motor Connection:
UV
W
N
U
V
W
UV W U
V
W
Attention
Only the motor frame shall be grounded.
CORRECT CORRECT
INCORRECT INCORRECT
Trimpot for the
deceleration
Ramp time
setting
