Installation and Operation Manual - SSW-05 Plus
8. CAPACITY OF THE POWER SUPPLY LINE:
The SSW-05 Plus is suitable to be used in circuits that can not supply more than X A
RMS
(according
to table below) symmetric Ampères, Y Volts maximum:
SSW-05 Plus
Model
3A
10A
16A
23A
30A
45A
60A
85A
Y = 220- 575V
X (kA)
5
5
5
5
5
5
5
10
9. TABLE OF FUSES AND CONTACTORS (SEE ITEM 11):
SSW-05 Plus
Model
3A
10A
16A
23A
30A
45A
60A
85A
Contactor
(K1)
CWM09
CWM12
CWM18
CWM25
CWM32
CWM50
CWM65
CWM95
Fuse
(F1, F2,F3)
Type D 10A
Type D 16A
Type D 25A
Type D 35A
Type D 50A
Type D 63A
Type NH 100A
Type NH 125A
Fuse
(F11, F12, F21)
Type D 6A
Size
1
2
Width
mm (in)
LLa
59 60.4
(2.32) (2.38)
79 80.4
(3.11) (3.17)
Depth P
mm (in)
145 (5.70)
172 (6.77)
Fixing A
mm (in)
51 (2.00)
71 (2.79)
Fixing B
mm (in)
122 (4.80)
177 (6.17)
Fixing
M4 screw/ Rail
M4 screw/ Rail
Weight
kg (Lb)
0.74 (1.63)
1.67 (3.68)
Height
mm (in)
HHa
130 130.7
(5.12) (5.15)
185 185.7
(7.28) (7.31)
Fixing D
mm (in)
61 (2.40)
99 (3.89)
Notes
1) The SSW-05 Plus can be fixed on DIN 35mm rail.
2) If the fastening is made through a M4 bolt, bolt tightening torque should not be higher
than 1 Nm (8.85 Ib in). The use of a top fastening support is required as shown in figure
bellow:
10. DIMENSIONS:

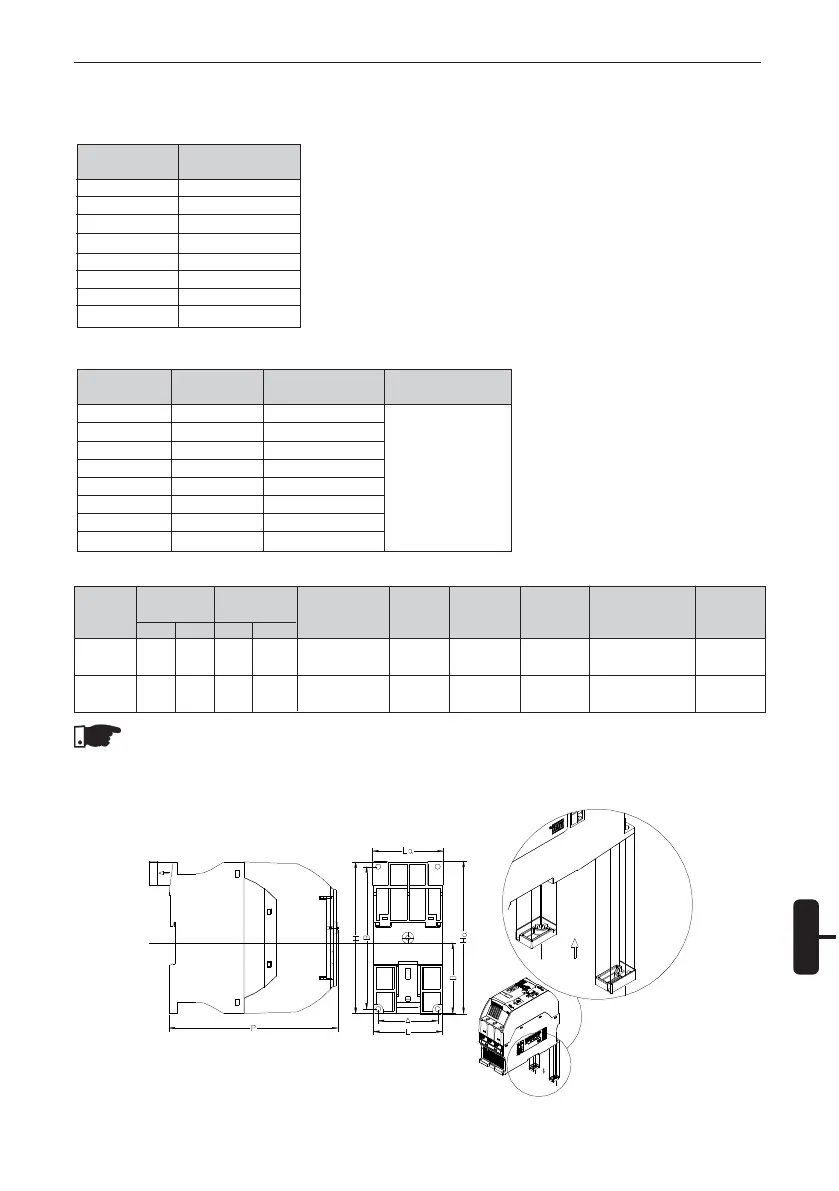

Figure 10.1 - SSW-05 Plus Dimensions
