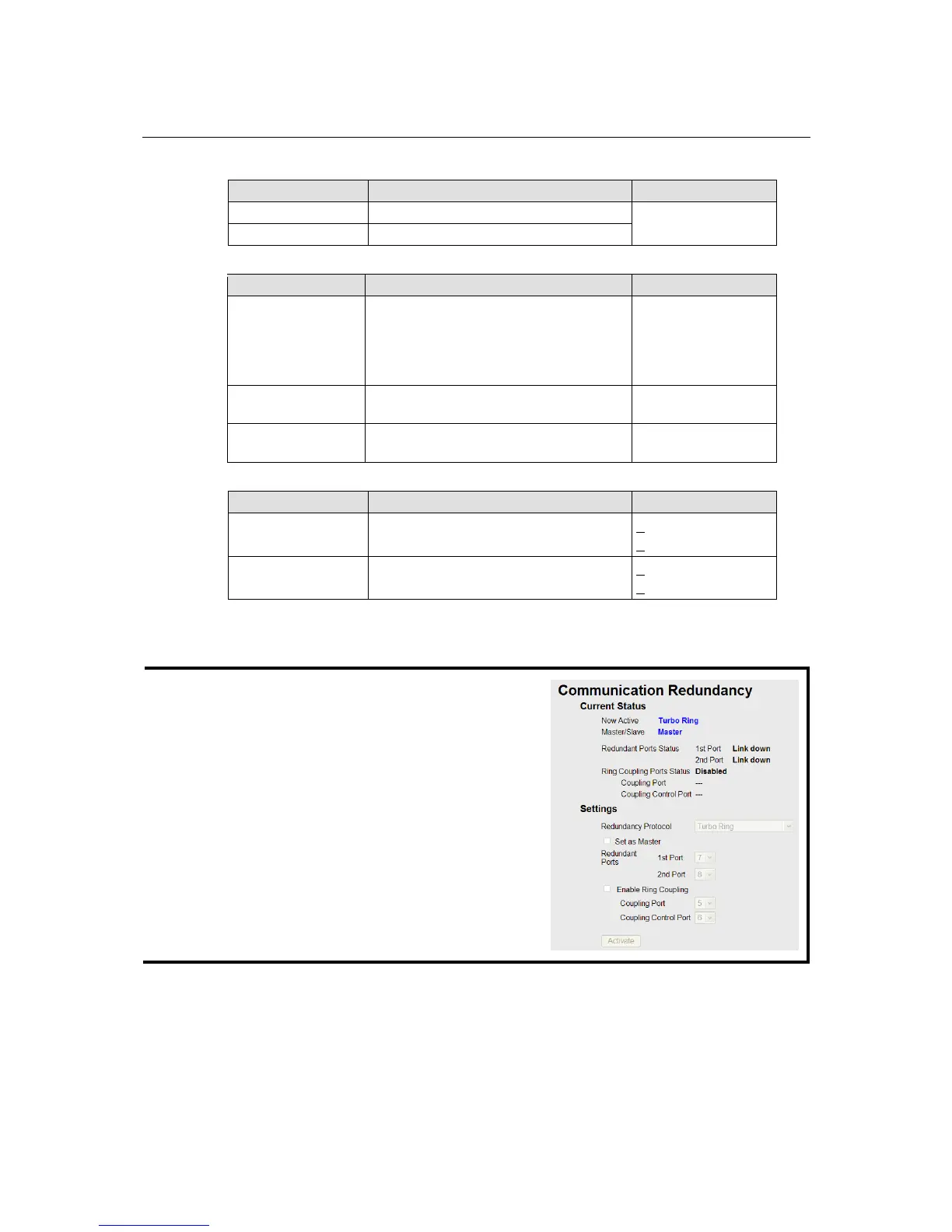

IE-SW-VL08M Series User’s Manual Featured Functions
3-30
Enable Ring Coupling
Setting Description Factory Default
Enable Select this switch as Coupler
Disable Do not select this switch as Coupler
Not checked
Coupling Mode
Setting Description Factory Default
Dual Homing
Select this item to change to the Dual
Homing configuration page
Primary Port: Port 5
Backup Port: Port 6
Primary Port: Port 2
Backup Port: Port 3
Ring Coupling
(backup)
Select this item to change to the Ring
Coupling (backup) configuration page
Port 5
Port 2
Ring Coupling
(primary)
Select this item to change to the Ring
Coupling (primary) configuration page
Port 5
Port 2
Primary/Backup Port
Setting Description Factory Default
Primary Port
Select any port of the switch to be the
primary port.
P
ort 2
P
ort 5
Backup Port
Select any port of the switch to be the
backup port.
P
ort 3
P
ort 6
NOTE
The Turbo Ring DIP Switches located on the
IE-SW-VL08M‘s outer casing can be used to configure
the devices’s Turbo Ring protocols. (For details on how
to do this, refer to “Configuring Basic Settings—Turbo
Ring DIP Switch” section in this manual.)
If you use the web interface, console interface, or
Telnet interface to enable the Turbo Ring DIP
Switches, and then set DIP Switch 4 on the switch’s
outer casing to the “ON” position, you will not be able
to use the web interface, console interface, or Telnet
interface to change the status of the DIP Switch. In this
case, the Communication Redundancy settings will
be “grayed out” in the web browser as shown in the
following figure:
