IE-SW-VL08M Series User’s Manual Featured Functions
3-50
Packets from device H will travel through “Trunk Port 3” with PVID 3. Switch A will recognize
its VLAN and pass it to port 2, but will not remove tags received successfully by device D.
y Packets from device E will travel through “Trunk Port 3” with tagged VID 4. Switch B will
recognize its VLAN, pass it to port 7, and then remove tags received successfully by device I.
Packets from device I will travel through “Trunk Port 3” with tagged VID 4. Switch A will
recognize its VLAN and pass it to port 2, but will not remove tags received successfully by device
E.

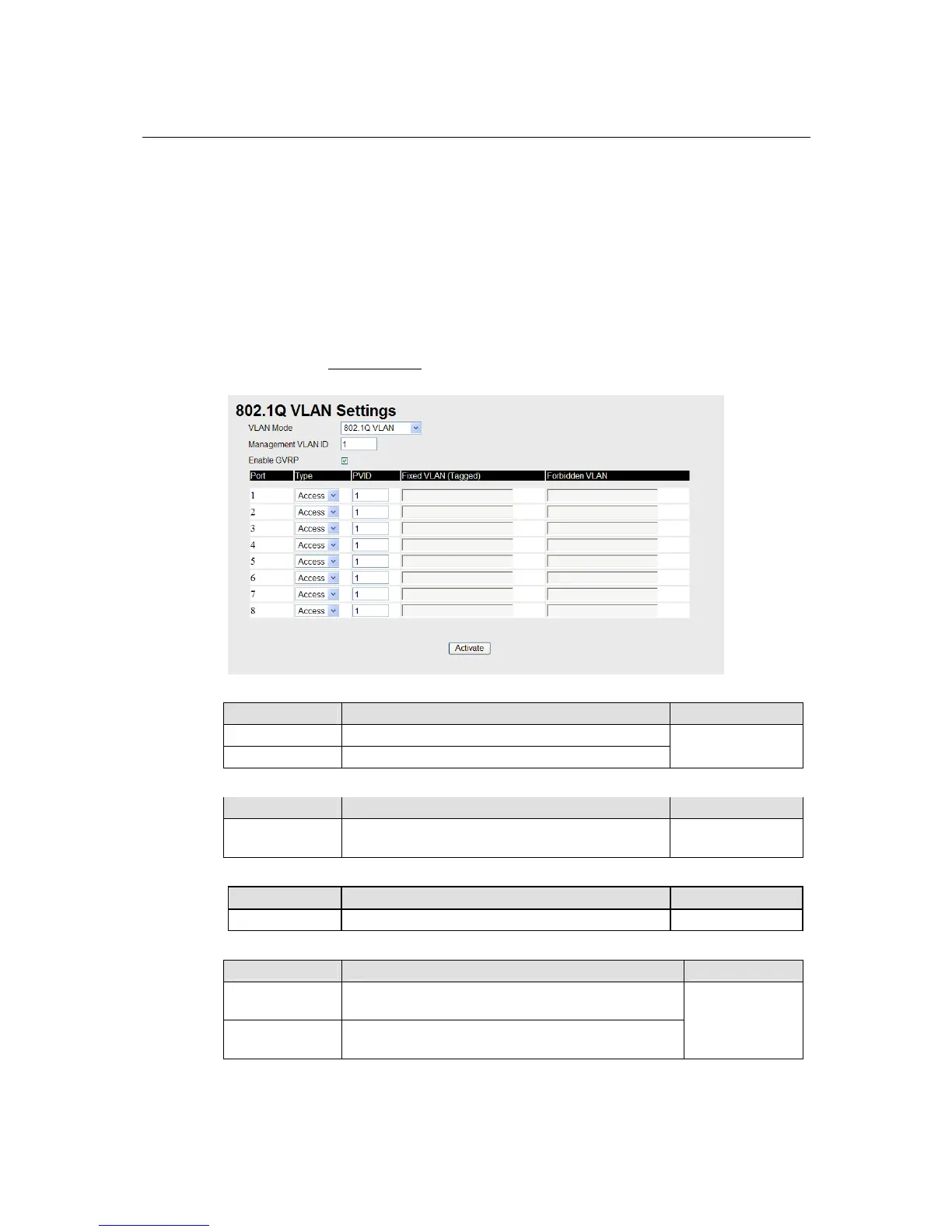

Configuring Virtual LAN
VLAN Settings
To configure the IE-SW-VL08M’s 802.1Q VLAN, use the VLAN Setting page to configure the
ports.
VLAN Mode
Setting Description Factory Default
802.1Q VLAN Set VLAN mode to 802.1Q VLAN
Port-based VLAN Set VLAN mode to Port-based VLAN
802.1Q VLAN
Management VLAN ID
Setting Description Factory Default
VLAN ID ranges
from 1 to 4094
Set the management VLAN of this Ethernet Switch 1
Enable GVRP
Setting Description Factory Default
Enable/Disable Select the option to enable/disable the GVRP function. Enable
Port Type
Setting Description Factory Default
Access This port type is used to connect single devices without
tags.
Trunk Select “Trunk” port type to connect another 802.1Q
VLAN aware switch or another LAN that combines
Access
