Weidmüller Switch Configuration Utility
A-2
Starting Weidmüller Switch Configuration Utility
To start the software locate and then run the executable file WM_Switch_Utility.exe.
NOTE
You may download the Weidmüller Switch Configuration Utility from the Weidmüller website
using the following path:
1. Open
www.Weidmueller.com/Downloads
2. Select page “Software”
3. Select page “Industrial Ethernet”
4. Select category “Value and Premium Line managed Switches – Software Tools”
5. Download “Weidmueller Switch Configuration Utility”

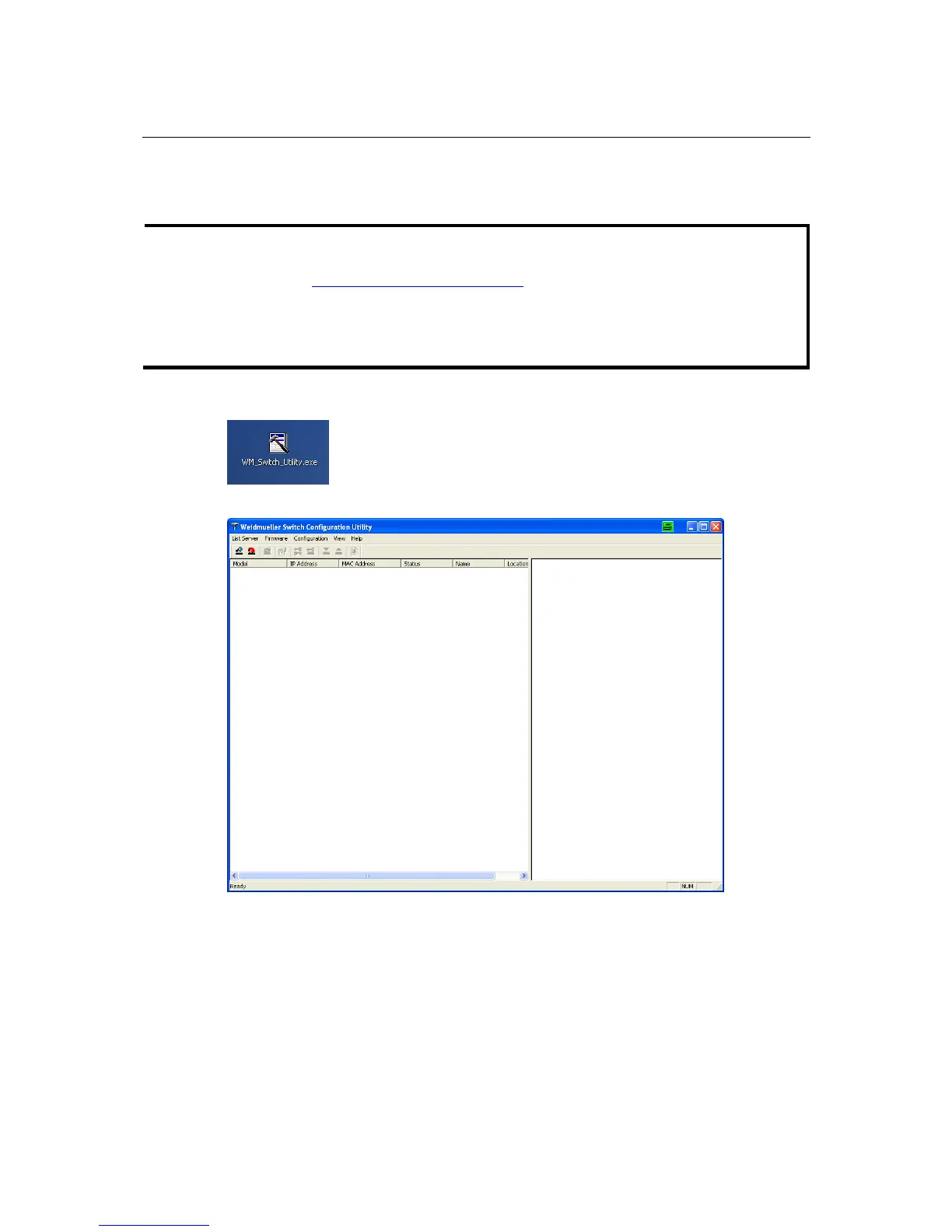

For example, if the file was placed on the Windows desktop, it should appear as follows. Double
click the icon to run the program.
The Weidmueller Switch Configuration Utility window will open, as shown.
Broadcast Search
Use the Broadcast Search utility to search the LAN for all Weidmueller managed Switches that are
connected to the LAN. Note that since the search is done by MAC address, Broadcast Search will
not be able to locate devicess connected outside the PC host’s LAN. Start by clicking the Broadcast
