4. Assembly
If the modules are supplied complete on a LIFE-BASE
or LIFE-BASE Mini carrying platform, they are
operational and you need not perform any further
assembly.

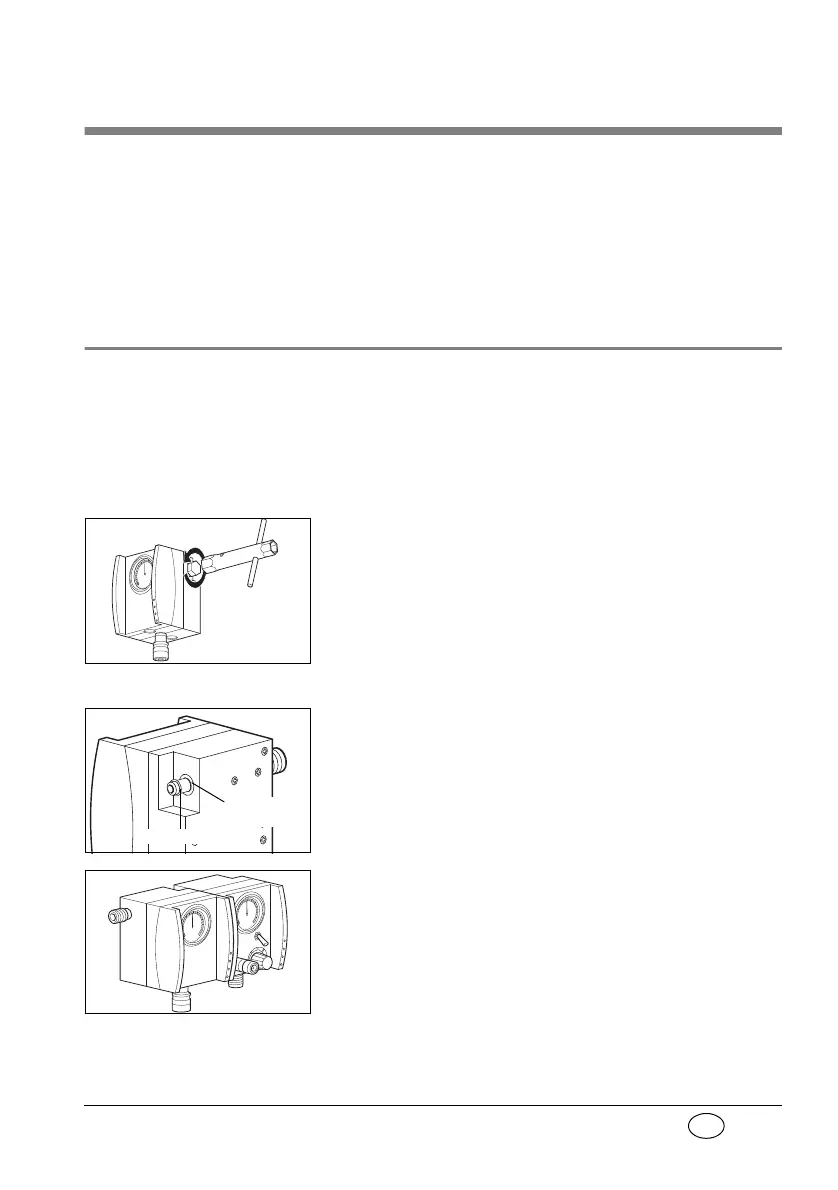

4.1 Assembling the modules
Connecting
1. Release the connection to the oxygen supply
(see “Removing an empty cylinder” on
page 15).
2. Unscrew the cover of the oxygen outlet from the
module.
If you screw the cover back on later, tighten it
just hand-tight to prevent damage to the
housing.
3. Push the protective ring supplied over oxygen
outlet
3. The protective ring prevents dirt
penetrating the housing.
4. Plug the modules together.
The seal is made by the O-ring.
Protective
ring
O–ring
