Weinmann Module System - External Oxygen Output

Technical data 61
EN

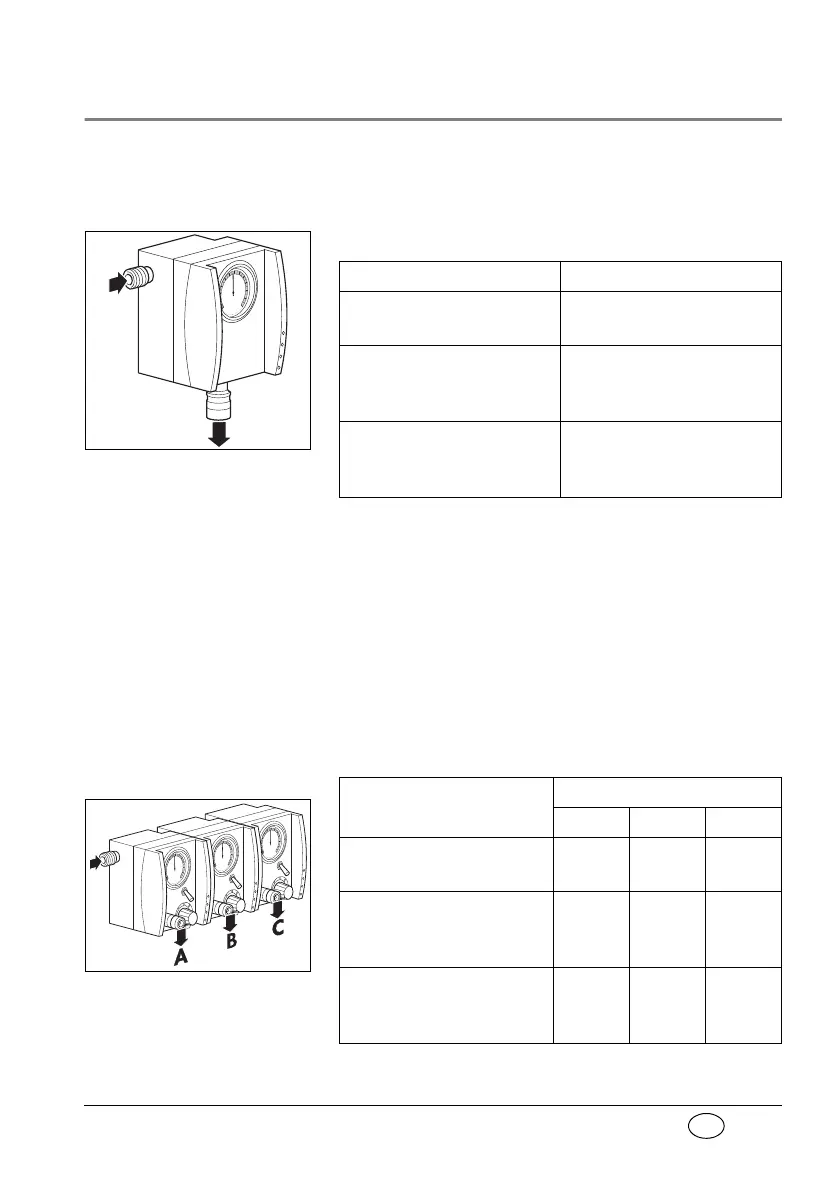

16.2 External oxygen output
The following outputs apply to oxygen output for
other devices.
Interface MODULE
Several modules
If several modules are switched in series, output falls
the further the relevant module is from the oxygen
feed. This is due to the increased flow resistance
when oxygen is passed through several modules.
The values quoted relate to the fact that oxygen is
only output by one module at a time.
Inlet Oxygen output
2.7 bar dynamic back
pressure at 80 l/min
min. 70 l/min
of WEINMANN Emergency
pressure reducer
WM 1102/106
min. 100 l/min
of WEINMANN Emergency
pressure reducer
WM 30301
min. 90 l/min
Inlet
Oxygen output
ABC
2.7 bar dynamic back
pressure at 80 l/min
min.
76 l/min
min.
73 l/min
min.
70 l/min
of WEINMANN Emergency
pressure reducer
WM 1102/106
min.
100 l/
min
min.
95 l/min
min.
90 l/min
of WEINMANN Emergency
pressure reducer
WM 30301
min.
91 l/min
min.
88 l/min
min.
85 l/min
